Truvativ 2 chainring crank set up 1X 9 ?

PB Forum :: Downhill
Truvativ 2 chainring crank set up 1X 9 ?
  • Previous Page
Author Message
flag cmc4130
Posted: Feb 6, 2013 at 14:02 Quote
I am building a 2011 Transition Double. I was intending to make it 1x9. A friend of mine told me the Truvativ Hissfelt/Holzfeller DH cranks with two rings is fine because you just take off the small ring. My friend at the bike shop just told me however that the spacing will be off for the chainguide.

My background is Bmx and ss DJ bikes, and this is actually my first good geared bike, so I'm not familiar with chain guide / chain ring issues. Anyone have experience with this ?
flag cmc4130
Posted: Mar 13, 2013 at 9:29 Quote
?

Unsecure image, only https images allowed: http://www.roadbikes.de/media/Truvativ_Holzfeller_RG.jpg
Unsecure image, only https images allowed: http://www.bike24.com/i/p/2/7/29672_01_d.jpg
Unsecure image, only https images allowed: http://www.sicklines.com/review/ecd/mongoose_ec-d_crankss.jpg
Unsecure image, only https images allowed: http://www.transitionbikes.com/2013/images/Bikes_Double_Pic1.jpg
flag cmc4130
Posted: Mar 13, 2013 at 13:08 Quote
Can someone tell me if this setup would suck? Why no chainguide ?!

flag ndubl8
Posted: Mar 19, 2013 at 13:08 Quote
i'm in a similar position, looking to change my current 3x9 trail bike into a 1x10. for chain guide alignment, couldn't you just use washers between the guide and frame to push it out to a point where it aligned with the chain? haven't done it but i don't see why it couldn't work well.
flag cmc4130
Posted: Mar 19, 2013 at 19:24 Quote
so . . . i took these cranks back. they were recommended as a light but strong crankset, (FSA) but they were just way too flexy. i could literally lean my weight down on my left pedal and watch the crank flex inwards. after riding years of chromoly bmx cranks with chromoly spindles, these just were too cheesy.

note how this particular chainguide works.

Unsecure image, only https images allowed: http://i255.photobucket.com/albums/hh138/upsetbmx/FSAcrankwithMRPchainguide_zps81f83f41.jpg
now i'm back with Holzfellers. like i said, these were the two-ring version, but i just want to use the larger ring. i took the small ring off. i was told i might need to grind down the posts for the small ring.... haven't quite decided that yet. and i think i need another roller for the top.... although it's possible just one tensioner on the bottom will work. . i guess i'll find out .... i could take the bash-ring off, but i kinda like the mid-school look of it... i doubt i'll be hitting rocks or logs with it, but who knows.....
Unsecure image, only https images allowed: http://i255.photobucket.com/albums/hh138/upsetbmx/Holz1_zpse7761b7b.jpg
Unsecure image, only https images allowed: http://i255.photobucket.com/albums/hh138/upsetbmx/Holzfeller3_zpsa58f4399.jpg


Unsecure image, only https images allowed: http://i255.photobucket.com/albums/hh138/upsetbmx/Holzfeller2_zps1d26ed03.jpg
flag cmc4130
Posted: Mar 26, 2013 at 22:10 Quote
so . . . . not that anyone cares . . . HAH! but there's severe alignment problem with this setup. (trying to adapt 2-ring truvativ holzfeller crankset to a 1X9 with MRP chainguide setup)

Unsecure image, only https images allowed: http://i255.photobucket.com/albums/hh138/upsetbmx/Truvativ_Holzfeller_2ring_withMRPchainguide_zps1768df85.jpg
flag macross87
Posted: Mar 29, 2013 at 2:20 Quote
Keep us posted. I'm looking to change my XT 3 ring crank to a single. I've been using it as a double with a bash currently. No issues with a lower tensioner only (blackspire) at this time.
flag nidgeslash9
Posted: Mar 29, 2013 at 3:13 Quote
If it helps, i just changed from 2 x 10 to 1 x 10. All i did was take off the chain rings, put a smaller one on the outside leaving the space for the inner chain ring empty. Then i changed the chain guide and it's all worked perfectly.
flag cmc4130
Posted: Apr 7, 2013 at 16:49 Quote
well, I got it figured out. someone on the other forum mentioned bolting the chainring to the back of the spider tabs instead of the front. it hadn't occurred to me the cranks were designed to be able to do this. but this solved the issue. I didn't have to grind down anything. 2-ring holzfeller cranks set up as 1 X 9.
Unsecure image, only https images allowed: http://i255.photobucket.com/albums/hh138/upsetbmx/004_truvativ_holzfeller_zps8bf47a74.jpgUnsecure image, only https images allowed: http://i255.photobucket.com/albums/hh138/upsetbmx/003-3_zpsbf85bc88.jpg
Unsecure image, only https images allowed: http://i255.photobucket.com/albums/hh138/upsetbmx/002_truvativholzfeller_zps5c371387.jpg
flag macross87
Posted: Apr 7, 2013 at 19:48 Quote
Good to hear! How's it riding?
flag cmc4130
Posted: Apr 9, 2013 at 1:23 Quote
macross87 wrote:
Good to hear! How's it riding?

Awesome. The Transition Double is an incredible bike.
flag Joebohobo
FL
Posted: Dec 31, 2013 at 5:33 Quote
cmc4130 wrote:
Can someone tell me if this setup would suck? Why no chainguide ?!


No chain guide on slope bikes is normally because during each run they don't actually change gears so not much chance of the chain coming off
flag cmc4130
Posted: Jan 2, 2014 at 15:39 Quote
Joebohobo wrote:
cmc4130 wrote:
Can someone tell me if this setup would suck? Why no chainguide ?!


No chain guide on slope bikes is normally because during each run they don't actually change gears so not much chance of the chain coming off

I saw a lot of guys at Colorado Freeride Festival slopestyle contest riding singlespeed also....
flag Dirtlines
Posted: Jul 28, 2014 at 23:30 Quote
cmc4130 wrote:
I am building a 2011 Transition Double. I was intending to make it 1x9. A friend of mine told me the Truvativ Hissfelt/Holzfeller DH cranks with two rings is fine because you just take off the small ring. My friend at the bike shop just told me however that the spacing will be off for the chainguide.

My background is Bmx and ss DJ bikes, and this is actually my first good geared bike, so I'm not familiar with chain guide / chain ring issues. Anyone have experience with this ?

Im doing the same thing with taking the small ring off of the truvativ holzfeller crankset. How does it affect the chainline.
flag Murphyslaw
Posted: Jul 29, 2014 at 19:23 Quote

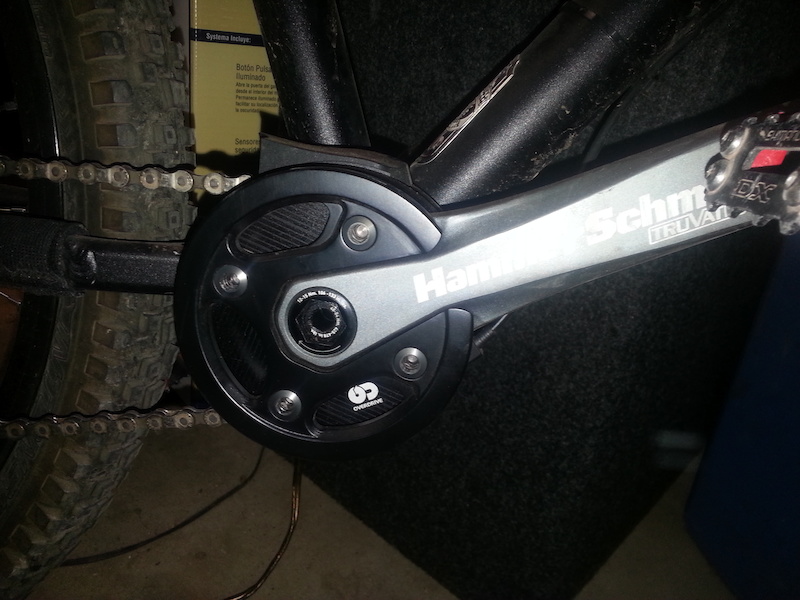

hammerschmidt one gear 2 speed .shift while coasting backpedaling.
