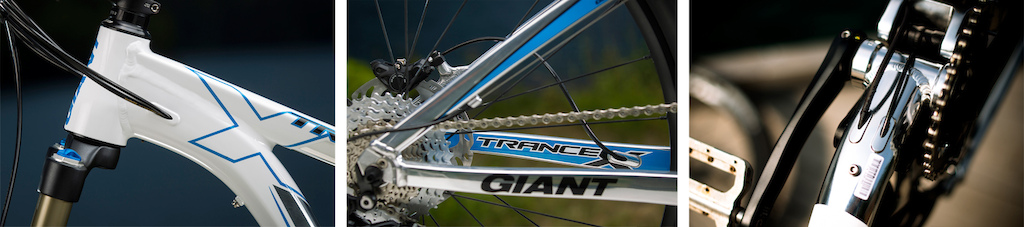

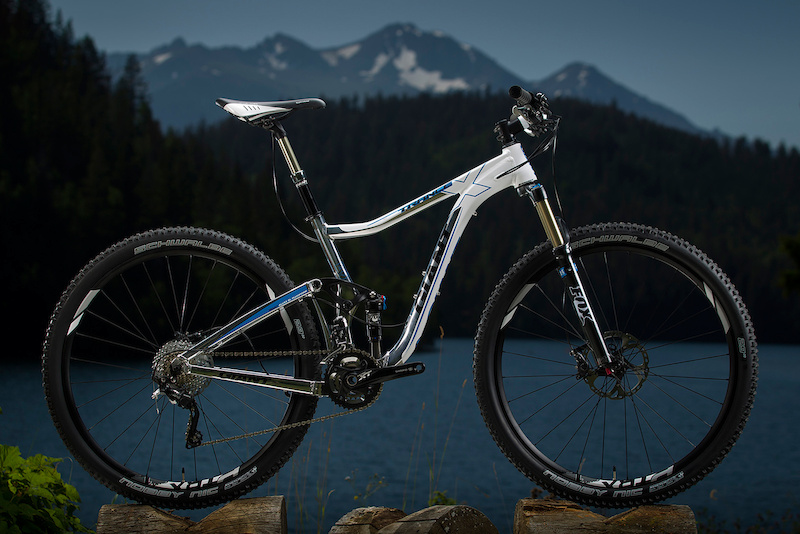

Trance X 29er 0 Details • 29" Giant P-TRX29er wheelset • ALUXX SL aluminum frameset • 120mm Maestro suspension • Fox Float CTD air shocks • Overdrive 2 tapered fork steerer • Shimano XT 2x10 drivetrain • Shimano XT hydraulic disc brakes • Giant P-TRX 29er 1 wheel system • Giant 100mm dropper post w/ remote • Full internal cable routing • Weight: 28.2 pounds (w/o pedals ) • Sizes: XS, S, M, L (tested), XL • MSRP: $4,250 USD | A Feature-Rich Frame Trance X 29 has a highly integrated feature set, the most obvious of which is the fully integrated cable routing, which includes the rear brake line and dropper seatpost cable. Trance X 29's Overdrive 2 headtube utilizes taper-steerer technology, but takes it one step further with a standard 1.5" bearing in the bottom, and 1-1/4" upper bearing interface and stem, for enhanced steering stiffness. Giant's massive rectangular Megadrive downtube joins the oversized Powercore 86mm bottom bracket shell to further enhance torsional stiffness. Giant employs their proven Maestro suspension platform into the Trance X 29er for a true 5" travel frame. In order to get the sharp handling prowess and flickability Giant was looking for with the 29" wheel, they developed a single-spar swingarm and stepped seat tube that tucks the rear wheel tighter under the rider. The drastic seat tube angle is mostly an optical illusion, as the effective angle is 73 degrees. Chainstay length is 17.8", 10mm shorter than Giant's Anthem X 29er. A 69 degree head angle promises climbing agility mixed with stability and control. Frame weight is 2,670 grams (5.89 lbs) for a size medium with shock and hardware. |
![]() |

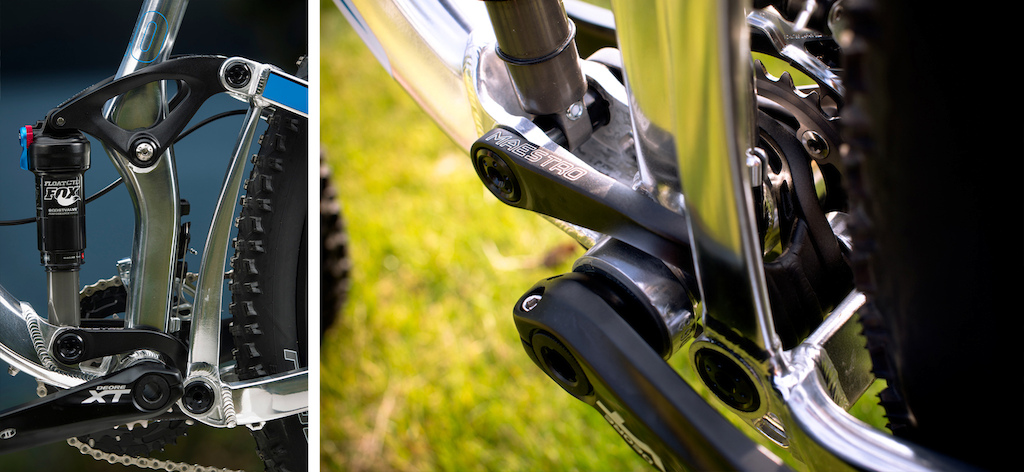

The key to getting optimal rear wheel clearance on the Trance X 29" is a stepped seat tube and single-spar swingarm. Only one side of the swingarm connects chainstay to seatstay. |
![]() |

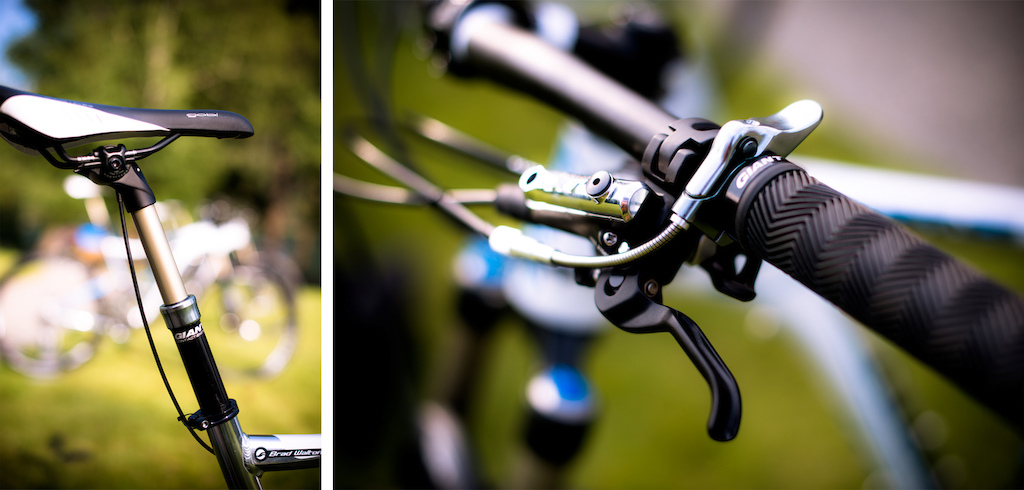

Giant's 100mm 'Contact Switch' dropper post uses a contaminant-free cartridge system and cable actuated remote. The remote is a bit ergonomically awkward to actuate, but the post's action is smooth. |
![]() |

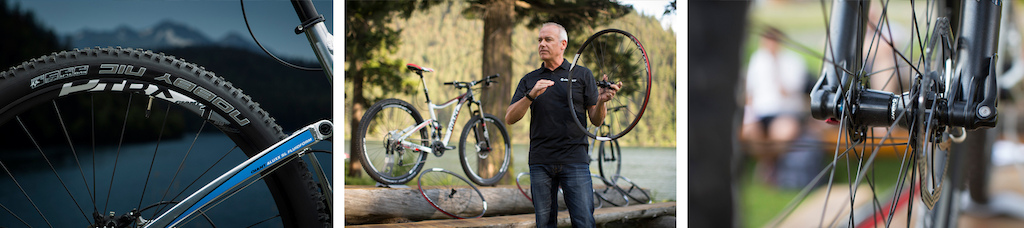

Giant's new line of stiff, light, handbuilt 29" wheels offer tubeless compatibility, 28-spoke lacing, precision sealed bearings, DT Swiss ratchet driver hub internals, and include a 2-year warranty. |
![]() |
Of course a shuttle isn't necessary, but who would turn down this kind of access? Sterling Lorence photos |
![]() |
Enduro race phenom Adam Craig is more walk than talk. Already having won races aboard the Trance X 29er, Craig enjoys some casual backcountry product testing. Sterling Lorence photos |
![]() | We wanted to make a fun to ride twenty-niner. - Adam Craig, Giant pro enduro racer |
