Random Products Part Two - Interbike 2012

Sep 19, 2012 at 3:00

Sep 19, 2012

by Tyler Maine

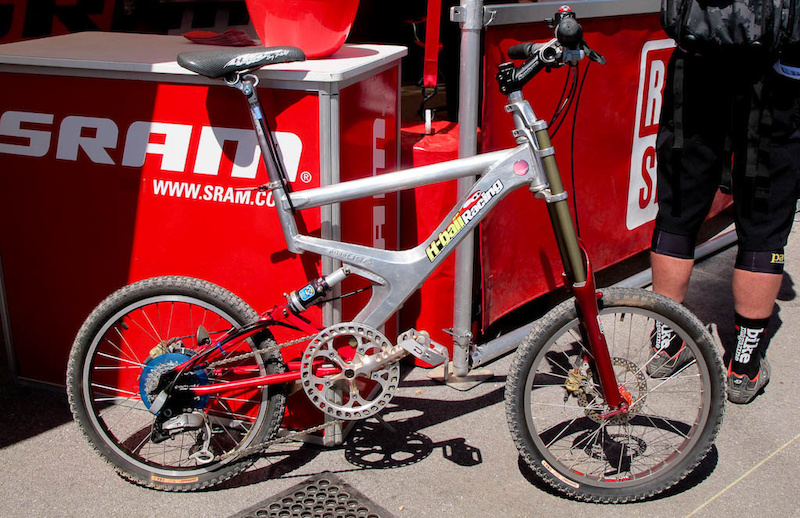

This amazing contraption is the result of HB having too much time on his hands at his ranch in Colorado - so much history on this set up.

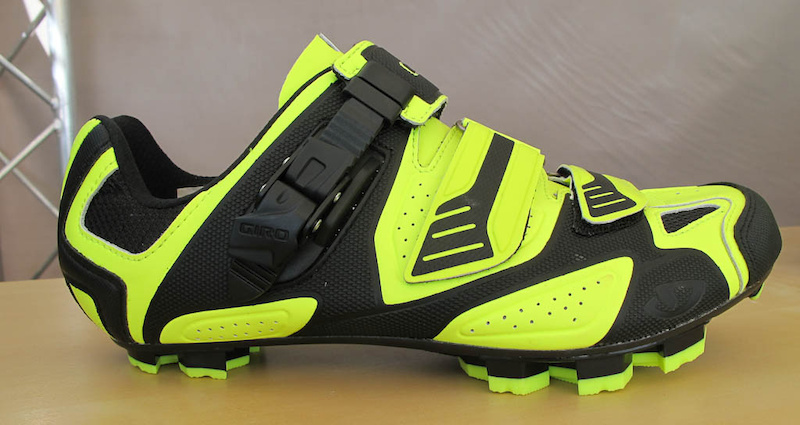

The Giro Code shoe caught my eye because of its High Vis colors once I asked more about the shoes I learned that it s Giro s high end XC shoe featuring an EC90 carbon shank three strap closure toe spikes and rubber soles and retails for 290 USD

The Giro Code shoe caught my eye because of its high vis colors. The $290 USD Code is Giro’s high-end XC shoe, featuring an EC90 carbon shank, three strap closures, toe spikes and rubber soles.

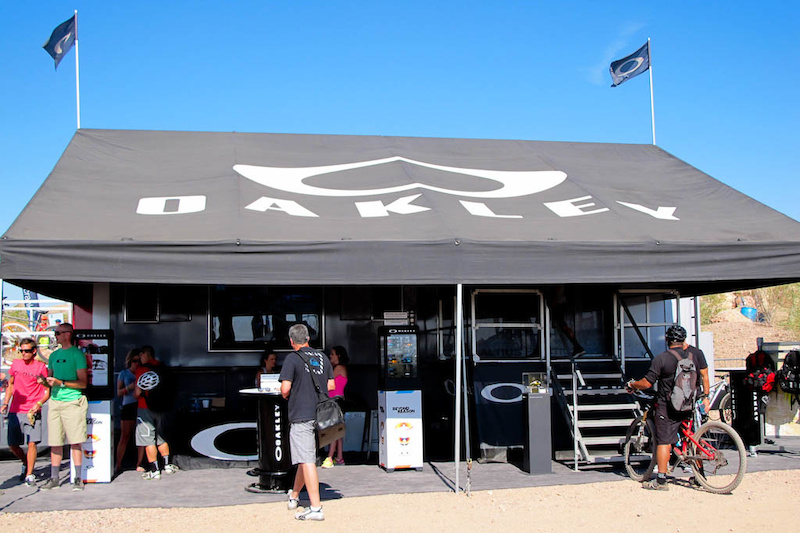

Oakley's rolling booth travels around the country to various events promoting better optics for everyone.

LIving on the road - Projekt Roam s house on wheels.

Speaking of rolling around the country, Projekt Roam is the home to Jesse and Colt Maule as they travel around North America documenting riding areas.

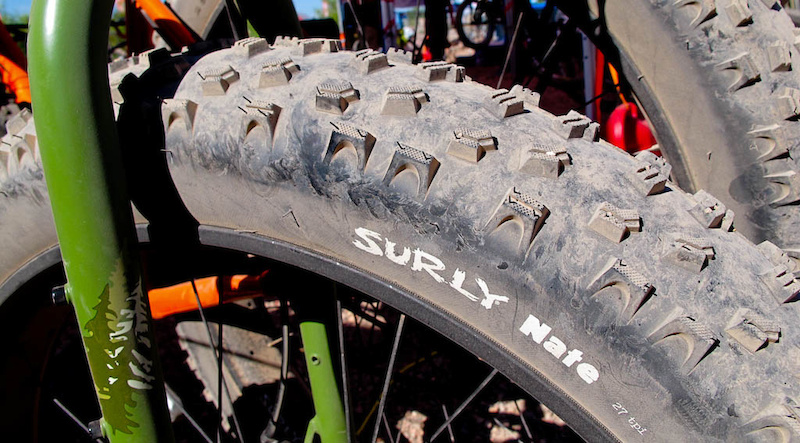

Surly s Surly Nate 26.4.0 tire is the baddest looking rubber I ve seen in a while.

Surly's Surly Nate 26 x 4.0 tire is the baddest looking rubber I've seen in a while.

When I think about Fat Bikes, Surly always comes to mind, but it looks like the guys up in Alaska have been busy making some big tired machines as well. If big tires are your thing, check them out at 9zero7bikes.com

45NRTH is another company that is all about cold weather and fat tires (they make a studded tire that is 26 x 4.0 in size), but it was their low-profile pedal that caught my eye.

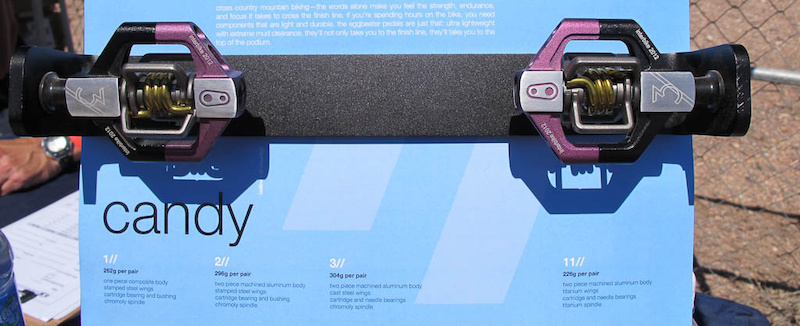

Crankbros makes limited edition pedals for the Outdoor demo each year for riders to try out and purchase.

KHS had their 650B DH Prototype at the booth showing that they are giving the medium wheel size a chance on the gravity scene.

KHS had their 650B DH Prototype at the booth. KHS was a first-adopter of the mid-sized wheel and now expands their expertise to the gravity scene. The industry will surely be watching when it hits production.

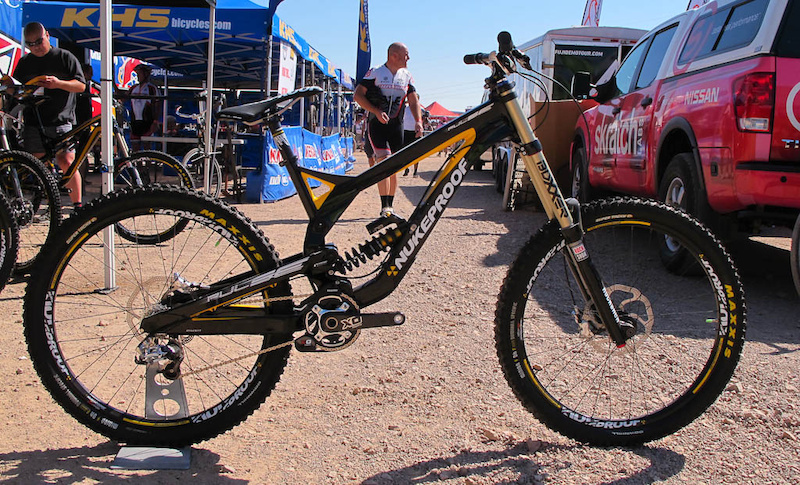

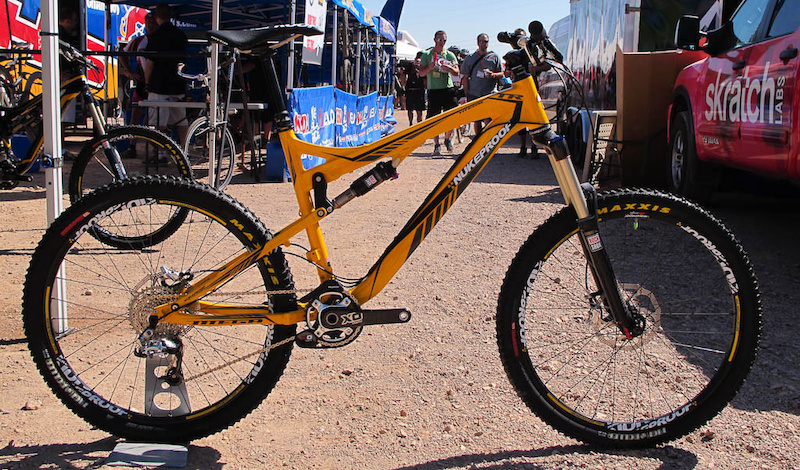

Nuke Proof Pulse Mega TR and AM bikes. The Pulse is the full fledged DH offering and the Megas are for the folks that like to earn their climbs. The TR is 130mm rear with a 150 fork while the AM is 160mm front and rear travel. Hotlines-UK.com is the UK distributor and they are here looking to set up new dealers in Canada and the USA.

The Nuke Proof Mega TR is aimed at the Trail, Enduro and AM riders. The TR is built around a 130-millimeter-travel frame and a 150mm-travel fork.

The Nuke Proof Pulse is their full fledged DH offering. Good news for North American riders is that the UK brand is expanding its dealer network throughout Canada and the USA.

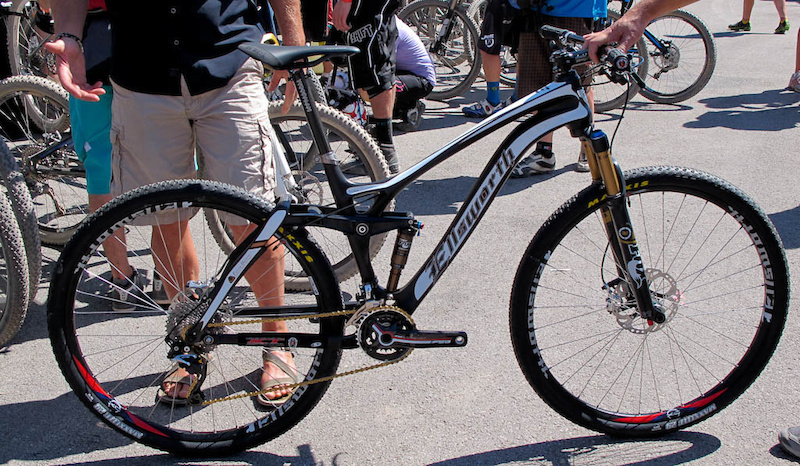

Ellsworth s Carbon Evolve 100mm F amp R travel 29er XC race bike.

Ellsworth's Carbon Evolve is their 29er XC race bike, with 100 millimeters of front and rear travel.

LG1 Race and TRS Dual Race carbon guides in pre-production stages - the goal for this project is to create guides that are 70 the weight and 130 the strength of current LG1 guides.

The e13 LG1 Race and TRS Dual Race carbon guides in pre-production stages - the goal for this project is to create guides that are 70-percent the weight and 130-percent the strength of current LG1+ guides.

e13 LG1R (Race) cranks, 36T ring and LG1+ 36 Guide were looking fast just on display. This is the same set up that the United Morewood team runs.

We are now stepping out of the sun and into the Sands Convention Center for the next 3 days, see ya there.
