New Manitou Fork and Sun Ringle Carbon Wheelset - Taipei Cycle Show 2011

Mar 16, 2011 at 0:08

Mar 16, 2011

by Mike Levy

Manitou debuts their QR15 HexLock axle equipped Marvel trail fork inside, and you can also check out Sun Ringle's brand new Carbon SRD wheels.

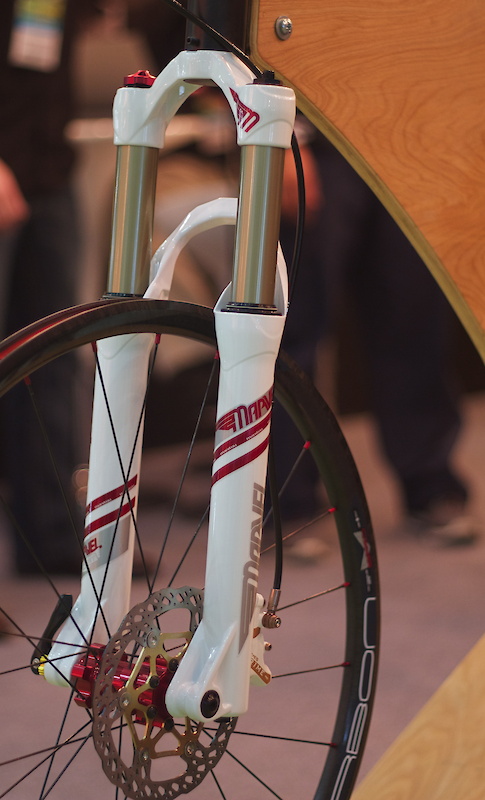

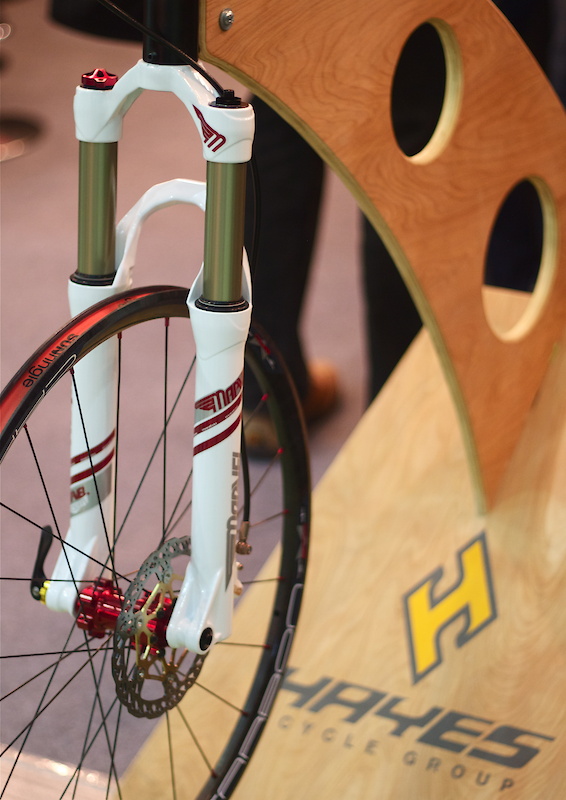

2012 sees Manitou make the leap to a 15mm thru-axle on their Marvel trail/XC fork, although one can only assume that it is just a matter of time until we see it on other models that currently use 9mm QR dropouts.

Manitou have adapted their proven HexLock axle system - the axle has a hex shape in the clamping zones as opposed to being round - to the 15mm standard, incorporating a quick release lever into the design. There are updates to the 2012 Marvel Pro hidden inside as well, with the fork using their new Iso Air design that is said to be more compliant than other air sprung systems, especially at the top of the travel - the achilles heel of many air springs. The fork uses TPC+ internals to control damping. The Marvel is available in two travel options; 100mm and 120mm, and you can choose between black or white lowers.

Manitou Marvel Pro details:

• 100mm/120mm of travel
• Iso Air spring
• TPC+ Damper
• Adjustments: air pressure, compression to lockout, rebound
• QR15 HexLock thru-axle
• Tapered steerer tube
• 3.3lbs (100mm travel w/ QR15 HexLock axle)

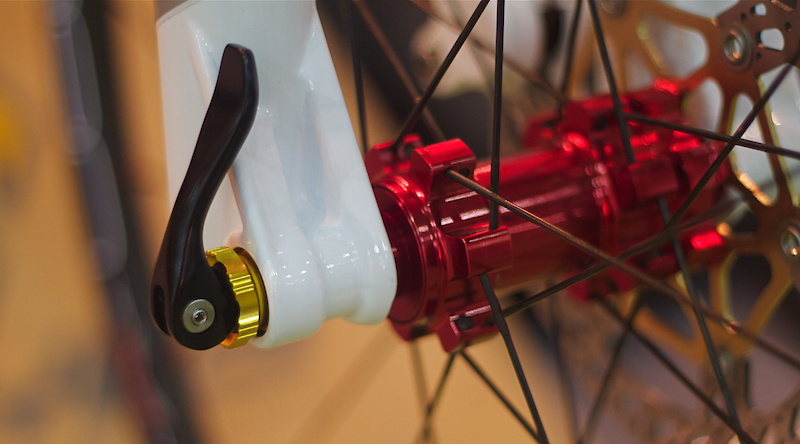

Manitou's QR15 HexLock thru-axle uses a 90 degree quick release lever to disengage the axle from the lowers. The gold dial adjusts the tension once the QR lever is tightened down. Adjust it once and it is set from then on in.

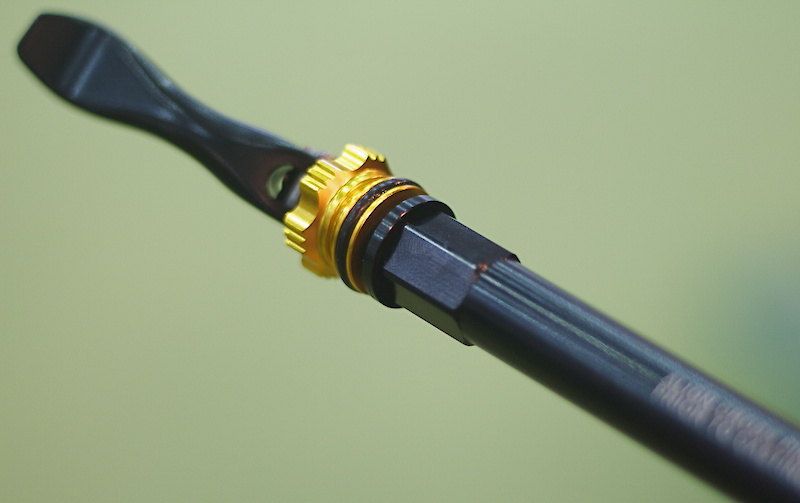

In this photo you can clearly see the hex shaped clamping zone of the QR15 HexLock axle. The opposite side features the same shape as well, and is said to better resist twisting motions than a traditional round axle.

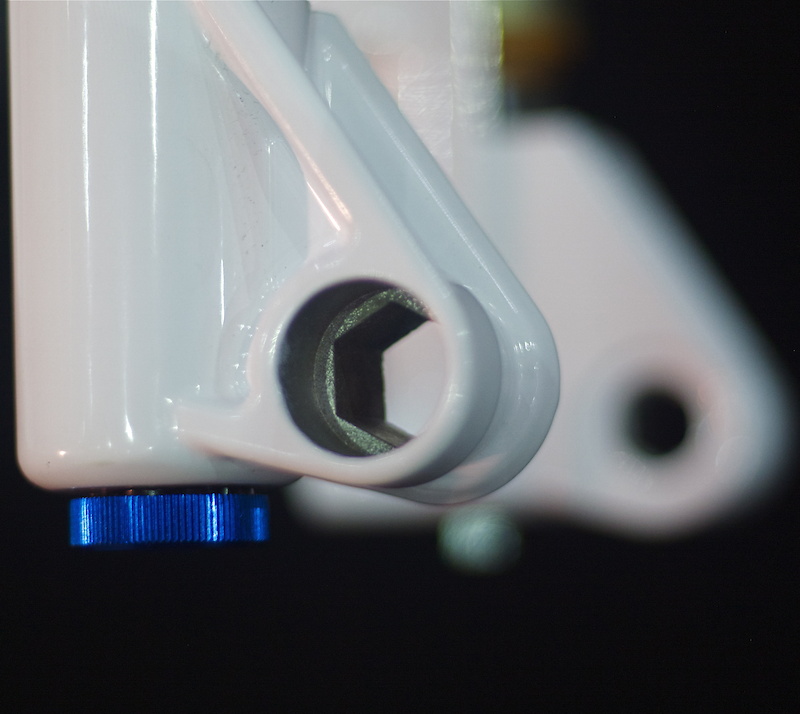

The recessed dropouts on the Marvel are shaped so that the tension adjustment - the gold anodized aluminum dial assembly on the axle - sits mostly inside the lowers, with only the dial itself exposed. The opposite side uses threaded insert for the axle to tighten into that is also replaceable if damaged.

Sun Ringle Carbon SRD trail bike wheels

Sun Ringle also showed Pinkbike their new Carbon SRD trail bike wheels are sure to have many riders drooling. The non-tubeless rims are 26mm wide, perfect for the high volume 2.35 inch tires that many trail riders use, and are strung together with straight pull double butted Wheelsmith spokes (24 per wheel) and anodized red aluminum nipples. Total claimed weight is 1555 grams, although the goal is also to be much stiffer than aluminum rimmed options that also approach the weight.

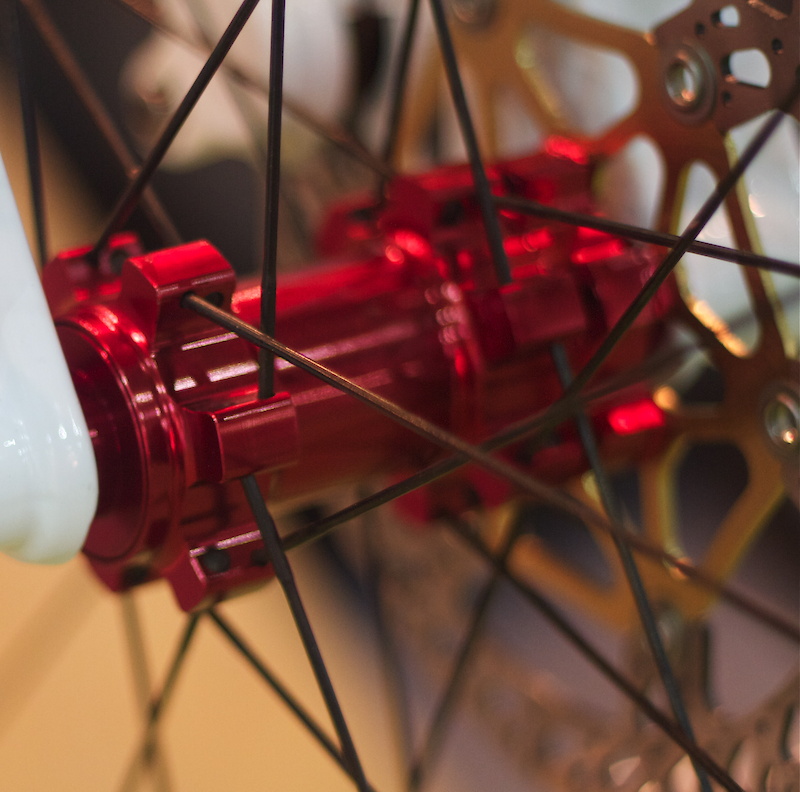

There are plenty of hub options for the new Carbon SRD wheels, including 9mm/15mm/20mm front and 9mm/12x135mm/12x142mm rear options.

Sun Ringle Carbon SRD details:

• Carbon 26mm wide rims
• 24 straight pull spokes per wheel
• Sealed bearings
• Front hub options: 9mm QR/15mm/20mm
• Rear hub options: 9mm QR/12x135mm/12x142mm

Check out the Manitou website to see their entire lineup.

Stay tuned for many more updates from the 2011 Taipei Cycle Show
