Tech Tuesday - Repairing A Torn Tire

May 24, 2011 at 0:05
May 24, 2011
by Mike Levy

You must login to Pinkbike.
Don't have an account? Sign up

Join Pinkbike  Login



Not only will a torn sidewall quickly put an end to the day's riding, it will will also cost you money. This can be especially painful when the damaged tire still has quite a bit of life left in it, or even worse, is practically brand new. While some cuts will be fatal depending on their size and location, there still may be hope for that freshly gashed tire of yours.


What you'll need:

• High strength glue that works with rubber
• Fine grit sandpaper
• Cable cutters or scissors
• An old tire that you don't mind cutting up


Helpful pointers:

• Using the correct glue for the job is the single most important point. Be sure that your glue is designed to work with rubber - many are not. Follow the instructions carefully and allow the glue to dry for the specified time.
• Take a minute after sanding the inner wall of the tire and the patch to clean away any rubber dust that may have accumulated.
• Large cuts and tears in the sidewall will not be repairable due to too many of the casing's threads being cut. No matter how big you make the patch you'll likely find that a large bulge will appear in the damaged area once the tire has been pumped up to operating pressure. This is not safe - do not ride it!
• I say it in the video and I'll say it again here: Do not try to use a tube patch or any other stretchy material to repair the hole. It will simply stretch, come out of the hole, and you'll end up with yet another flat. You're using tire casing because it is far less elastic.

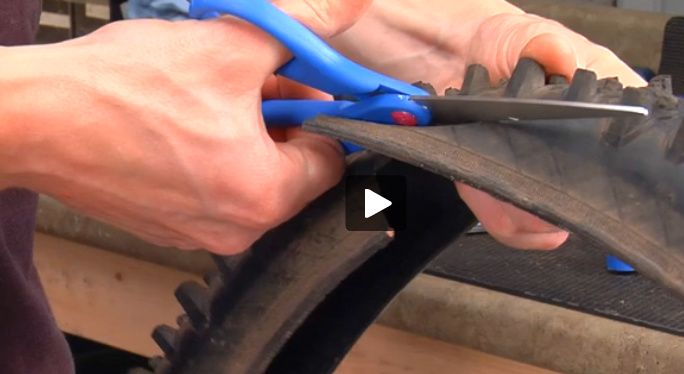

How to patch a torn sidewall:

Views: 36,623    Faves: 52    Comments: 4





Past Tech Tuesdays:

Technical Tuesday #1 - How to change a tube.
Technical Tuesday #2 - How to set up your SRAM rear derailleur
Technical Tuesday #3 - How to remove and install pedals
Technical Tuesday #4 - How To Bleed Your Avid Elixir Brakes
Technical Tuesday #5 - How To Check And Adjust Your Headset
Technical Tuesday #6 - How To Fix A Broken Chain
Technical Tuesday #7 - Tubeless Conversion
Technical Tuesday #8 - Chain Wear
Technical Tuesday #9 - SRAM Shift Cable Replacement
Technical Tuesday #10 - Removing And Installing a Headset
Technical Tuesday #11 - Chain Lube Explained
Technical Tuesday #12 - RockShox Totem and Lyric Mission Control Damper Mod
Technical Tuesday #13 - Shimano XT Crank and Bottom Bracket Installation
Technical Tuesday #14 - Straightening Your Derailleur Hanger
Technical Tuesday #15 - Setting Up Your Front Derailleur
Technical Tuesday #16 - Setting Up Your Cockpit
Technical Tuesday #17 - Suspension Basics
Technical Tuesday #18 - Adjusting The Fox DHX 5.0
Technical Tuesday #19 - Adjusting The RockShox BoXXer World Cup
Technical Tuesday #20 - Servicing Your Fox Float Shock
Technical Tuesday #21 - Wheel Truing Basics
Technical Tuesday #22 - Shimano Brake Pad Replacement
Technical Tuesday #23 - Shimano brake bleed
Technical Tuesday #24 - Fox Lower Leg Removal And Service
Technical Tuesday #25 - RockShox Motion Control Service
Technical Tuesday #26 - Avid BB7 Cable Disk Brake Setup
Technical Tuesday #27 - Manitou Dorado Fork Rebuild
Technical Tuesday #28 - Manitou Circus Fork Rebuild
Technical Tuesday #29 - MRP G2 SL Chain Guide Install
Technical Tuesday #30 - Cane Creek Angleset Installation
Technical Tuesday #31 - RockShox Maxle Lite DH
Technical Tuesday #32 - Find Your Tire Pressure Sweet Spot
Technical Tuesday #33 - Three Minute Bike Preflight Check
Technical Tuesday #34 - MRP XCG Install
Technical Tuesday #35 - Stem Choice and Cockpit Setup
Technical Tuesday #36 - Handlebars - How Wide Affects Your Ride

Visit Parktool.com to see their entire lineup of tools and lubes.


Heading out to the garage to patch some cut rubber? Do you have a tip of your own that you'd like to share? Put it down below!
