Mavic CrossMax SX - Beauty meets Burly.
Jun 23, 2009
Mavic has been in the wheel game for a while now. Everything from XC, to Enduro, to DH wheels have been manufactured in Mavic's factory, and they all seem to include some pretty cool technologies. Recently we picked up a pair of the Mavic CrossMax SX wheels. They feature some previous, along with some new technologies from Mavic that make them a unique wheelset.
Read on for more information...
Read on for more information...
The CrossMax SX wheels are some of the flashiest I've seen to date, but that is a Mavic trademark if you think back to the original Yellow and Black DeeMax when they hit the scene years ago. Attention to detail and graphics is a Mavic trait, and the CrossMax SX follows that trait to a T.
Weighing in at 1755 grams for the pair, the CrossMax SX wheels feature a chemical anodization process Mavic calls CD. CD is a process that forms a micro-hardness on the surface of the rim, which slows down the wearing application of breaking, improves the characteristics of the aluminum alloy application and the rims last longer, and makes the wheel easier to build and true. With a 21mm internal width the CrossMax SX wheel was designed to run a 2.0" - 2.5" tires. The rim has also been shot-peened, and anodized Grey for a dull, durable finish. The CrossMax SX wheels feature a white decal job, with some fancy swirls, and nice logo detail.

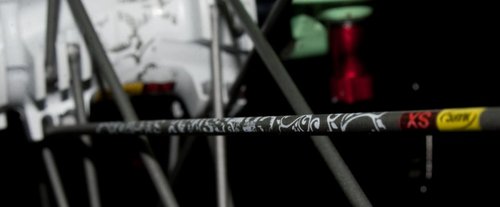

Not only does Mavic use some unique technologies on the hoop, but the spokes and nipples are pretty fancy to. Laced with 24 grey spokes in the front and the rear, which are made out of Zicral, the CrossMax SX wheels are designed to be light, and minimalistic. For those of you who don't know, Zicral is a manufactured form of 7075 Aluminum. The spokes are straight pull, round, and lace directly into the rim. During the manufacturing process the CrossMax SX hoop is machined with "chimneys" for the M7 nipples to go into. Basically, Mavic forges a hole in the rim, then threads it, and puts one of their massive nipples in it. This process is referred to as FORE. It allows Mavic to build a stiffer wheel, which provides better power transmission. The rim has better fatigue resistance (Mavic claims 4 times stronger), and seeing as it's part of the rim's hollow portion, it makes the CrossMax SX tubeless ready.
The hubs on the CrossMax SX are machined out of aluminum to fit a 135x10, and 20x110mm sizing. Mavic uses the ITS4 system(instant transfer system 4), this consists of 4 pawls, working 2 by 2 in order, and each pawl has its own spring. This side by side pawl placement makes for a really responsive drive mechanism, while the separate spring for each pawl reduces the risk of failure. The hubs use QRM+ bearings which are sealed cartridge bearings, but with high precision adjustment rings. This allows you, the user, to tighten any play in your bearings extremely easily, and adjust bearing tension by using the provided tool.
On the trail we were very pleased with the CrossMax SX wheels. They did show signs of a little drag when we originally mounted them up, but after the first ride they were worn in, and ready to plow! Once worn in, the CrossMax SX wheels seem to have very little rolling resistance and spin forever.
The overall "wear" on these wheels was a bit noticeable near the end of our test. We had beat the CrossMax SX wheels pretty hard on some different terrains and even bogged them in the wet and cooked them in the dry. At the end of our test, a small amount of lateral play in the rear wheel was present. This could be caused by a couple things. The two main ones that come to mind are the adapters for the axle were loose, or the bearings were loose. The bearings are adjustable using the provided wrench, however, if the adapters were bent or warped that could cause possible future issues. We weren't able to determine the final issue before the wheels had to go back. All the spoke tensions remained tight, and the rim still rolled true while being boxed up for their trip home.
All in all our riding experience on the CrossMax SX wheels was awesome. They have their own unique sound, thanks to the ITS4 engagement system. Not only did they perform up to snuff, but they look super hot, and have a great durable finish. At the end of our time spent riding the wheels, we're happy to say that the rims remained dent free, which I think is a success in itself.
We never ran the CrossMax SX wheels and tires as a tubeless combo as we never had a set of UST tires here at the office. But in 5 weeks of riding we only suffered one flat tire and it wasn't the hardest tube to change despite the UST bead on the rim.
The CrossMax SX wheels break down to 825 grams for the front, and 930 grams for the rear. They come in International Standard Disc mount, and Center-Lock. Mavic also has adapters for the front wheel so that you can swap it from a 20mm thru axle down to a regular QR axle. This is something that many wheel companies are doing and we're not complaining! It's one less wheel set we have to purchase.
You can get your hands on some Mavic CrossMax SX wheels by visiting your local shop and have them contact the distributor in your country. Check out www.Mavic.com for more information.
In Canada, Mavic is distributed by Outdoor Gear Canada.
Weighing in at 1755 grams for the pair, the CrossMax SX wheels feature a chemical anodization process Mavic calls CD. CD is a process that forms a micro-hardness on the surface of the rim, which slows down the wearing application of breaking, improves the characteristics of the aluminum alloy application and the rims last longer, and makes the wheel easier to build and true. With a 21mm internal width the CrossMax SX wheel was designed to run a 2.0" - 2.5" tires. The rim has also been shot-peened, and anodized Grey for a dull, durable finish. The CrossMax SX wheels feature a white decal job, with some fancy swirls, and nice logo detail.
Not only does Mavic use some unique technologies on the hoop, but the spokes and nipples are pretty fancy to. Laced with 24 grey spokes in the front and the rear, which are made out of Zicral, the CrossMax SX wheels are designed to be light, and minimalistic. For those of you who don't know, Zicral is a manufactured form of 7075 Aluminum. The spokes are straight pull, round, and lace directly into the rim. During the manufacturing process the CrossMax SX hoop is machined with "chimneys" for the M7 nipples to go into. Basically, Mavic forges a hole in the rim, then threads it, and puts one of their massive nipples in it. This process is referred to as FORE. It allows Mavic to build a stiffer wheel, which provides better power transmission. The rim has better fatigue resistance (Mavic claims 4 times stronger), and seeing as it's part of the rim's hollow portion, it makes the CrossMax SX tubeless ready.
The hubs on the CrossMax SX are machined out of aluminum to fit a 135x10, and 20x110mm sizing. Mavic uses the ITS4 system(instant transfer system 4), this consists of 4 pawls, working 2 by 2 in order, and each pawl has its own spring. This side by side pawl placement makes for a really responsive drive mechanism, while the separate spring for each pawl reduces the risk of failure. The hubs use QRM+ bearings which are sealed cartridge bearings, but with high precision adjustment rings. This allows you, the user, to tighten any play in your bearings extremely easily, and adjust bearing tension by using the provided tool.
 |  |  |  |
On the trail we were very pleased with the CrossMax SX wheels. They did show signs of a little drag when we originally mounted them up, but after the first ride they were worn in, and ready to plow! Once worn in, the CrossMax SX wheels seem to have very little rolling resistance and spin forever.
Spinning out of the corner
The overall "wear" on these wheels was a bit noticeable near the end of our test. We had beat the CrossMax SX wheels pretty hard on some different terrains and even bogged them in the wet and cooked them in the dry. At the end of our test, a small amount of lateral play in the rear wheel was present. This could be caused by a couple things. The two main ones that come to mind are the adapters for the axle were loose, or the bearings were loose. The bearings are adjustable using the provided wrench, however, if the adapters were bent or warped that could cause possible future issues. We weren't able to determine the final issue before the wheels had to go back. All the spoke tensions remained tight, and the rim still rolled true while being boxed up for their trip home.
All in all our riding experience on the CrossMax SX wheels was awesome. They have their own unique sound, thanks to the ITS4 engagement system. Not only did they perform up to snuff, but they look super hot, and have a great durable finish. At the end of our time spent riding the wheels, we're happy to say that the rims remained dent free, which I think is a success in itself.
Getting some drift on
We never ran the CrossMax SX wheels and tires as a tubeless combo as we never had a set of UST tires here at the office. But in 5 weeks of riding we only suffered one flat tire and it wasn't the hardest tube to change despite the UST bead on the rim.
Dropping in
| Specifications | ||
| Price | $899.9 | |
| Weight | Front: 825g. Rear: 930 g | |
| Color Options | Grey anodised | |
| Hub Dimensions | Front: 20mm x 110mm. Rear: 12mm x 135mm (9mm QR with adapter) | |
| Wheel diameter | 26" | |
| Riding Genre | Freeride | |
| Tire Rating | UST Tubeless & Tubetype. Recommended tire sizes: 2.0 - 2.5 | |
| Rim width | 21mm c (internal) | |
| Spoke Count | 24 | |
The CrossMax SX wheels break down to 825 grams for the front, and 930 grams for the rear. They come in International Standard Disc mount, and Center-Lock. Mavic also has adapters for the front wheel so that you can swap it from a 20mm thru axle down to a regular QR axle. This is something that many wheel companies are doing and we're not complaining! It's one less wheel set we have to purchase.
You can get your hands on some Mavic CrossMax SX wheels by visiting your local shop and have them contact the distributor in your country. Check out www.Mavic.com for more information.
In Canada, Mavic is distributed by Outdoor Gear Canada.
