33 Comments
1707124
- + 0
curt-cardin
(Jan 20, 2008 at 13:24)
how did you build that? do you have plans and how is it like to ride?
Basically I got 3' of 3" x 1/4" flat bar and cut it into 6 pcs 6" long, 1 pc 20mm round bar x 6" long, 2 pcs 1/2" thread bar, a bunch of 1/2" washers and nuts, 8 x 1" x 3/8 NC machine screws and locknuts, 1 x old bottom bracket with the axle removed, and old pair of DH skis, 2 x BMX pegs $18 at Canadian Tire. All material cost $60.
To cut the material I used a 10" cutoff disk in my mitre saw.
I ground the 1/2" threadbar down at the rear drop out so that it would fit but still be strong.
I ground a pair of 1/2" washers down to fit inside the BB cups where the BB removal tool goes to center the pegs.
I drilled and re-tapped the pegs to fit 1/2" NC thread bar and installed in the BB shell
the 20mm round bar is for the front fork.
I took 3 pcs of 3" x 1/4" flat bar and welded them together with the axles and drilled 4 holes in the bottom to bolt an old pair of skis to.
Found some old DH skis and cut them off at 30"
It was a lot of work but worth it.
To cut the material I used a 10" cutoff disk in my mitre saw.
I ground the 1/2" threadbar down at the rear drop out so that it would fit but still be strong.
I ground a pair of 1/2" washers down to fit inside the BB cups where the BB removal tool goes to center the pegs.
I drilled and re-tapped the pegs to fit 1/2" NC thread bar and installed in the BB shell
the 20mm round bar is for the front fork.
I took 3 pcs of 3" x 1/4" flat bar and welded them together with the axles and drilled 4 holes in the bottom to bolt an old pair of skis to.
Found some old DH skis and cut them off at 30"
It was a lot of work but worth it.
[Reply]
that is f*cking intence i want to do that next year soo bad..
but yeah how would you stop just carve or like plow on the side??
but yeah how would you stop just carve or like plow on the side??
[Reply]
[Reply]
[Reply]
Post A New Comment
Why was a comment deleted?
1. add additional on topic info to the article that other users will find useful
2. add props and support/encouragement for the video/photo/article/product/story
3. add and explain constructive criticism for the video/photo/article/product/story
1. add additional on topic info to the article that other users will find useful
2. add props and support/encouragement for the video/photo/article/product/story
3. add and explain constructive criticism for the video/photo/article/product/story
Sparwood, British Columbia, Canada
3222 views | 33 comments | 97 faves
Date: 2008-01-20
Trail: Ski Hill
Riders: Jeff

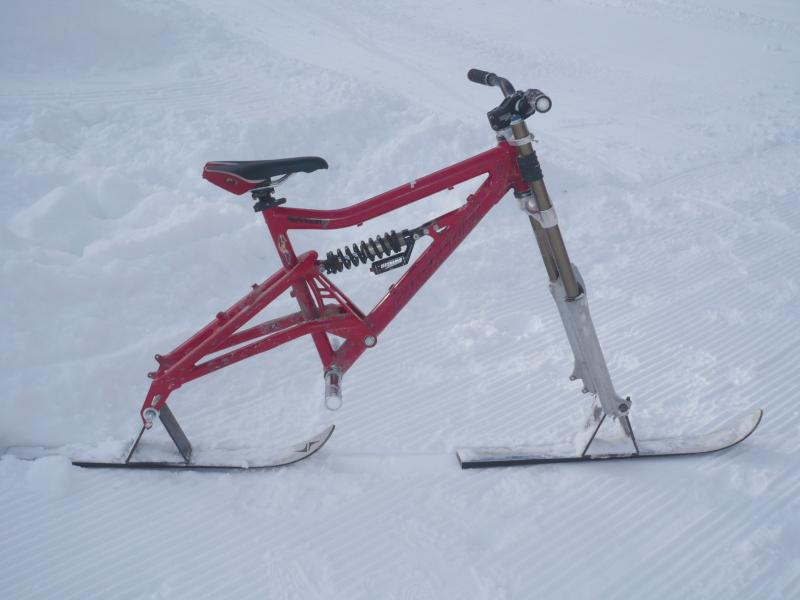

Description: The snowbike on it's inaugural run!
