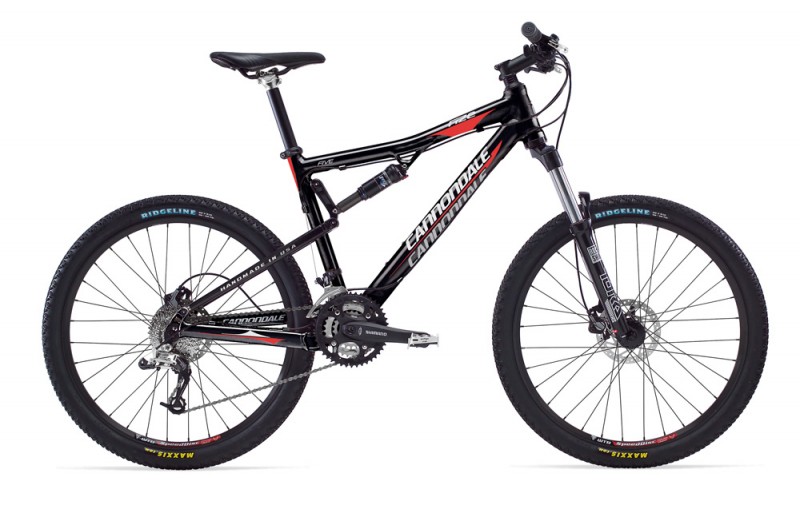

Cannondale Rize 5

Specifications
Price $1799.99
Travel 130mm
Rear Shock FOX Float R
Fork RockShox Tora 302 Solo Air, 130 mm
Headset Cannondale Orbit Z 1.5"
Cassette Shimano HG50, 11-34
Crankarms Shimano FC-M521, 22/32/44
Bottom Bracket Shimano Octalink
Pedals Wellgo alloy cage w/clip and strap
Rear Derailleur SRAM X-9
Chain Shimano 9-speed
Front Derailleur Shimano Deore
Shifter Pods SRAM X-5 Trigger
Handlebar Cannondale C3, 20 mm rise
Stem Cannondale XC3 1 1/8", 31.8 mm
Grips Cannondale Morse Grip
Brakes Avid Juicy 3, 160/160 mm
Hubs Shimano M475
Spokes Mach 1
Rim WTB Speed Disc XC, 32 hole
Tires Maxxis Ridgeline, 26 x 2.1"
Seat Fi'zi:k Nisene w/MG rails
Seatpost Cannondale Alloy
Compare to other XC/All-Mountain Bikes
Size: S M L XL
Frame Weight:
Bike Weight:
Headtube Angle: 68.5 ° 68.5 ° 68.5 ° 68.5 °
Seattube Angle: 72.5 ° 72.5 ° 72.5 ° 72.5 °
Headtube Length:
Chainstay Length: 425 mm 425 mm 425 mm 425 mm
BB Height: 330 mm 330 mm 330 mm 330 mm
BB Width:
Seat Post Diameter:
Front Derailleur Width:
HeadTube Diameter: 1.5 1.5 1.5 1.5
Top Tube Length: 572 mm 597 mm 483 mm 508 mm
WheelBase: 1077 mm 1105 mm 1132 mm 1159 mm
Standover Height: 756 mm 774 mm 778 mm 772 mm
Cannondale Rize 5 (MSRP $1799.99) - Looking for a premium play bike that eats other all-mountain rigs for breakfast? The Rize brings all-new metalforming technologies to the bike industry, creating a lighter, stiffer and plusher platform to enjoy the backcountry. Traditional Cannondale innovations, including Si-equipped head tubes and bottom bracket shells, make the Rize a dreamy ride.

BACKBONE
Stiffer, lighter and stronger: Cannondale introduced to the bicycle industry new metalforming technology on the Rize. The Backbone combines the BB30 shell, lower pivot, and double-butted seat tube into a 3D forged part.

SYSTEM INTEGRATION
Si has long been used on Cannondale's bicycles, and the Rize is yet another example. Making machined headset cups integral to the frame eliminates unneeded parts; combining the stem and steerer also reduces the flex inherent in joining two separate pieces. The net result is a bike that weighs less, steers better, and allows cyclists to out-accelerate their riding partners.

HYDROFORMED TUBING
Riders benefit from Cannondale aluminum-manufacturing heritage. Hydroformed tubing - like on the chainstays and the main triangle - use organic shapes that resist lateral flex and ensure every pedal stroke goes towards driving the bike forward.
