Specifications
|
|
Price
|
$5199
|
|
|
Rear Shock |
Fox DHX 5.0 |
|
|
Fork |
Rock Shox Totem Solo Air 180mm, 1.5" |
|
|
Headset |
FSA Big Fat Pig |
|
|
Cassette |
SRAM Power Glide II 970 9s 11-32T |
|
|
Crankarms |
Truvativ Hammerschmidt 22T |
|
|
Pedals |
Crank Brothers 5050 XX |
|
|
Chain |
SRAM PC 951 |
|
|
Rear Derailleur |
SRAM X.O |
|
|
Front Derailleur |
SRAM X.9 |
|
|
Shifter Pods |
Front: SRAM X.9 Hammerschmidt, Rear: SRAM X-9 |
|
|
Handlebar |
FSA Gravity Light OS 31.8mm |
|
|
Stem |
Daredevil 1.5" 31.8mm |
|
|
Grips |
Devinci Performance |
|
|
Brakes |
Avid Code 5 hydraulic 203mm rotor |
|
|
Wheelset |
DT Swiss FR600 Disc/DT Swiss 340/DT Champion |
|
|
Tires |
Maxxis Hi-Roller 26x2.5" |
|
|
Seat |
Daredevil FR |
|
|
Seatpost |
FSA Gravity 31.6mm |
|
|
Size:
|
XS |
S |
M |
L |
|
Frame Weight:
|
|
|
|
|
|
Bike Weight:
|
|
|
|
|
|
Headtube Angle:
|
65.1 ° |
65.1 ° |
65.1 ° |
65.1 ° |
|
Seattube Angle:
|
73.6 ° |
73.6 ° |
73.6 ° |
73.6 ° |
|
Headtube Length:
|
99.06 mm |
109.98 mm |
119.38 mm |
129.54 mm |
|
Chainstay Length:
|
429.26 mm |
429.26 mm |
429.26 mm |
429.26 mm |
|
BB Height:
|
370.84 mm |
370.84 mm |
370.84 mm |
370.84 mm |
|
BB Width:
|
|
|
|
|
|
Seat Post Diameter:
|
|
|
|
|
|
Front Derailleur Width:
|
|
|
|
|
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
533.4 mm |
558.8 mm |
579.12 mm |
599.44 mm |
|
WheelBase:
|
1125.22 mm |
1150.62 mm |
1173.48 mm |
1193.8 mm |
|
Standover Height:
|
726.44 mm |
726.44 mm |
749.3 mm |
782.32 mm |
|

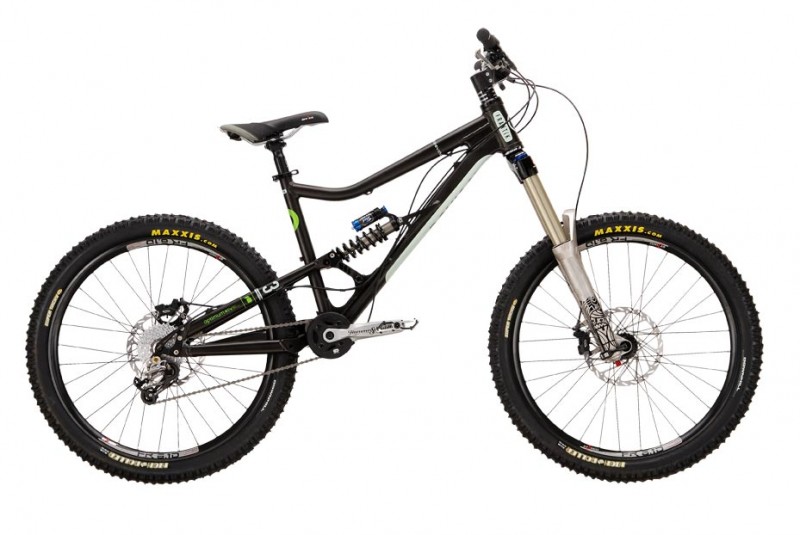

Devinci Frantik 3 HammerSchmidt (MSRP $5199) - Devinci's Freeride bike, the Frantik 3, with HammerSchmidt.
