Specifications
|
|
Price
|
|
|
|
Fork |
Marzocchi Dirt Jumper 3, 100mm travel, coil spring, fixed hydraulic damping, 32mm cr-mo stanchions and steerer tube, mag lower blades, 20mm through-axle |
|
|
Headset |
TH Mallet, standard press-in 1-1/8" cups, cr-mo lower cup, cage bearings |
|
|
Cassette |
SRAM, Powerglide II, 9 speed, 11-28 |
|
|
Crankarms |
FSA Gravity Maximus DH, forged 6061, HT cr-mo 36T single ring, 10mm clear PC bash ring |
|
|
Chainguide |
Prime Aero, alloy/steel roller guide, ISCG mount |
|
|
Bottom Bracket |
Cartridge sealed bearing, Cr-Mo ISIS axle |
|
|
Pedals |
GT Alum Platform with cr-mo spindles |
|
|
Chain |
KMC Z9000 |
|
|
Rear Derailleur |
SRAM X-5, Med cage length |
|
|
Shifter Pods |
SRAM, SL X-5 trigger type |
|
|
Handlebar |
GT design, 6061, 9 degrees sweep, 4 degrees tip, 40mm rise, 31.8 OD. |
|
|
Stem |
GT design, forged 6061, 7 degree rise, 50mm extension |
|
|
Grips |
'07 GT "Grip-Tights" Kraton grip with double alloy clamps |
|
|
Brakes |
Avid, Juicy 3s, dual piston hydraulic disc, 160mm rotor |
|
|
Hubs |
9-speed cassette, sealed bearings, QR axle, 135mm spacing/20mm Front |
|
|
Spokes |
Stainless 14 guage |
|
|
Rim |
Alex FR 32, double wall, eyelets, 36H |
|
|
Tires |
Kenda Nevegal, 2.35" |
|
|
Seat |
SDG,Bel-Air ST I-Beam, stitched cover |
|
|
Seatpost |
SDG, I-Beam, AL 6061, 25.4mm |
|
|
Size:
|
S |
M |
|
Frame Weight:
|
|
|
|
Bike Weight:
|
|
|
|
Headtube Angle:
|
69 ° |
69 ° |
|
Seattube Angle:
|
73.5 ° |
73.5 ° |
|
Headtube Length:
|
|
109.98 mm |
|
Chainstay Length:
|
409.95 mm |
409.95 mm |
|
BB Height:
|
308.10 mm |
308.10 mm |
|
BB Width:
|
|
|
|
Seat Post Diameter:
|
|
|
|
Front Derailleur Width:
|
|
|
|
HeadTube Diameter:
|
1.125 |
1.125 |
|
Top Tube Length:
|
565.91 mm |
592.83 mm |
|
WheelBase:
|
1057.65 mm |
1084.58 mm |
|
Standover Height:
|
621.03 mm |
617.47 mm |
|

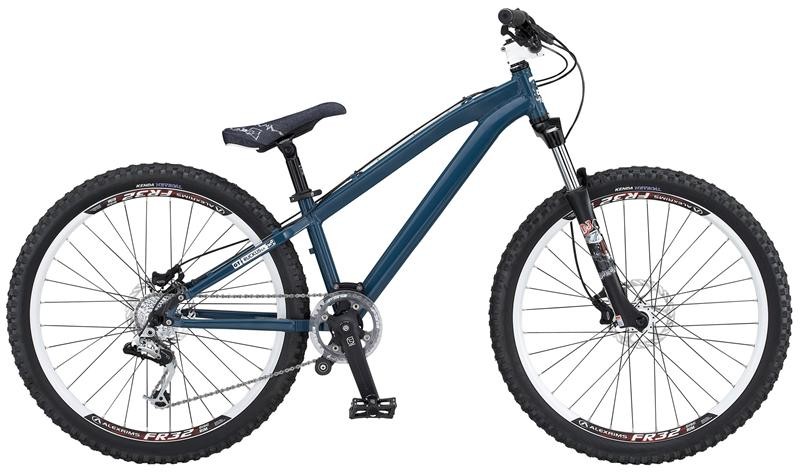

GT Ruckus SX (MSRP $0) - GT Hardtail bike, Ruckus SX.
