Specifications
|
|
Price
|
$5100
|
|
|
Travel |
203mm |
|
|
Rear Shock |
Fox DHX 5.0 |
|
|
Fork |
FOX 40 RC2, massive 40mm stanchions, FIT closed bath damper cartridge, titanium spring, external adjustors for high & low speed compression damping, rebound damping & coil spring preload, 20mm thru-axle, 1 1/8” steerer, 203mm travel |
|
|
Headset |
Syncros FBI, 1.5” reduced to 1 1/8” steerer, deep 20mm cups, lower roller bearing, upper sealed cartridge bearing |
|
|
Cassette |
SRAM PowerGlide 950, 9-speed, 11-28 |
|
|
Crankarms |
Shimano Saint Hollowtech II, 36T x 165mm |
|
|
Chainguide |
e13 LG1 chain guide |
|
|
Bottom Bracket |
Shimano integrated, 83mm shell |
|
|
Pedals |
Crank Brothers 5050 sealed bearing platforms with replaceable plates & pedal spikes |
|
|
Chain |
SRAM PowerChain 971 with Gold Power-Link |
|
|
Rear Derailleur |
Shimano Saint SS low profile |
|
|
Shifter Pods |
Shimano Saint RapidFire Plus SL, 9-speed |
|
|
Handlebar |
Syncros FR 20 O/S riser, 31.8 O˚ x 20mm rise x 710mm |
|
|
Stem |
e13 Ali Direct mount, 31.8 bar bore, adjustable 45-55mm reach |
|
|
Grips |
WTB MotoTec clamp-on, DNA compound |
|
|
Brakes |
Shimano Saint hydraulic disc brakes, dual diameter 4-piston calipers with 203mm rotors, Servo-Wave levers |
|
|
Wheelset |
Mavic EX823 Maxtal UST rims, 32H, WTB Laser Disc Super Duty hubs with 20mm thru-axle front & 150 x 12mm thru-axle Maxle rear, WTB 14G stainless steel spokes |
|
|
Tires |
Maxxis Mininon DH, 26 x 2.5” front & 2.35” rear, R3C Compound |
|
|
Seat |
WTB Devo Team, DNA padding, cromo rails |
|
|
Seatpost |
Syncros FR, 31.6 x 350mm with alloy QR clamp |
|
|
Size:
|
16" |
17.5" |
19.5" |
|
Frame Weight:
|
9.5 lbs |
9.5 lbs |
9.5 lbs |
|
Bike Weight:
|
40.70 lbs |
40.70 lbs |
40.70 lbs |
|
Headtube Angle:
|
65 ° |
65 ° |
65 ° |
|
Seattube Angle:
|
67.5 ° |
67.5 ° |
67.5 ° |
|
Headtube Length:
|
130 mm |
130 mm |
130 mm |
|
Chainstay Length:
|
440 mm |
440 mm |
440 mm |
|
BB Height:
|
368 mm |
368 mm |
368 mm |
|
BB Width:
|
83 mm |
83 mm |
83 mm |
|
Seat Post Diameter:
|
31.6 " |
31.6 " |
31.6 " |
|
Front Derailleur Width:
|
|
|
|
|
HeadTube Diameter:
|
1.5 |
1.5 |
1.5 |
|
Top Tube Length:
|
558 mm |
584 mm |
609 mm |
|
WheelBase:
|
1122 mm |
1147 mm |
1172 mm |
|
Standover Height:
|
809 mm |
818 mm |
830 mm |
|

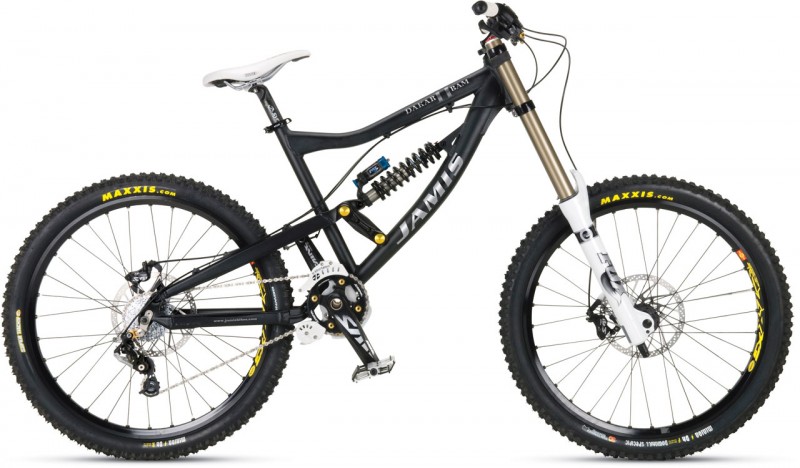

Jamis Dakar BAM II (MSRP $5100) - We took the proven 7-inch mp3 rear suspension from last year’s BAM, pumped it up to 8 inches of terrain-swallowing travel so it’ll take the drops you used to bail on. It’s active and plush thanks to a 2.67:1 leverage ratio that squeezes the most out Fox’s DHX shock, with minimal pedal or brake feedback, keeping you in complete control.
We gave BAM downhill-inspired angles for descending confidence, and a lengthy top tube that lets you breathe on the ascents as you make the most of the mp3 suspension’s stable pedal platform. A new unified bell crank and CNC’ed pivot hardware keeps things laterally stiff and torsionally tight so you can power out of one switchback into the next.
