Specifications
|
|
Price
|
$2750
|
|
|
Travel |
150mm |
|
|
Rear Shock |
Fox DHX Air 4.0 |
|
|
Fork |
Marzocchi 55 TST2, external compression and rebound adjustors with lock-out, 20mm QR thru-axle, 35mm stanchions, 160mm travel |
|
|
Headset |
Syncros Hard Core Inside, with 20mm shim stack, 1 1/8” |
|
|
Cassette |
SRAM Powerglide 950, 9-speed, 11-34 |
|
|
Crankarms |
Shimano Deore Hollowtech II, 44/32/22, 170mm (15”), 175mm (17-21”) |
|
|
Bottom Bracket |
Shimano integrated |
|
|
Pedals |
Crank Brothers Acid, large platform clipless |
|
|
Rear Derailleur |
Shimano Deore XT Shadow |
|
|
Chain |
Sram PowerChain 971 with Gold Power-Link |
|
|
Front Derailleur |
Shimano SLX front 34.9mm |
|
|
Shifter Pods |
Shimano Deore Rapidfire Plus-SL, 27-speed |
|
|
Handlebar |
Syncros AM20, 31.8 O˚ x 9/4˚ sweep x 20mm rise x 670mm |
|
|
Stem |
Synrcos FL, 31.8 bar bore, 6˚ rise x 80mm (15”) 90 mm(17”) & 100mm (19-21”) |
|
|
Grips |
WTB MotoTec clamp-on, DNA compound |
|
|
Brakes |
Hayes Stroker Ryde hydraulic disc brakes, V7 front and V6 rear rotors |
|
|
Wheelset |
Mavic XM317 eyeletted disc rims, 32H, Shimano M475 rear disc hub, Formula 20mm thru-axle front, WTB 14g stainless steel spokes |
|
|
Tires |
Kenda Nevegal 26 x 2.3”, folding bead |
|
|
Seat |
WTB Rocket V Comp with ABR corners |
|
|
Seatpost |
Synrcos FR, 31.6mm x 350mm with alloy QR clamp |
|
|
Size:
|
15" |
17" |
19" |
21" |
|
Frame Weight:
|
|
|
|
|
|
Bike Weight:
|
33.90 lbs |
33.90 lbs |
33.90 lbs |
33.90 lbs |
|
Headtube Angle:
|
68.5 ° |
68.5 ° |
68.5 ° |
68.5 ° |
|
Seattube Angle:
|
73.5 ° |
73 ° |
73 ° |
72.5 ° |
|
Headtube Length:
|
120 mm |
120 mm |
120 mm |
145 mm |
|
Chainstay Length:
|
440 mm |
440 mm |
440 mm |
440 mm |
|
BB Height:
|
342 mm |
342 mm |
342 mm |
342 mm |
|
BB Width:
|
|
|
|
|
|
Seat Post Diameter:
|
31.6 " |
31.6 " |
31.6 " |
31.6 " |
|
Front Derailleur Width:
|
34.9 mm |
34.9 mm |
34.9 mm |
34.9 mm |
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
537 mm |
573 mm |
586 mm |
607 mm |
|
WheelBase:
|
1076 mm |
1106 mm |
1119 mm |
1136 mm |
|
Standover Height:
|
797 mm |
768 mm |
816 mm |
836 mm |
|

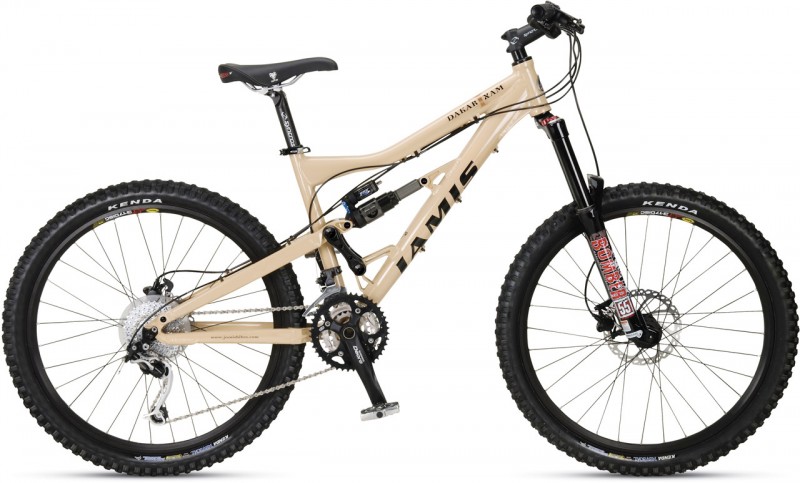

Jamis Dakar XAM I (MSRP $2750) - From the beginning, the Dakar XAM earned a rep as an incredibly plush, efficient trail bike. This year, we reworked it from head tube to rear dropout, making it the best-handling/best-pedaling 6-inch travel all-mountain bike to ever set tread on dirt.
We finessed and overhauled everything we could on XAM for no-excuses performance. The XAM’s mp3 rear suspension gets a new one-piece bell crank, new pivot hardware, new seatstays and dropouts for more stiffness at the back end, and a 2.63:1 shock leverage ratio that improves shock life and offers more progressive control.
Up front there’s 20mm of stiff thru-axle strength to keep you firmly planted and pointed where you want to go no matter how aggressive the conditions.
