Specifications
|
|
Price
|
$4975
|
|
|
Travel |
150mm |
|
|
Rear Shock |
Fox DHX Air 5.0 |
|
|
Fork |
Fox 36 Talas-RC2, external low & high speed compression damping and rebound damping rebound adjustors, hydraulic bottom-out resistance, 20mm thru axle, 36mm stanchions, 100 -130-160mm travel positions |
|
|
Headset |
Syncros Hard Core Inside, with 20mm shim stack, 1 1/8” |
|
|
Cassette |
SRAM Powerglide 970, 9-speed, 11-34 |
|
|
Crankarms |
TruVativ Hammerschmidt with TruVativ bash guard, 170mm (15”), 175mm 17-21”) |
|
|
Bottom Bracket |
TruVativ Hammerschmidt integrated |
|
|
Pedals |
Crank Brothers Acid, large platform clipless |
|
|
Rear Derailleur |
Sram X.O Mid Cage |
|
|
Chain |
Sram PowerChain 971 with Gold Power-Link |
|
|
Front Derailleur |
TruVativ Hammerschmidt internal front |
|
|
Shifter Pods |
Sram X.0 Trigger, zero loss travel, 2-step front shifting |
|
|
Handlebar |
Synrcos FL 35, 31.8 OD x 4˚ sweep x 35mm rise x 670mm |
|
|
Stem |
Synrcos FL, 31.8 bar bore, 6˚ rise x 80mm (15”) 90 mm(17”) & 100mm (19-21”) extensions |
|
|
Grips |
WTB MotoTec clamp-on, DNA compound |
|
|
Brakes |
Avid Elixir hydraulic disc brakes with 185mm front & 160mm rear rotors, TaperBore lever with integrated reservoir |
|
|
Wheelset |
Mavic XM317 eyeletted disc rims, 32H, Syncros FR disc hubs, 20mm thru-axle front, WTB 14g stainless steel spokes |
|
|
Tires |
Kenda Nevegal, 26 x 2.3”, folding bead |
|
|
Seat |
Syncros FL, leather cover, SL foam, composite shell, hollow titanium rails |
|
|
Seatpost |
Crank Brothers Joplin, 75mm range adjustable height with remote lever, 31.6 x 350mm, with alloy QR clamp |
|
|
Size:
|
15" |
17" |
19" |
21" |
|
Frame Weight:
|
4.90 lbs |
4.90 lbs |
4.90 lbs |
4.90 lbs |
|
Bike Weight:
|
33.80 lbs |
33.80 lbs |
33.80 lbs |
33.80 lbs |
|
Headtube Angle:
|
68.5 ° |
68.5 ° |
68.5 ° |
68.5 ° |
|
Seattube Angle:
|
73.5 ° |
73 ° |
73 ° |
72.5 ° |
|
Headtube Length:
|
120 mm |
120 mm |
120 mm |
145 mm |
|
Chainstay Length:
|
440 mm |
440 mm |
440 mm |
440 mm |
|
BB Height:
|
342 mm |
342 mm |
342 mm |
342 mm |
|
BB Width:
|
|
|
|
|
|
Seat Post Diameter:
|
31.6 " |
31.6 " |
31.6 " |
31.6 " |
|
Front Derailleur Width:
|
|
|
|
|
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
537 mm |
573 mm |
586 mm |
607 mm |
|
WheelBase:
|
1076 mm |
1106 mm |
1119 mm |
1136 mm |
|
Standover Height:
|
797 mm |
798 mm |
816 mm |
836 mm |
|

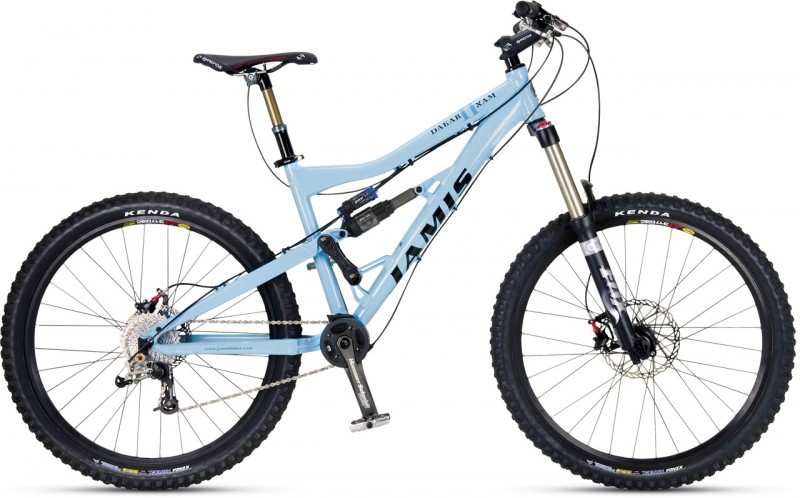

Jamis Dakar XAM II (MSRP $4975) - From the beginning, the Dakar XAM earned a rep as an incredibly plush, efficient trail bike. This year, we reworked it from head tube to rear dropout, making it the best-handling/best-pedaling 6-inch travel all-mountain bike to ever set tread on dirt.
We finessed and overhauled everything we could on XAM for no-excuses performance. The XAM’s mp3 rear suspension gets a new one-piece bell crank, new pivot hardware, new seatstays and dropouts for more stiffness at the back end, and a 2.63:1 shock leverage ratio that improves shock life and offers more progressive control.
Up front there’s 20mm of stiff thru-axle strength to keep you firmly planted and pointed where you want to go no matter how aggressive the conditions.
