Specifications
|
|
Price
|
$2499
|
|
|
Rear Shock |
Marzocchi Roco Air TST w/Piggyback |
|
|
Fork |
Marzocchi Dirt Jumper 1 100mm |
|
|
Headset |
TH w/Big Nut |
|
|
Cassette |
Shimano Deore (11-32, 9spd) |
|
|
Crankarms |
RaceFace Evolve DH |
|
|
Chainguide |
E.Thirteen STS |
|
|
Bottom Bracket |
RaceFace X-Type |
|
|
Pedals |
Kona Wah-Wah |
|
|
Chain |
Shimano Deore |
|
|
Rear Derailleur |
Shimano XT Shadow |
|
|
Shifter Pods |
Shimano Deore (rh only) |
|
|
Handlebar |
RaceFace Evolve DH Riser |
|
|
Stem |
RaceFace Evolve DH |
|
|
Grips |
Cowan Lock-On Signature |
|
|
Brakes |
Shimano M575 Hydraulic Disc |
|
|
Hubs |
Front: - Formula DH. Rear: - Shimano M525 Disc |
|
|
Spokes |
Sandvik Stainless 14g |
|
|
Rim |
Sun EQ 2.9SL |
|
|
Tires |
Maxxis Minion DH 26x2.35 |
|
|
Seat |
WTB Devo HP Comp |
|
|
Seatpost |
RaceFace Evolve DH |
|
|
Size:
|
15 |
15.5 |
17.5 |
|
Frame Weight:
|
|
|
|
|
Bike Weight:
|
35.2 lbs |
35.2 lbs |
35.2 lbs |
|
Headtube Angle:
|
70 ° |
70 ° |
70 ° |
|
Seattube Angle:
|
74 ° |
74 ° |
74 ° |
|
Headtube Length:
|
120 mm |
120 mm |
125 mm |
|
Chainstay Length:
|
425 mm |
425 mm |
425 mm |
|
BB Height:
|
335 mm |
335 mm |
335 mm |
|
BB Width:
|
68 mm |
68 mm |
68 mm |
|
Seat Post Diameter:
|
|
|
|
|
Front Derailleur Width:
|
34.9 mm |
34.9 mm |
34.9 mm |
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
560 mm |
584 mm |
610 mm |
|
WheelBase:
|
1077 mm |
1101 mm |
1127 mm |
|
Standover Height:
|
776 mm |
782 mm |
807 mm |
|

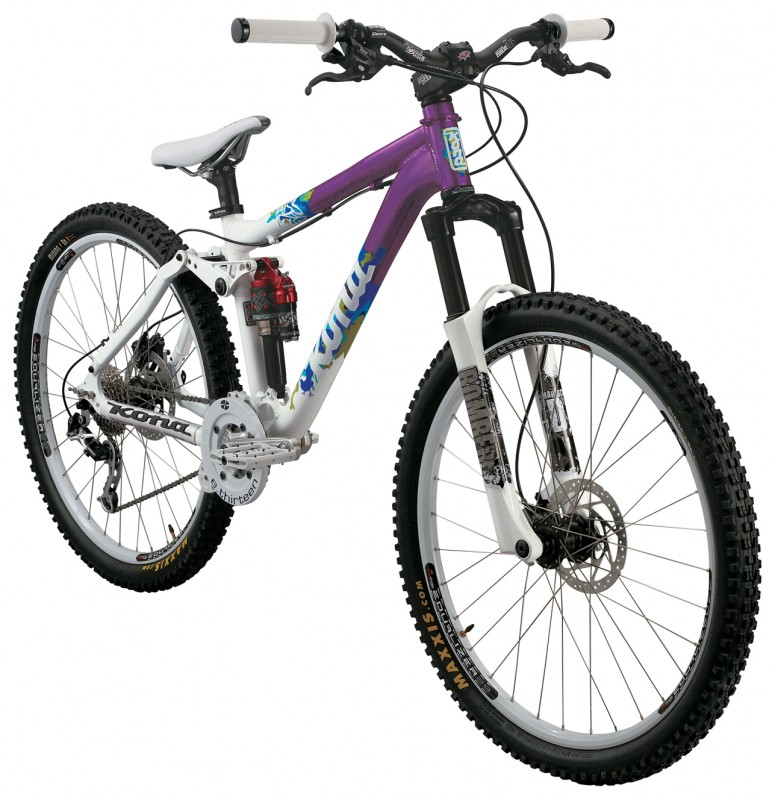

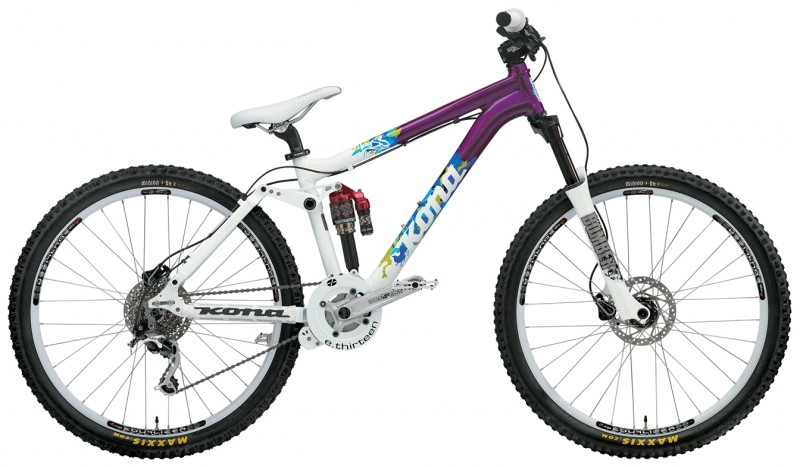

Kona 2009 Bass (MSRP $2499) - Slopestyle / Dirt Jump Bike. Kona 4” Travel Slopestyle Competition Frame • Marzocchi Dirt Jumper 1 100mm Travel Fork • Marzocchi Roco Air TST Rear Shock • RaceFace Evolve DH X-Type Crank/BB • Maxxis Minion 26 x 2.35 Tires. Frame sizes: Small (15"), Medium(15.5"), Large (17.5"). Colour: Purple Metallic/Gloss White
