Specifications
|
|
Price
|
$3799 |
|
|
Travel |
6+1" |
|
|
Rear Shock |
Fox RP2 w/XV Sleeve |
|
|
Fork |
Fox 36 Float RC2 165mm (20mm thru) |
|
|
Headset |
FSA Gravity SX Custom |
|
|
Cassette |
Shimano SLX 11-34T |
|
|
Crankarms |
RaceFace Evolve XC |
|
|
Bottom Bracket |
Race Face Evolve X-type |
|
|
Pedals |
Shimano M520 clipless |
|
|
Chain |
Shimano LX |
|
|
Rear Derailleur |
Shimano XT Shadow |
|
|
Front Derailleur |
Shimano SLX |
|
|
Shifter Pods |
Shimano SLX |
|
|
Handlebar |
Kona OB/BC Riser |
|
|
Stem |
Kona XC/BC Deluxe |
|
|
Grips |
Kona LOG |
|
|
Brakes |
Shimano SLX Hydraulic |
|
|
Wheelset |
Mavic Crossline |
|
|
Tires |
Maxxis HighRoller 2.35 |
|
|
Seat |
WTB Pure V Race FR |
|
|
Seatpost |
Kona XC/BC Deluxe |
|
|
Size:
|
15 |
17 |
18 |
19 |
20 |
|
Frame Weight:
|
|
|
|
|
|
|
Bike Weight:
|
35.5 lbs |
35.5 lbs |
35.5 lbs |
35.5 lbs |
35.5 lbs |
|
Headtube Angle:
|
67 ° |
67 ° |
67 ° |
67 ° |
67 ° |
|
Seattube Angle:
|
72 ° |
72 ° |
72 ° |
72 ° |
72 ° |
|
Headtube Length:
|
123 mm |
123 mm |
123 mm |
143 mm |
143 mm |
|
Chainstay Length:
|
443 mm |
443 mm |
443 mm |
443 mm |
443 mm |
|
BB Height:
|
358 mm |
358 mm |
358 mm |
358 mm |
358 mm |
|
BB Width:
|
73 mm |
73 mm |
73 mm |
73 mm |
73 mm |
|
Seat Post Diameter:
|
|
|
|
|
|
|
Front Derailleur Width:
|
34.9 mm |
34.9 mm |
34.9 mm |
34.9 mm |
34.9 mm |
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
565 mm |
594 mm |
604 mm |
617 mm |
628 mm |
|
WheelBase:
|
1119 mm |
1147 mm |
1157 mm |
1172 mm |
1185 mm |
|
Standover Height:
|
808 mm |
803 mm |
812 mm |
829 mm |
837 mm |
|

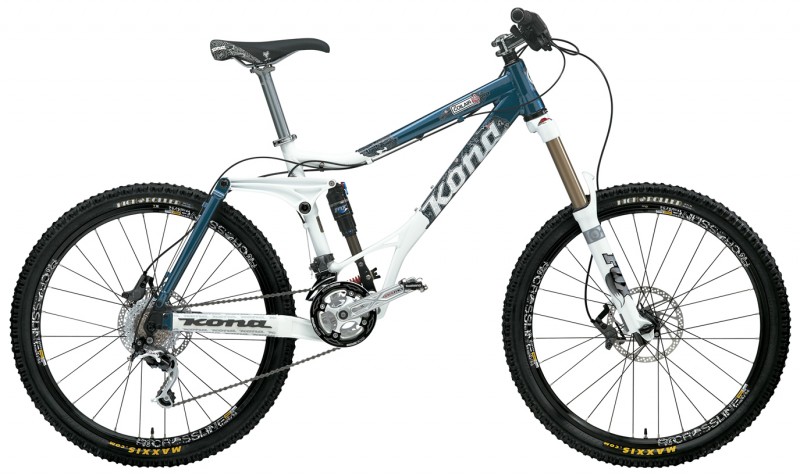

Kona CoilAir Deluxe (MSRP $3799) - Enduro/Freeride bike. Kona Clump 7005 Aluminum Magic 6+1 System w/DOPE. Frame sizes:15", 17", 18", 19", 20". Colour: Blue Metallic/Pearl White
