Specifications
|
|
Price
|
$2299
|
|
|
Travel |
6+1" |
|
|
Rear Shock |
Fox Float RP2 w/XV Sleeve |
|
|
Fork |
Marzocchi 55-TST2 160mm (20mm thru) |
|
|
Headset |
FSA Gravity SXE |
|
|
Cassette |
Shimano Deore 11-34T |
|
|
Crankarms |
FSA Moto X |
|
|
Bottom Bracket |
FSA Moto Integrated |
|
|
Pedals |
Shimano M505 clipless |
|
|
Chain |
Shimano Deore |
|
|
Rear Derailleur |
Shimano SLX |
|
|
Front Derailleur |
Shimano Deore |
|
|
Shifter Pods |
Shimano Deore |
|
|
Handlebar |
Kona OB/BC Riser |
|
|
Stem |
Kona XC/BC |
|
|
Grips |
Kona LOG |
|
|
Brakes |
Shimano M575 Hydraulic Disc |
|
|
Hubs |
Rear - Shimano M525 Disc. Front - Formula DH (20mm) |
|
|
Spokes |
Sandvik Stainless 14g |
|
|
Rim |
Sun EQ 2.7SL |
|
|
Tires |
Maxxis HighRoller 2.35 |
|
|
Seat |
WTB Pure V Sport |
|
|
Seatpost |
Kona XC/BC |
|
|
Size:
|
15 |
17 |
18 |
19 |
20 |
|
Frame Weight:
|
|
|
|
|
|
|
Bike Weight:
|
36.8 lbs |
36.8 lbs |
36.8 lbs |
36.8 lbs |
36.8 lbs |
|
Headtube Angle:
|
67 ° |
67 ° |
67 ° |
67 ° |
67 ° |
|
Seattube Angle:
|
72 ° |
72 ° |
72 ° |
72 ° |
72 ° |
|
Headtube Length:
|
123 mm |
123 mm |
123 mm |
143 mm |
143 mm |
|
Chainstay Length:
|
443 mm |
443 mm |
443 mm |
443 mm |
443 mm |
|
BB Height:
|
358 mm |
358 mm |
358 mm |
358 mm |
358 mm |
|
BB Width:
|
73 mm |
73 mm |
73 mm |
73 mm |
73 mm |
|
Seat Post Diameter:
|
|
|
|
|
|
|
Front Derailleur Width:
|
34.9 mm |
34.9 mm |
34.9 mm |
34.9 mm |
34.9 mm |
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
565 mm |
594 mm |
604 mm |
617 mm |
629 mm |
|
WheelBase:
|
1119 mm |
1147 mm |
1157 mm |
1172 mm |
1185 mm |
|
Standover Height:
|
808 mm |
803 mm |
812 mm |
829 mm |
837 mm |
|

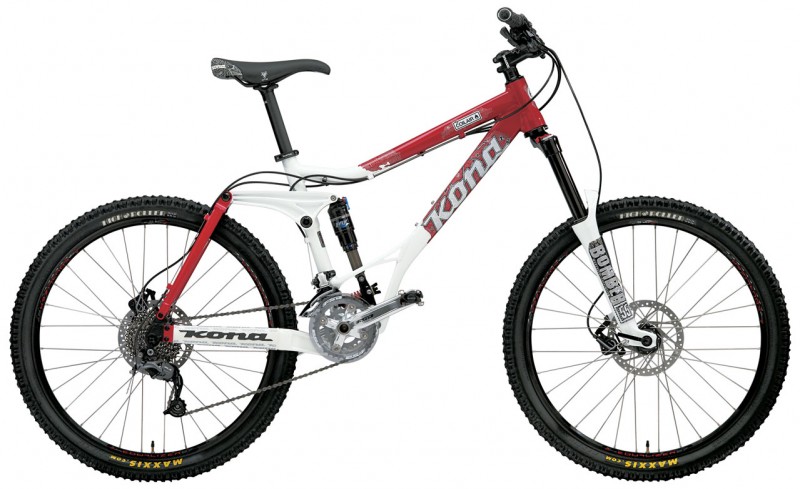

Kona CoilAir (MSRP $2299) - Enduro Freeride bike. Kona Clump 7005 Aluminum Magic 6+1 System w/DOPE. Frame sizes:15", 17", 18", 19", 20". Colour: Purple/Pearl White. Crankset - Bashguard/36/24T (Triple chainring Europe only.)
