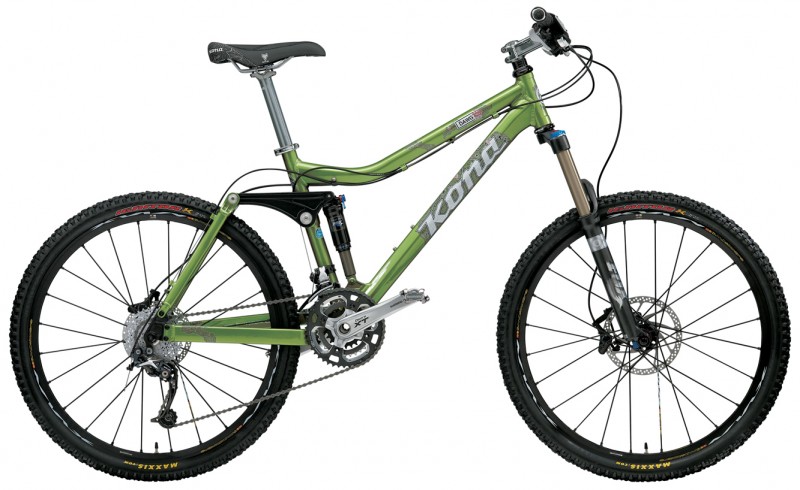

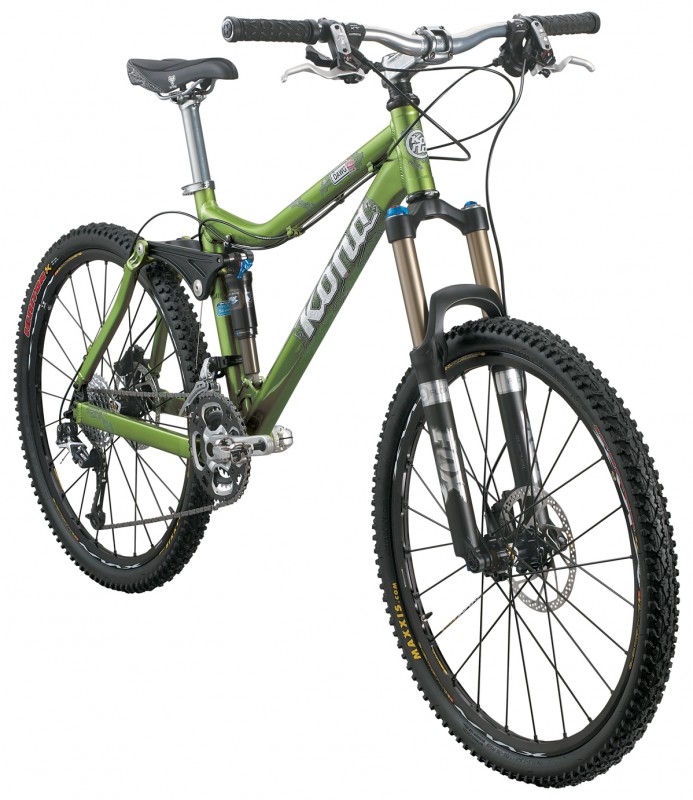

Kona Dawg Supreme

Specifications
Price $4559
Rear Shock Fox Float RP23
Fork Fox 32 Float RLC 140mm w/15mm Dropouts
Headset FSA Orbit DL
Cassette Shimano XT (11-34, 9spd)
Crankarms Shimano XT
Bottom Bracket Shimano XT
Pedals Shimano M540 Clipless
Rear Derailleur Shimano XTR Shadow
Chain Shimano LX
Front Derailleur Shimano XT
Shifter Pods Shimano XT
Handlebar Kona XC/BC Deluxe Riser
Stem Kona XC/BC Deluxe
Grips Kona LOG
Brakes Shimano XT Hydraulic Disc
Wheelset Mavic Crossmax ST (15mm front)
Tires Maxxis Ignitor 26x2.35 Kevlar
Seat WTB Rocket V SLT
Seatpost Kona XC/BC Deluxe
Compare to other XC/All-Mountain Bikes
Size: 15 17 18 19 20 22
Frame Weight:
Bike Weight: 28.0 lbs 28.0 lbs 28.0 lbs 28.0 lbs 28.0 lbs 28.0 lbs
Headtube Angle: 68.8 ° 68.8 ° 68.8 ° 68.8 ° 68.8 ° 68.8 °
Seattube Angle: 72.3 ° 72.3 ° 72.3 ° 72.3 ° 72.3 ° 72.3 °
Headtube Length: 125 mm 120 mm 125 mm 140 mm 140 mm 140 mm
Chainstay Length: 434 mm 434 mm 434 mm 434 mm 434 mm 434 mm
BB Height: 355 mm 355 mm 355 mm 355 mm 355 mm 355 mm
BB Width: 73 mm 73 mm 73 mm 73 mm 73 mm 73 mm
Seat Post Diameter:
Front Derailleur Width: 34.9 mm 34.9 mm 34.9 mm 34.9 mm 34.9 mm 34.9 mm
HeadTube Diameter: 1.125 1.125 1.125 1.125 1.125 1.125
Top Tube Length: 5566 mm 592 mm 604 mm 617 mm 624 mm 631 mm
WheelBase: 1087 mm 1113 mm 1125 mm 1139 mm 1146 mm 1153 mm
Standover Height: 806 mm 774 mm 779 mm 799 mm 810 mm 835 mm
Kona Dawg Supreme (MSRP $4559) - Back Country Dual suspension bike. Kona Race Light Scandium Butted 6” Travel Frame/Mag Rockers • Fox Float RP23 Rear Shock • Shimano XT Crankset & M540 Clipless Pedals • Shimano XT Hydraulic Disc Brakes • Mavic Crossmax ST Wheelset. Frame sizes: 15", 17", 18", 19", 20", 22"
