Specifications
|
|
Price
|
$1799 |
|
|
Travel |
6" |
|
|
Rear Shock |
Fox Float RP2 |
|
|
Fork |
RockShox Recon 335 130mm |
|
|
Headset |
TH |
|
|
Cassette |
Shimano Deore (11-34, 9spd) |
|
|
Crankarms |
Shimano |
|
|
Bottom Bracket |
Shimano |
|
|
Pedals |
Shimano M520 Clipless |
|
|
Rear Derailleur |
Shimano XT Shadow |
|
|
Chain |
Shimano Deore |
|
|
Front Derailleur |
Shimano Deore |
|
|
Handlebar |
Kona XC/BC Riser |
|
|
Stem |
Kona XC/BC |
|
|
Grips |
Kona LOG |
|
|
Brakes |
Shimano M575 Hydraulic Disc |
|
|
Hubs |
Front - Formula Disc. Rear - Shimano M525 Disc |
|
|
Spokes |
Sandvik Stainless 14g |
|
|
Rim |
Sun EQ 2.1SL |
|
|
Tires |
Maxxis Ignitor 26x2.35 Kevlar |
|
|
Seat |
WTB Speed V Comp |
|
|
Seatpost |
Kona XC/BC |
|
|
Size:
|
15 |
17 |
18 |
19 |
20 |
22 |
|
Frame Weight:
|
|
|
|
|
|
|
|
Bike Weight:
|
30.7 lbs |
30.7 lbs |
30.7 lbs |
30.7 lbs |
30.7 lbs |
30.7 lbs |
|
Headtube Angle:
|
68.8 ° |
68.8 ° |
68.8 ° |
68.8 ° |
68.8 ° |
68.8 ° |
|
Seattube Angle:
|
72.3 ° |
72.3 ° |
72.3 ° |
72.3 ° |
72.3 ° |
72.3 ° |
|
Headtube Length:
|
125 mm |
125 mm |
125 mm |
140 mm |
140 mm |
140 mm |
|
Chainstay Length:
|
434 mm |
434 mm |
434 mm |
434 mm |
434 mm |
434 mm |
|
BB Height:
|
355 mm |
355 mm |
355 mm |
355 mm |
355 mm |
355 mm |
|
BB Width:
|
73 mm |
73 mm |
73 mm |
73 mm |
73 mm |
73 mm |
|
Seat Post Diameter:
|
|
|
|
|
|
|
|
Front Derailleur Width:
|
34.9 mm |
34.9 mm |
34.9 mm |
34.9 mm |
34.9 mm |
34.9 mm |
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
566 mm |
592 mm |
604 mm |
617 mm |
625 mm |
631 mm |
|
WheelBase:
|
1087 mm |
1113 mm |
1125 mm |
1139 mm |
1146 mm |
1153 mm |
|
Standover Height:
|
806 mm |
774 mm |
779 mm |
799 mm |
810 mm |
835 mm |
|

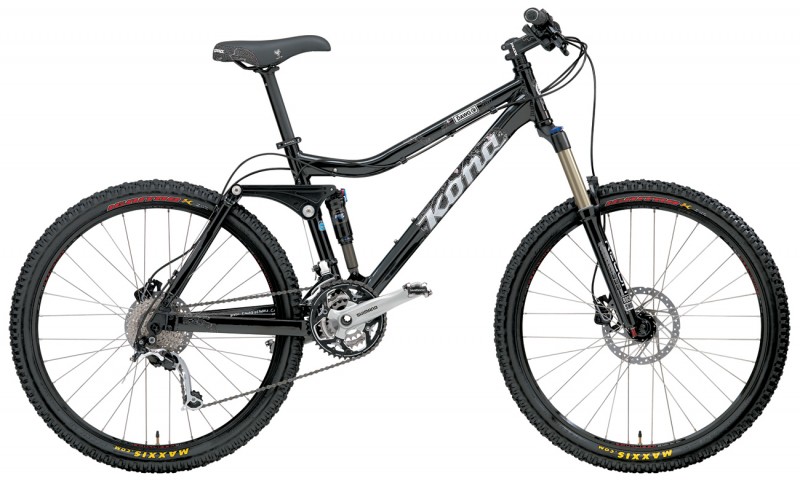

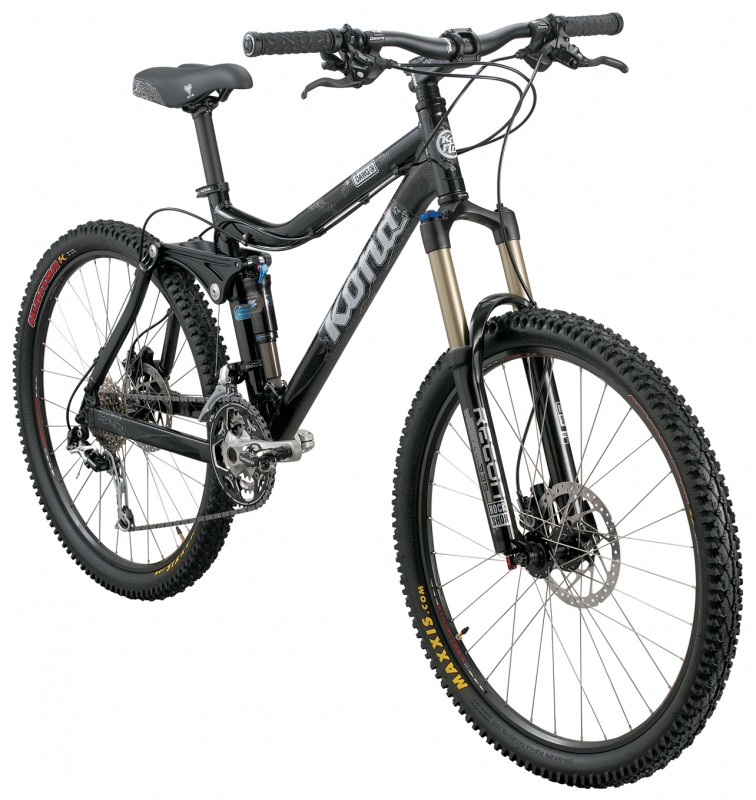

Kona Dawg (MSRP $1799) - Back Country dual suspension bike. Kona Race Light Scandium Butted 6” Travel Frame/Mag Rockers • RockShox Recon 335 130mm Travel Fork • Fox Float RP2 Rear Shock • Shimano 575 Hydraulic Disc Brakes • Maxxis Ignitor 26 x 2.35 Kevlar Tires. Frame sizes: 15", 17", 18", 19", 20", 22"
