Specifications
|
|
Price
|
$1099
|
|
|
Fork |
Marzocchi 55-RS 140mm |
|
|
Headset |
FSA ZST-10 |
|
|
Cassette |
Shimano Acera (11-32t, 8spd) |
|
|
Crankarms |
FSA Step Up |
|
|
Bottom Bracket |
RPM ISIS DH |
|
|
Pedals |
Kona Jackshit |
|
|
Chain |
Shimano HG40 |
|
|
Rear Derailleur |
Shimano Deore |
|
|
Front Derailleur |
Shimano Alivio |
|
|
Shifter Pods |
Shimano Acera |
|
|
Handlebar |
Kona DH Riser |
|
|
Stem |
Kona Clump |
|
|
Grips |
Kona LOG |
|
|
Brakes |
Hayes Hydraulic Stroker Ryde V7 |
|
|
Hubs |
Front - Formula DH, Rear - Shimano M475 Disc |
|
|
Spokes |
Stainless 14g |
|
|
Rim |
Alex DM-24 |
|
|
Tires |
Maxxis High Roller 26x2.35 |
|
|
Seat |
WTB Speed V Sport SE |
|
|
Seatpost |
Kona OB |
|
|
Size:
|
14 |
16 |
18 |
20 |
22 |
|
Frame Weight:
|
|
|
|
|
|
|
Bike Weight:
|
34.5 lbs |
34.5 lbs |
34.5 lbs |
34.5 lbs |
34.5 lbs |
|
Headtube Angle:
|
68 ° |
68 ° |
68 ° |
68 ° |
68 ° |
|
Seattube Angle:
|
72 ° |
72 ° |
72 ° |
72 ° |
72 ° |
|
Headtube Length:
|
110 mm |
120 mm |
125 mm |
135 mm |
145 mm |
|
Chainstay Length:
|
431 mm |
431 mm |
431 mm |
431 mm |
431 mm |
|
BB Height:
|
309 mm |
309 mm |
309 mm |
309 mm |
309 mm |
|
BB Width:
|
73 mm |
73 mm |
73 mm |
73 mm |
73 mm |
|
Seat Post Diameter:
|
|
|
|
|
|
|
Front Derailleur Width:
|
34.9 mm |
34.9 mm |
34.9 mm |
34.9 mm |
34.9 mm |
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
555 mm |
578 mm |
613 mm |
641 mm |
664 mm |
|
WheelBase:
|
1065 mm |
1093 mm |
1126 mm |
1155 mm |
1179 mm |
|
Standover Height:
|
752 mm |
734 mm |
762 mm |
792 mm |
831 mm |
|

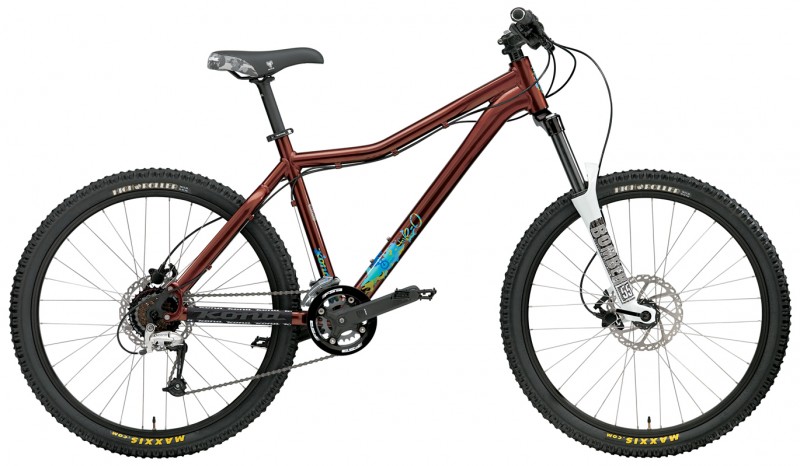

Kona Five-O (MSRP $1099) - Out of Bounds hardtail.
Kona Clump 7005 Aluminum Frame • Marzocchi 55-RS 140mm Travel Fork • FSA Step Up ISIS Crank/BB • Hayes Stroker Ryde Hydraulic Disc Brakes • Alex DM-24 Rims/Maxxis High Roller 26 x 2.35 Tires. Frame sizes: 14", 16", 18", 20", 22" Colour: Chestnut Metallic.
