Specifications
|
|
Price
|
$1099 |
|
|
Fork |
Marzocchi Dirt Jumper 2 100mm |
|
|
Headset |
TH |
|
|
Cassette |
Shimano Deore (11-32, 9spd) |
|
|
Crankarms |
FSA Step Up |
|
|
Bottom Bracket |
RPM ISIS DH |
|
|
Pedals |
Kona Jackshit Deluxe |
|
|
Rear Derailleur |
Shimano XT Shadow |
|
|
Chain |
KMC HG53 |
|
|
Front Derailleur |
Shimano Deore |
|
|
Shifter Pods |
Shimano Deore |
|
|
Handlebar |
Kona XC/BC Riser |
|
|
Stem |
Kona XC/BC |
|
|
Grips |
Kona LOG |
|
|
Brakes |
Shimano M575 Hydraulic Disc |
|
|
Hubs |
Front - Formula DH, Rear - Shimano M525 Disc |
|
|
Spokes |
Sandvik Stainless 14g |
|
|
Rim |
Sun Black Eye |
|
|
Tires |
Maxxis Ignitor 26x2.35 |
|
|
Seat |
WTB Speed V Sport SE |
|
|
Seatpost |
Kona OB |
|
|
Size:
|
16 |
18 |
20 |
22 |
|
Frame Weight:
|
|
|
|
|
|
Bike Weight:
|
31.3 lbs |
31.3 lbs |
31.3 lbs |
31.3 lbs |
|
Headtube Angle:
|
68 ° |
68.5 ° |
68.5 ° |
68.5 ° |
|
Seattube Angle:
|
72.5 ° |
72.5 ° |
71.5 ° |
71 ° |
|
Headtube Length:
|
110 mm |
110 mm |
140 mm |
140 mm |
|
Chainstay Length:
|
425 mm |
425 mm |
425 mm |
425 mm |
|
BB Height:
|
309 mm |
312 mm |
315 mm |
315 mm |
|
BB Width:
|
73 mm |
73 mm |
73 mm |
73 mm |
|
Seat Post Diameter:
|
|
|
|
|
|
Front Derailleur Width:
|
34.9 mm |
34.9 mm |
34.9 mm |
34.9 mm |
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
555 mm |
590 mm |
616 mm |
638 mm |
|
WheelBase:
|
1064 mm |
1093 mm |
1111 mm |
1128 mm |
|
Standover Height:
|
755 mm |
779 mm |
817 mm |
839 mm |
|

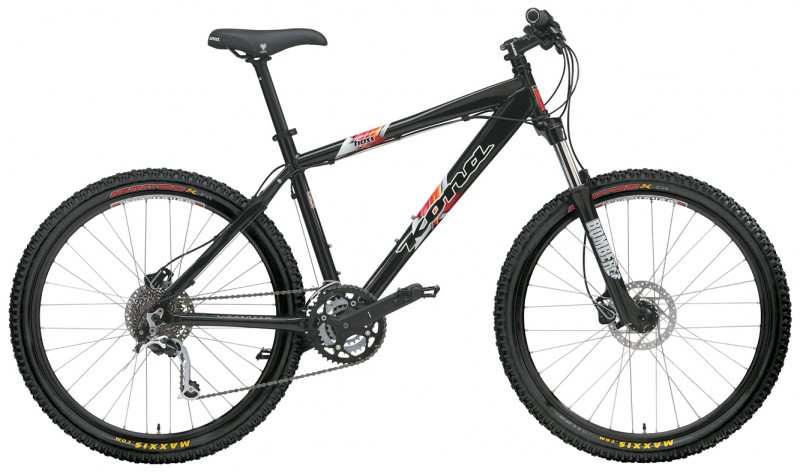

Kona Hoss (MSRP $1099) - Clydesdale, Kona Clump 7005 Aluminium. Marzocchi Dirt Jumper 2 100mm Travel Fork • FSA Step Up ISIS Crank/BB • Kona JackShit Deluxe Pedals • Sun Black Eye Rims/Maxxis Ignitor 26 x 2.35 Tires • Shimano 575 Hydraulic Disc Brakes. Frame sizes: 16", 18", 20", 22"
