Specifications
|
|
Price
|
$5999 |
|
|
Travel |
7" |
|
|
Rear Shock |
Fox DHX Air 5.0 |
|
|
Fork |
Marzocchi 66 ATA 140-180mm (1.5) |
|
|
Headset |
FSA Orbit Extreme Pro 1.5 |
|
|
Cassette |
Shimano XT (11-32, 9spd) |
|
|
Crankarms |
RaceFace Atlas FR |
|
|
Chainguide |
E.Thirteen LG1 |
|
|
Bottom Bracket |
RaceFace X-Type |
|
|
Pedals |
Kona Wah-Wah |
|
|
Chain |
Shimano XT |
|
|
Rear Derailleur |
Shimano XTR Shadow |
|
|
Shifter Pods |
Shimano XT (rh only) |
|
|
Handlebar |
FSA MK230B-OS |
|
|
Stem |
FSA FR200-OS/1.5 |
|
|
Grips |
Kona LOG |
|
|
Brakes |
Shimano Saint Hydraulic Disc |
|
|
Wheelset |
Mavic Crossmax SX |
|
|
Tires |
Maxxis Minion 3C 26x2.5 |
|
|
Seat |
WTB Pure V Race FR |
|
|
Seatpost |
FSA FR270 |
|
|
Size:
|
15 |
15.5 |
16 |
16.5 |
17 |
|
Frame Weight:
|
|
|
|
|
|
|
Bike Weight:
|
36.8 lbs |
36.8 lbs |
36.8 lbs |
36.8 lbs |
36.8 lbs |
|
Headtube Angle:
|
64.5 ° |
64.5 ° |
64.5 ° |
64.5 ° |
64.5 ° |
|
Seattube Angle:
|
71.8 ° |
71.8 ° |
71.8 ° |
71.8 ° |
71.8 ° |
|
Headtube Length:
|
120 mm |
120 mm |
120 mm |
140 mm |
140 mm |
|
Chainstay Length:
|
440 mm |
440 mm |
440 mm |
440 mm |
440 mm |
|
BB Height:
|
355 mm |
355 mm |
355 mm |
355 mm |
355 mm |
|
BB Width:
|
73 mm |
73 mm |
73 mm |
73 mm |
73 mm |
|
Seat Post Diameter:
|
|
|
|
|
|
|
Front Derailleur Width:
|
|
|
|
|
|
|
HeadTube Diameter:
|
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Top Tube Length:
|
559 mm |
572 mm |
584 mm |
597 mm |
610 mm |
|
WheelBase:
|
1162 mm |
1178 mm |
1187 mm |
1203 mm |
1216 mm |
|
Standover Height:
|
800 mm |
796 mm |
793 mm |
797 mm |
799 mm |
|

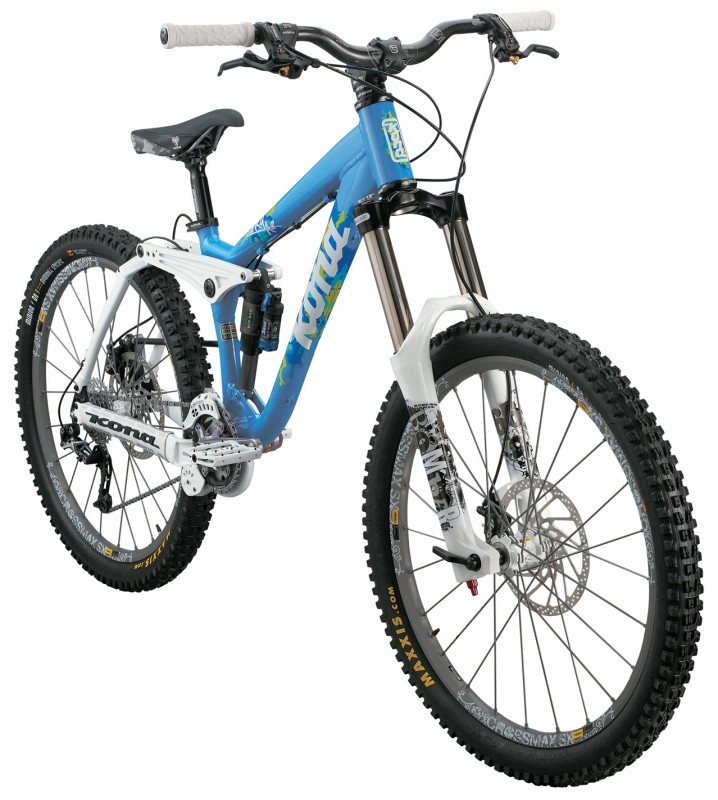

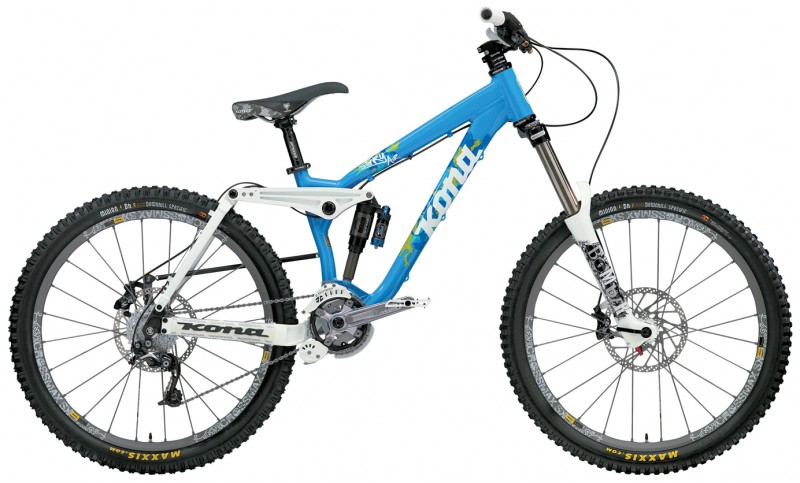

Kona Kona Stinky Air (MSRP $5999) - Freeride bike. Marzocchi 66 ATA 140-180mm Travel Fork • Kona D.O.P.E./Brake Therapy Floating Caliper System • Fox DHX Air 5.0 Rear Shock • Mavic Crossmax SX Wheelset • Shimano Saint Hydraulic Disc Brakes. frame sizes: 15", 15.5", 16", 16.5", 17" Colour: Gloss Light Blue/Gloss White.
