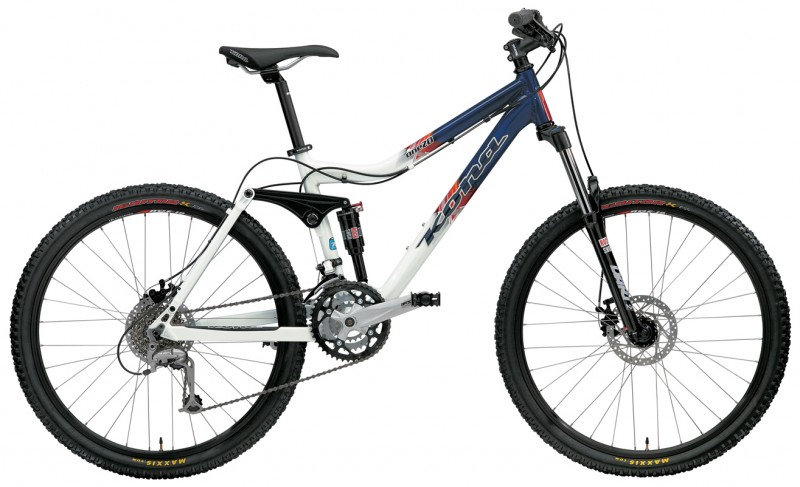

Kona One120

Specifications
Price $1299
Rear Shock RockShox Bar 2.1
Fork RockShox Dart 2 w/Turnkey 120mm
Headset TH
Cassette Shimano Deore (11-32, 9spd)
Crankarms FSA Alpha Drive
Bottom Bracket FSA Powerdrive
Pedals Wellgo LU-A9
Rear Derailleur Shimano LX
Chain KMC HG53
Front Derailleur Shimano Deore
Shifter Pods Shimano Deore
Handlebar Kona Riser
Stem Kona Control
Grips Kona Race Light
Brakes Hayes MX4 Mechanical Disc w/Avid FR-5 levers
Hubs Front - Formula Disc, Rear - Shimano M475 Disc
Spokes Sandvik Stainless 15g
Rim Alex ACE-18
Tires Maxxis Ignitor 26x2.1
Seat Velo VL-1017
Seatpost Kona Thumb
Compare to other XC/All-Mountain Bikes
Size: 14.4 16 17 18 19 20 22
Frame Weight:
Bike Weight: 31.7 lbs 31.7 lbs 31.7 lbs 31.7 lbs 31.7 lbs 31.7 lbs 31.7 lbs
Headtube Angle: 69.8 ° 69.8 ° 69.8 ° 69.8 ° 69.8 ° 69.8 ° 69.8 °
Seattube Angle: 74.3 ° 74.3 ° 74.3 ° 74.3 ° 74.3 ° 74.3 ° 74.3 °
Headtube Length: 125 mm 125 mm 125 mm 130 mm 130 mm 150 mm 150 mm
Chainstay Length: 430 mm 430 mm 430 mm 430 mm 430 mm 430 mm 430 mm
BB Height: 353 mm 353 mm 353 mm 353 mm 353 mm 353 mm 353 mm
BB Width: 73 mm 73 mm 73 mm 73 mm 73 mm 73 mm 73 mm
Seat Post Diameter:
Front Derailleur Width: 31.8 mm 31.8 mm 31.8 mm 31.8 mm 31.8 mm 31.8 mm 31.8 mm
HeadTube Diameter: 1.125 1.125 1.125 1.125 1.125 1.125 1.125
Top Tube Length: 544 mm 557 mm 570 mm 583 mm 596 mm 607 mm 620 mm
WheelBase: 1068 mm 1080 mm 1095 mm 1108 mm 1121 mm 1133 mm 1146 mm
Standover Height: 750 mm 757 mm 771 mm 785 mm 798 mm 820 mm 845 mm
Kona One120 (MSRP $1299) - Kona Race Light 7005 Aluminum Butted 5” Travel Frame • RockShox Dart 2 w/Turnkey 120mm Travel Fork • RockShox Bar 2.1 Rear Shock • FSA Alpha Drive Powerdrive Crankset/BB • Hayes MX4 Disc Brakes. Frame sizes: 14", 16" , 17", 18" ,19" ,20" ,22"
