Specifications
|
|
Price
|
$749 |
|
|
Fork |
Marzocchi Dirt Jumper 3 100mm |
|
|
Headset |
FSA ZST-10 |
|
|
Cassette |
Shimano Acera (11-32, 8spd) |
|
|
Crankarms |
FSA Step Up |
|
|
Bottom Bracket |
RPM ISIS DH |
|
|
Pedals |
Kona Jackshit Deluxe |
|
|
Chain |
Shimano IG-70 |
|
|
Rear Derailleur |
Shimano Acera |
|
|
Front Derailleur |
Shimano Alivio |
|
|
Shifter Pods |
Shimano Acera |
|
|
Handlebar |
Kona OB Riser |
|
|
Stem |
Kona OB |
|
|
Grips |
Cowan Signature |
|
|
Brakes |
Hayes MX4 Mechanical Disc w/Avid FR-5 levers |
|
|
Hubs |
Front - Formula Disc, Rear - Shimano M475 Disc |
|
|
Spokes |
Stainless 14g |
|
|
Rim |
Alex DM-24 |
|
|
Tires |
Maxxis High Roller 26x2.35 |
|
|
Seat |
Kona DJ |
|
|
Seatpost |
Kona Thumb |
|
|
Size:
|
13 |
14 |
16 |
17 |
|
Frame Weight:
|
|
|
|
|
|
Bike Weight:
|
33.4 lbs |
33.4 lbs |
33.4 lbs |
33.4 lbs |
|
Headtube Angle:
|
69 ° |
69 ° |
69 ° |
69 ° |
|
Seattube Angle:
|
71.5 ° |
71.5 ° |
71.5 ° |
71.5 ° |
|
Headtube Length:
|
115 mm |
120 mm |
135 mm |
140 mm |
|
Chainstay Length:
|
425 mm |
425 mm |
425 mm |
425 mm |
|
BB Height:
|
330 mm |
330 mm |
330 mm |
330 mm |
|
BB Width:
|
73 mm |
73 mm |
73 mm |
73 mm |
|
Seat Post Diameter:
|
|
|
|
|
|
Front Derailleur Width:
|
34.9 mm |
34.9 mm |
34.9 mm |
34.9 mm |
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
550 mm |
571 mm |
606 mm |
622 mm |
|
WheelBase:
|
1050 mm |
1071 mm |
1107 mm |
1123 mm |
|
Standover Height:
|
747 mm |
756 mm |
785 mm |
789 mm |
|

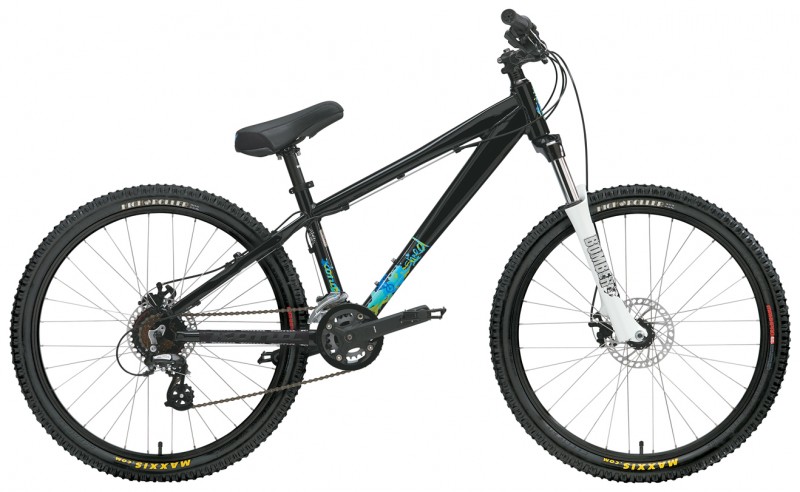

Kona Shred (MSRP $749) - Kona Clump 7005 Aluminum Frame • Marzocchi Dirt Jumper 3 100mm Travel Fork • FSA Step Up ISIS Crank/BB • Kona JackShit Deluxe Pedals • Hayes MX4 Disc Brakes. Frame sizes: XS (13"), S (14"), M (16"), L (17")
