Specifications
|
|
Price
|
$2999 |
|
|
Travel |
8" |
|
|
Rear Shock |
Fox Van R |
|
|
Fork |
Marzocchi 888 RCV 200mm |
|
|
Headset |
TH |
|
|
Cassette |
Shimano Deore (11-32, 9-spd) |
|
|
Crankarms |
RaceFace Ride DH |
|
|
Chainguide |
E13 SRS ST |
|
|
Bottom Bracket |
RaceFace X-Type |
|
|
Pedals |
Kona Jackshit |
|
|
Chain |
Shimano Deore |
|
|
Rear Derailleur |
Shimano XT Shadow |
|
|
Shifter Pods |
Shimano Deore (RH Only) |
|
|
Handlebar |
Kona OB Riser |
|
|
Stem |
Kona OB |
|
|
Grips |
Kona LOG |
|
|
Brakes |
Hayes Hydraulic Stroker Ace V8 |
|
|
Hubs |
Front - Formula DH. Rear - Sun Ringle Demon 12mm |
|
|
Spokes |
Sandvik Stainless 14g |
|
|
Rim |
Alex AL FR-32 |
|
|
Tires |
Maxxis Minion 26x2.5 |
|
|
Seat |
WTB Pure V Race |
|
|
Seatpost |
Kona OB |
|
|
Size:
|
Small |
Medium |
Large |
|
Frame Weight:
|
|
|
|
|
Bike Weight:
|
43.9 lbs |
43.9 lbs |
43.9 lbs |
|
Headtube Angle:
|
64 ° |
64 ° |
64 ° |
|
Seattube Angle:
|
72.9 ° |
72.5 ° |
72.2 ° |
|
Headtube Length:
|
100 mm |
115 mm |
125 mm |
|
Chainstay Length:
|
447 mm |
447 mm |
447 mm |
|
BB Height:
|
335 mm |
335 mm |
335 mm |
|
BB Width:
|
83 mm |
83 mm |
83 mm |
|
Seat Post Diameter:
|
|
|
|
|
Front Derailleur Width:
|
|
|
|
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
564 mm |
591 mm |
618 mm |
|
WheelBase:
|
1163 mm |
1188 mm |
1213 mm |
|
Standover Height:
|
791 mm |
796 mm |
801 mm |
|

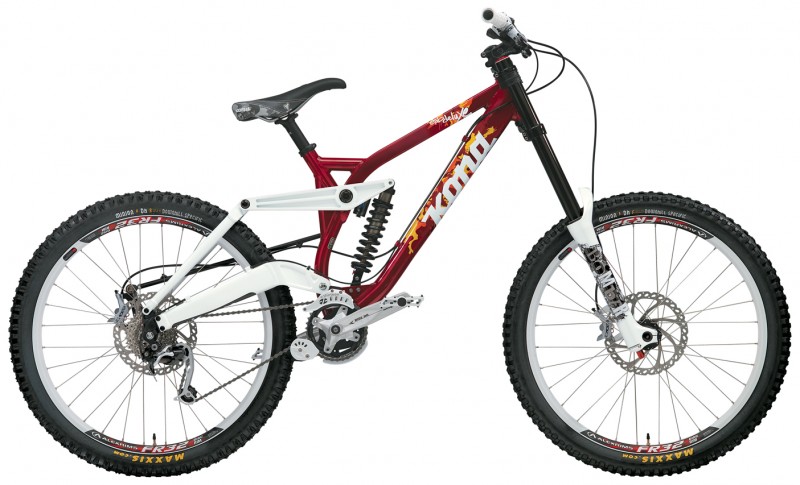

Kona Stab Deluxe (MSRP $2999) - Kona Supreme 8” Travel DH Frame • Kona D.O.P.E./Brake Therapy Floating Caliper System • Marzocchi 888 RCV 200mm Travel Fork • E. Thirteen Chainguide • Hayes Stroker Ace Hydraulic Disc Brakes. Frame sizes: Short, Med, Long. Colour: Gloss Red/Gloss White
