Specifications
|
|
Price
|
$2199
|
|
|
Travel |
7" |
|
|
Rear Shock |
Marzocchi Roco Coil R |
|
|
Fork |
Marzocchi 66 RCV 180mm (1.5 |
|
|
Headset |
FSA Big Fat Pig (1.5) |
|
|
Cassette |
Shimano Deore (11-32, 9-spd) |
|
|
Crankarms |
RaceFace Ride DH |
|
|
Chainguide |
E.Thirteen SRS ST |
|
|
Bottom Bracket |
RaceFace X-Type |
|
|
Pedals |
Kona Jackshit |
|
|
Chain |
Shimano Deore |
|
|
Rear Derailleur |
Shimano SLX |
|
|
Shifter Pods |
Shimano Deore (rh only) |
|
|
Handlebar |
Kona OB Riser |
|
|
Stem |
Kona OB |
|
|
Grips |
Kona LOG |
|
|
Brakes |
Hayes Hydraulic Stroker Trail V8 |
|
|
Hubs |
Front - Formula DH, Rear - Shimano M525 Disc |
|
|
Spokes |
Sandvik Stainless 14g |
|
|
Rim |
Alex DM-24 |
|
|
Tires |
Maxxis Minion 26x2.5 |
|
|
Seat |
WTB Pure V Comp |
|
|
Seatpost |
Kona OB |
|
|
Size:
|
15 |
15.5 |
16 |
16.5 |
17 |
|
Frame Weight:
|
|
|
|
|
|
|
Bike Weight:
|
41.3 lbs |
41.3 lbs |
41.3 lbs |
41.3 lbs |
41.3 lbs |
|
Headtube Angle:
|
64.5 ° |
64.5 ° |
64.5 ° |
64.5 ° |
64.5 ° |
|
Seattube Angle:
|
71.8 ° |
71.8 ° |
71.8 ° |
71.8 ° |
71.8 ° |
|
Headtube Length:
|
120 mm |
120 mm |
120 mm |
140 mm |
140 mm |
|
Chainstay Length:
|
440 mm |
440 mm |
440 mm |
440 mm |
440 mm |
|
BB Height:
|
355 mm |
355 mm |
355 mm |
355 mm |
355 mm |
|
BB Width:
|
73 mm |
73 mm |
73 mm |
73 mm |
73 mm |
|
Seat Post Diameter:
|
|
|
|
|
|
|
Front Derailleur Width:
|
|
|
|
|
|
|
HeadTube Diameter:
|
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Top Tube Length:
|
559 mm |
572 mm |
584 mm |
597 mm |
610 mm |
|
WheelBase:
|
1162 mm |
1178 mm |
1187 mm |
1203 mm |
1216 mm |
|
Standover Height:
|
800 mm |
796 mm |
793 mm |
797 mm |
799 mm |
|

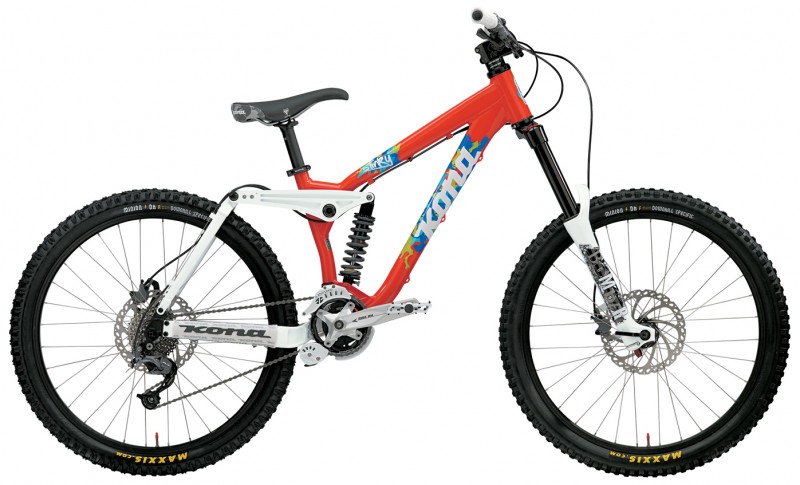

Kona Stinky (MSRP $2199) - Kona 7” Travel 4-Bar Clump Frameset • Marzocchi 66 RCV 180mm Travel Fork • Marzocchi Roco Coil R Rear Shock • E. Thirteen Chainguide • Hayes Stroker Trail Hydraulic Disc Brakes. Frame sizes: 15", 15.5", 16", 16.5", 17"
