Specifications
|
|
Price
|
$1199.99
|
|
|
Fork |
Marzocchi Dirt Jumper III, 20mm Dropouts, 100mm of Travel |
|
|
Headset |
FSA Hammer |
|
|
Crankarms |
SA X-Drive BMX with 36 Tooth Chainring |
|
|
Bottom Bracket |
FSA X-Drive Euro |
|
|
Pedals |
BMX Platform |
|
|
Chain |
KMC |
|
|
Handlebar |
FSA Maximus Riser, Double Butted, 40mm Rise |
|
|
Stem |
Gravity DH |
|
|
Grips |
Marin Locking with Drop Guard End Plugs |
|
|
Brakes |
Avid Juicy 3 Hydraulic Disc |
|
|
Hubs |
Pro Alloy Quad Sealed, 32 Hole Disc with 20mm Through Axle, Single Speed Rear |
|
|
Rim |
WTB Dual Duty Freeride, Double Wall, 32 Hole |
|
|
Tires |
Maxxis Holy Roller , 26" x 2.4" |
|
|
Seat |
WTB Jaxon V |
|
|
Seatpost |
FSA FR-200, 2014, 27.2mm x 350mm |
|
|
Size:
|
14" |
|
Frame Weight:
|
|
|
Bike Weight:
|
32.9 lbs |
|
Headtube Angle:
|
69 ° |
|
Seattube Angle:
|
73 ° |
|
Headtube Length:
|
105 mm |
|
Chainstay Length:
|
404 mm |
|
BB Height:
|
346 mm |
|
BB Width:
|
|
|
Seat Post Diameter:
|
27.2 " |
|
Front Derailleur Width:
|
|
|
HeadTube Diameter:
|
1.125 |
|
Top Tube Length:
|
562.5 mm |
|
WheelBase:
|
1070 mm |
|
Standover Height:
|
|
|

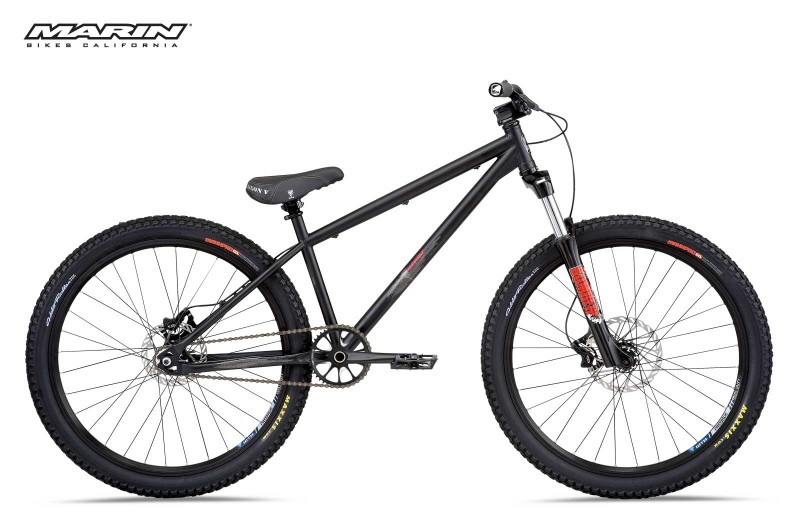

Marin Alcatraz (MSRP $1199.99) - Marins dirt jumping bike, the Alcatraz.
Weight is a medium frame, with pedals.
