Specifications
|
|
Release Date
|
2009 |
|
|
Price
|
$4999.99 |
|
|
Travel |
170 |
|
|
Rear Shock |
Fox DHX Air 5.0 with Air Spring Adjustment, Rebound Adjustment, ProPedal Adjustment, Boost Valve Adjustment, Bottom Resistance Adjustment and Schraeder Tuning Range Adjustment |
|
|
Fork |
RockShox Totem Coil, 180mm of Travel, with External Rebound and Compression Adjustment, Mission Control Damping, with Maxle 360 20mm Axle and 1.5" Steerer |
|
|
Headset |
Orbit DL, 1.5", Threadless with Forged Alloy Cups |
|
|
Cassette |
Shimano XT, 11-34, 9 Speed |
|
|
Crankarms |
Shimano Saint, 36/22 |
|
|
Chainguide |
E-13 Shift Guide Dual Ring Security and Saint Bashguard |
|
|
Bottom Bracket |
Shimano with HollowTech II Arms Big Pipe Billet Integrated with Crankset |
|
|
Pedals |
Syncros Meat Hook |
|
|
Chain |
Shimano HG73 |
|
|
Rear Derailleur |
Shimano Saint Shadow, Front: Shimano SLX |
|
|
Front Derailleur |
Shimano SLX |
|
|
Shifter Pods |
Shimano Saint, 2 Way and Instant Release, 9 Speed |
|
|
Handlebar |
Syncros FR, Double Butted 2014 Alloy, OS-31.8, 20mm Rise |
|
|
Stem |
Syncros FR, Threadless, with 31.8mm Bar Clamp |
|
|
Grips |
Marin FR Locking with Alloy Pro Drop Guard End Plug |
|
|
Brakes |
Shimano Saint Hydraulic Disc |
|
|
Hubs |
Shimano SAINT, 32 Hole Disc with Centerlock, 20mm Front. |
|
|
Rim |
Mavic EX-325, 32 Hole Disc |
|
|
Tires |
Kenda Nevegal, 26" x 2.5", Stick-E Rubber |
|
|
Seat |
WTB Pure V Race with Love Channel and Comfort Zone, Cromoly Rails |
|
|
Seatpost |
Syncros Derived, 25mm Offset, 2014, 31.6mm x 400mm |
|
|
Size:
|
S |
M |
L |
|
Frame Weight:
|
|
|
|
|
Bike Weight:
|
40.4 lbs |
40.4 lbs |
40.4 lbs |
|
Headtube Angle:
|
68 ° |
67 ° |
67 ° |
|
Seattube Angle:
|
69.5 ° |
69.5 ° |
69.5 ° |
|
Headtube Length:
|
130 mm |
130 mm |
130 mm |
|
Chainstay Length:
|
439.4 mm |
439.4 mm |
439.4 mm |
|
BB Height:
|
345.4 mm |
345.4 mm |
345.4 mm |
|
BB Width:
|
|
|
|
|
Seat Post Diameter:
|
31.6 " |
31.6 " |
31.6 " |
|
Front Derailleur Width:
|
|
|
|
|
HeadTube Diameter:
|
1.5 |
1.5 |
1.5 |
|
Top Tube Length:
|
553.7 mm |
579 mm |
599.4 mm |
|
WheelBase:
|
|
1145.5 mm |
1122.6 mm |
|
Standover Height:
|
353.3 mm |
354 mm |
355.1 mm |
|

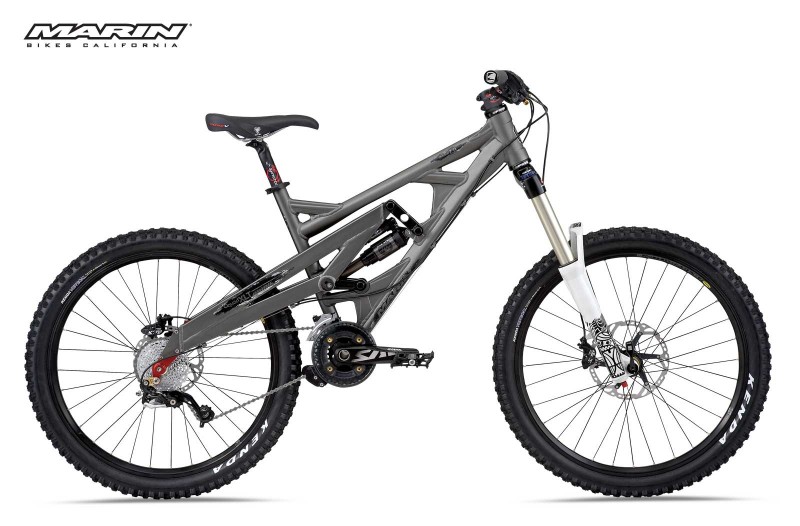

Marin Quake 7.9 (MSRP $4999.99) - Marin's Big All Mountain bike, with Air suspension for lighter weight.
Weight is based off Medium frame with pedals.
