Specifications
|
|
Price
|
$2250
|
|
|
Fork |
Marzocchi 4X World Cup 100 mm travel, 1-1/8” steer tube |
|
|
Headset |
FSA Impact 8D integrated |
|
|
Cassette |
Sram PG-950, 9 speed, 12-26T |
|
|
Crankarms |
Truvativ Stylo, 32T |
|
|
Chainguide |
E-13 LG -1 with Taco |
|
|
Bottom Bracket |
Truvativ Stylo GXP |
|
|
Pedals |
Thin design flat pedal w/cnc, steel pins, blue |
|
|
Chain |
KMC Z-9000 |
|
|
Rear Derailleur |
Sram X-7, 9 speed, medium cage |
|
|
Shifter Pods |
Sram X-5 trigger, 9 speed rear |
|
|
Handlebar |
Funn Full Bore 710 x 65mm rise, 25.4 mm, blue |
|
|
Stem |
Funn Rippa alloy, 25.4 mm, 45mm extension |
|
|
Grips |
Norco design clear rubber |
|
|
Brakes |
Avid Juicy 3 |
|
|
Hubs |
KT 135 x 10 mm nutted, 9 spd, 20mm front. |
|
|
Spokes |
Stainless black 2.0 |
|
|
Rim |
Alien Nation Black Sheep 32 hole, blue |
|
|
Tires |
Intense Micro Knobby 26 x 2.25 |
|
|
Seat |
Pivotal thin, Norco design graphic, hollow bolt Snake design |
|
|
Seatpost |
Pivotal 3D forged alloy, 27.2 mm black |
|
|
Size:
|
S |
M |
|
Frame Weight:
|
|
|
|
Bike Weight:
|
30 lbs |
30 lbs |
|
Headtube Angle:
|
68.5 ° |
68.5 ° |
|
Seattube Angle:
|
73 ° |
73 ° |
|
Headtube Length:
|
115 mm |
115 mm |
|
Chainstay Length:
|
|
|
|
BB Height:
|
323 mm |
323 mm |
|
BB Width:
|
|
|
|
Seat Post Diameter:
|
|
|
|
Front Derailleur Width:
|
|
|
|
HeadTube Diameter:
|
1.125 |
1.125 |
|
Top Tube Length:
|
565 mm |
578 mm |
|
WheelBase:
|
1051 mm |
1063 mm |
|
Standover Height:
|
735 mm |
731 mm |
|

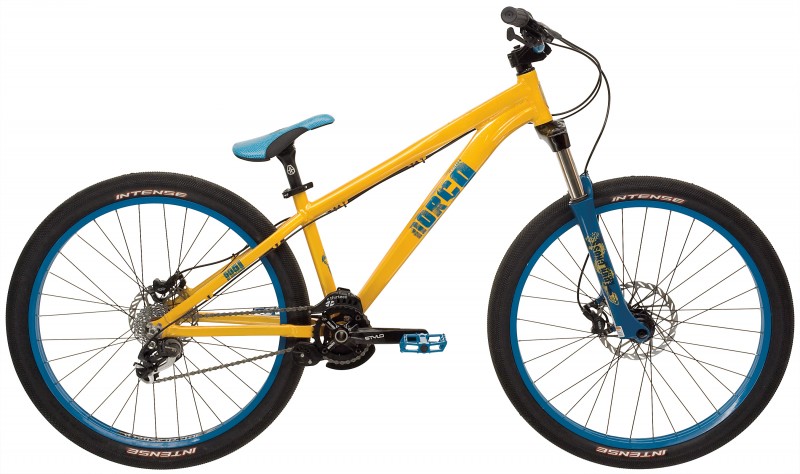

Norco 4 Hun (MSRP $2250) - * Light weight aluminum frame with an integrated headset, a durable hydraform downtube, forged BB yoke and super light low profile slotted dropouts with stainless steel dropout inserts
* ISCG 05 and old guide mounts, short or long frame options
* Marzocchi 100 mm / 3.9" 4X fork
* Custom Funn bar and stem
* Truvativ Stylo crank
* Sram X5/X7 gearing
* Intense Micro Knobby tires
* Pivotal thin saddle with Norco design cover
Complete bike weight: 30 lbs/13.6 kgs
