Specifications
|
|
Release Date
|
2009 |
|
|
Price
|
$4750 |
|
|
Travel |
199mm-227mm |
|
|
Rear Shock |
Fox DHX-3 w/ factory tuned ProPedal |
|
|
Fork |
Marzocchi 888 RCV, 203 mm of travel, 1-1/8” steer tube |
|
|
Headset |
1.125 |
|
|
Cassette |
Shimano LX , 9 speed, 11-32T |
|
|
Crankarms |
Race Face Evolver DH or Shimano Saint, 170 mm 36T |
|
|
Chainguide |
E-13 SRS Guard with Translucent Red guard |
|
|
Bottom Bracket |
Shimano Saint |
|
|
Pedals |
Flat pedal with sealed bearing, steel pins, grey |
|
|
Chain |
Shimano CN-HG-53, 9 speed |
|
|
Rear Derailleur |
Shimano Saint, 9 speed, medium cage |
|
|
Shifter Pods |
Shimano Saint rapid fire, 9 speed rear |
|
|
Handlebar |
Truvativ Hussefelt 710 mm x 25mm rise, 31.8mm, Grey |
|
|
Stem |
Marzocchi clamp on direct mount 53 mm / 63 mm extension |
|
|
Grips |
Pro Palm lock on grip |
|
|
Brakes |
Shimano Saint, 8” rotor |
|
|
Wheelset |
n/a |
|
|
Hubs |
Shimano Saint, 150 x 12mm, 9 spd |
|
|
Spokes |
Stainless steel, black 2.0 |
|
|
Rim |
WTB Laser Disc FR 30 mm, 32 H, Grey |
|
|
Tires |
WTB Dissent 26 x 2.5, high grip compound, DH casing |
|
|
Seat |
WTB Silverado custom cover, chromoly rails |
|
|
Seatpost |
Truvativ XR double bolt, 27.2 |
|
|
Size:
|
S |
M |
L |
|
Frame Weight:
|
|
|
|
|
Bike Weight:
|
46.0 lbs |
46.0 lbs |
46.0 lbs |
|
Headtube Angle:
|
64.8 ° |
64.8 ° |
64.8 ° |
|
Seattube Angle:
|
71.3 ° |
71.3 ° |
71.3 ° |
|
Headtube Length:
|
125 mm |
125 mm |
125 mm |
|
Chainstay Length:
|
|
|
|
|
BB Height:
|
372 mm |
372 mm |
372 mm |
|
BB Width:
|
68 mm |
|
|
|
Seat Post Diameter:
|
27.2 " |
27.2 " |
27.2 " |
|
Front Derailleur Width:
|
|
|
|
|
HeadTube Diameter:
|
1.5 |
1.5 |
1.5 |
|
Top Tube Length:
|
499 mm |
518 mm |
545 mm |
|
WheelBase:
|
1155 mm |
1170 mm |
1195 mm |
|
Standover Height:
|
770 mm |
767 mm |
768 mm |
|

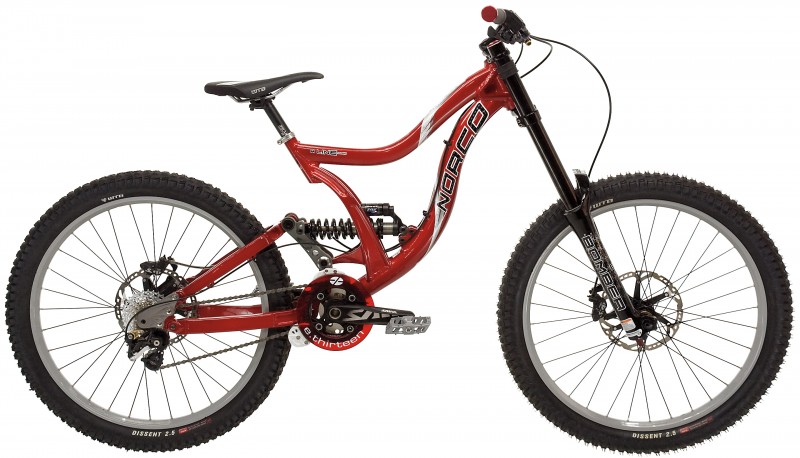

Norco A-Line Park Edition (MSRP $4750) - Burly new 2009 frame with removable rear dropouts
* Internal 1.5 headtube for 1–1/8" headset
* Adjustable BB and HA
* 203-228 mm / 8–9" adjustable travel 888 RCV fork with clamp on stem
* 09 Shimano Saint group
* E–13 guide
* WTB rims, tires, and saddle
* Built for big mountain gravity runs
