Specifications
|
|
Price
|
$3099
|
|
|
Travel |
102- 127 mm |
|
|
Rear Shock |
Fox Float RP 23 |
|
|
Fork |
Rockshox Sid World Cup, 100 mm, 1-1/8” threadless alloy steer tube |
|
|
Headset |
Crank Bros Directset 1-1/8” threadless |
|
|
Cassette |
Shimano XTR, 9 speed, 11-32T |
|
|
Crankarms |
Shimano XTR 44/32/22T, hollowtech 2 |
|
|
Bottom Bracket |
Shimano XTR |
|
|
Pedals |
Crank Bros Egg Beater C |
|
|
Rear Derailleur |
Shimano XTR, 9 speed, long cage |
|
|
Chain |
Shimano CN-HG-93 . 9 speed |
|
|
Front Derailleur |
Shimano XTR 31.8 |
|
|
Shifter Pods |
Shimano XTR rapid fire, 9 speed front and rear |
|
|
Handlebar |
Ritchey WCS low rise carbon 3K, 15 mm rise , 31.8 |
|
|
Stem |
Thomson X4, 31.8 mm bar clamp, 0 deg, black |
|
|
Grips |
Pro Palm lock on grip |
|
|
Brakes |
Avid Elixer CR Carbon |
|
|
Hubs |
Shimano XT, 135 x 10 mm, 6 bolt disc mount, 8/9 sp |
|
|
Spokes |
DT Super Comp butted 1.8 / 1.5 / 1.8, red nipples |
|
|
Rim |
Mavic XC-717 black 32 H |
|
|
Tires |
Schwalbe Racing Ralph 26 x 2.10 evolution folding |
|
|
Seat |
WTB Devo Team Ni cro tubular rail, synthetic leather |
|
|
Seatpost |
Thomson alloy 27.2 mm |
|
|
Size:
|
XS |
S |
M |
L |
XL |
|
Frame Weight:
|
|
|
25 lbs |
|
|
|
Bike Weight:
|
25 lbs |
25 lbs |
|
25 lbs |
25 lbs |
|
Headtube Angle:
|
70.5 ° |
70.5 ° |
70.5 ° |
70.5 ° |
70.5 ° |
|
Seattube Angle:
|
73.5 ° |
73.5 ° |
73.5 ° |
73.0 ° |
73.0 ° |
|
Headtube Length:
|
105 mm |
105 mm |
115 mm |
130 mm |
145 mm |
|
Chainstay Length:
|
|
|
|
|
|
|
BB Height:
|
335 mm |
335 mm |
335 mm |
335 mm |
335 mm |
|
BB Width:
|
|
|
|
|
|
|
Seat Post Diameter:
|
|
|
|
|
|
|
Front Derailleur Width:
|
|
|
|
|
|
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
545 mm |
565 mm |
585 mm |
605 mm |
630 mm |
|
WheelBase:
|
1050 mm |
1064 mm |
1085 mm |
1105 mm |
1131 mm |
|
Standover Height:
|
740 mm |
740 mm |
755 mm |
777 mm |
798 mm |
|

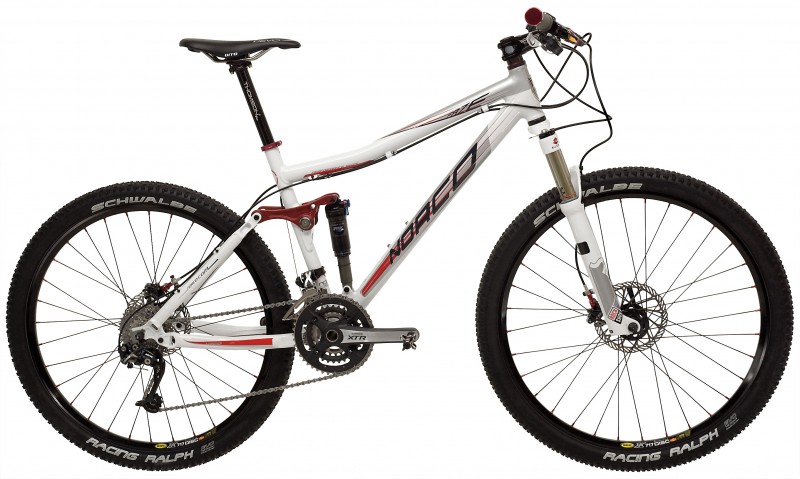

Norco Faze One (MSRP $3099) - Lighter weight than our Fluid series and with a more XC inspired geometry and shorter 102- 127 mm / 4"–5" adjustable travel settings
* A great trail bike, adventure race bike or XC race bike
* New stiff forged link arms and lighter tubing along with the tried and true FSR 4 bar design for the most efficient pedaling performance on climbs and plush suspension for decending
* RockShox Sid World cup fork with 100 mm / 3.9" travel
* Fox Float RP23 rear shock
* Thomson stem and seatpost
* Ritchey Carbon bar
* Crank Bros headset along with Shimano XTR gearing and Avid Elixir carbon brakes
Complete bike weight: 25 lbs/11.4 kgs
