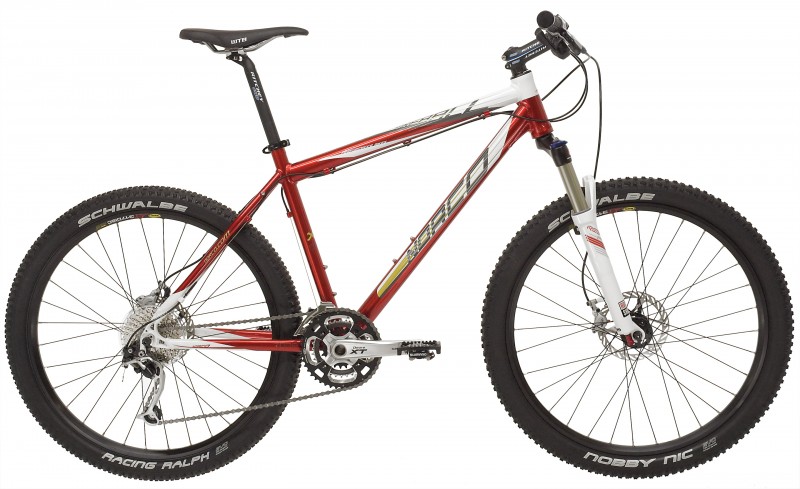

Norco Fireball

Specifications
Price $1625
Fork RockShox Reba SL Dual Air, 100 mm , alloy steer tube
Headset FSA ZS 4D 1-1/8” semi integrated
Cassette Shimano CS-HG50, 9 speed, 11-34T
Crankarms Shimano XT FC-M770 42/32/22T
Bottom Bracket Shimano XT
Pedals Shimano PDM-520
Rear Derailleur Shimano XT RD M-772 SGS, 9 speed, long cage
Chain KMC HG-73
Front Derailleur Shimano Deore FD-M530 31.8
Shifter Pods Shimano SLX , SL-M-660 9 speed rapid-fire
Handlebar Ritchey Pro level Mtn Riser alloy, 20 mm rise
Stem Ritchey Pro level 4 bolt 6 degree, alloy, 31.8mm
Grips Pro Palm lock on
Brakes Avid Juicy 5
Hubs Shimano XT HB M765 QR alloy, cassette hub
Spokes Stainless double butted black 2.0
Rim Mavic XM-317 double wall alloy MTB 32 hole
Tires Schwalbe Knobby Nic front, Racing Ralph rear 26 x 2.25
Seat WTB Silverado Race SL, chromoly rails
Seatpost Ritchey Pro level alloy 2 bolt design 27.2
Compare to other XC/All-Mountain Bikes
Size: 12.5" 15" 17" 18.5" 20" 22"
Frame Weight:
Bike Weight: 27 lbs 27 lbs 27 lbs 27 lbs 27 lbs 27 lbs
Headtube Angle: 70.0 ° 70.5 ° 70.5 ° 70.5 ° 70.5 ° 70.5 °
Seattube Angle: 74.0 ° 73.5 ° 73.5 ° 73.0 ° 72.5 ° 72.0 °
Headtube Length: 120 mm 120 mm 125 mm 135 mm 145 mm 160 mm
Chainstay Length:
BB Height: 305 mm 310 mm 310 mm 310 mm 310 mm 310 mm
BB Width:
Seat Post Diameter:
Front Derailleur Width:
HeadTube Diameter: 1.125 1.125 1.125 1.125 1.125 1.125
Top Tube Length: 553 mm 555 mm 570 mm 561 mm 605 mm 625 mm
WheelBase: 1044 mm 1050 mm 1066 mm 1076 mm 1090 mm 1105 mm
Standover Height: 726 mm 747 mm 767 mm 786 mm 806 mm 836 mm
Norco Fireball (MSRP $1625) - Lightweight XC aluminum frame with butted main frame tubing and semi integrated headtube * RockShox Reba SL dual air fork with 100 mm / 3.9" travel * Ritchey stem, bar and seatpost * Shimano XT rear derailleur and crank with SLX rapid fire shifters * Mavic XM-317 rims * Avid Juicy 5 hydraulic brakes * Shimano 520 pedals Complete bike weight: 27 lbs/12.3 kgs
