Specifications
|
|
Release Date
|
2009 |
|
|
Price
|
$1850 |
|
|
Travel |
114-140 mm |
|
|
Rear Shock |
Fox Float R |
|
|
Fork |
Rockshox Tora 302, 130mm of travel, 1-1/8” steer tube |
|
|
Headset |
FSA TH-855 1-1/8” |
|
|
Cassette |
Shimano HG-40 8 speed, 11-32T |
|
|
Crankarms |
Shimano Alivio, 42/32/22T FC-M410 |
|
|
Bottom Bracket |
Shimano Octalink |
|
|
Pedals |
Wellgo LU-A4 black PP body / steel cage |
|
|
Rear Derailleur |
Shimano Deore, long cage |
|
|
Chain |
KMC Z-72 8 speed |
|
|
Front Derailleur |
Shimano Alivio 31.8 |
|
|
Shifter Pods |
Shimano Alivio rapid fire, 8 speed front and rear |
|
|
Handlebar |
Ritchey Mtn Riser alloy bar, 20 mm rise |
|
|
Stem |
Kalloy 7 deg rise 31.8 mm bar clamp |
|
|
Grips |
Standard rubber VLG-172 grip |
|
|
Brakes |
Avid Juicy 3 |
|
|
Hubs |
Shimano M-475 135 x 10mm, 9 spd, disc |
|
|
Spokes |
Black stainless 2.0 with green alloy nipples |
|
|
Rim |
Alex Ace 24 double wall, 32 hole |
|
|
Tires |
Kenda Nevegal 26 x 2.10 |
|
|
Seat |
WTB Rocket V, synthetic leather cover |
|
|
Seatpost |
Alloy double bolt 27.2 black |
|
|
Size:
|
XS |
S |
M |
L |
XL |
|
Frame Weight:
|
|
|
|
|
|
|
Bike Weight:
|
33 lbs |
33 lbs |
33 lbs |
33 lbs |
33 lbs |
|
Headtube Angle:
|
68.5 ° |
69 ° |
69 ° |
69 ° |
69 ° |
|
Seattube Angle:
|
73.0 ° |
73 ° |
73 ° |
73 ° |
73 ° |
|
Headtube Length:
|
105 mm |
105 mm |
115 mm |
130 mm |
145 mm |
|
Chainstay Length:
|
|
|
|
|
|
|
BB Height:
|
350 mm |
350 mm |
350 mm |
350 mm |
350 mm |
|
BB Width:
|
|
|
|
|
|
|
Seat Post Diameter:
|
|
|
|
|
|
|
Front Derailleur Width:
|
|
|
|
|
|
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
549 mm |
569 mm |
590 mm |
610 mm |
630 mm |
|
WheelBase:
|
1085 mm |
1100 mm |
1121 mm |
1142 mm |
1163 mm |
|
Standover Height:
|
758 mm |
765 mm |
760 mm |
784 mm |
803 mm |
|

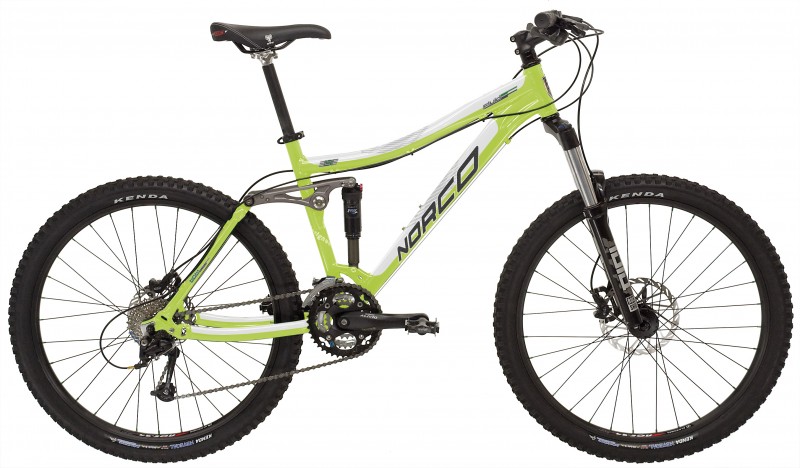

Norco Fluid Four (MSRP $1850) - * ame frame as the Fluid 3 with hydraform aluminum main frame tubing, forged link arms, 5 frame sizes and adjustable travel in a great trail bike
* RockShox Tora Air 130 mm / 5.1" travel fork
* Fox Float R rear shock
* Ritchey bar and WTB saddle
* Shimano Alivio 24 speed gearing
* Avid Juicy 3 hydraulic brakes, double wall Alex rims and Kenda Nevagal tires
Complete bike weight: 33 lbs/15.0 kgs
