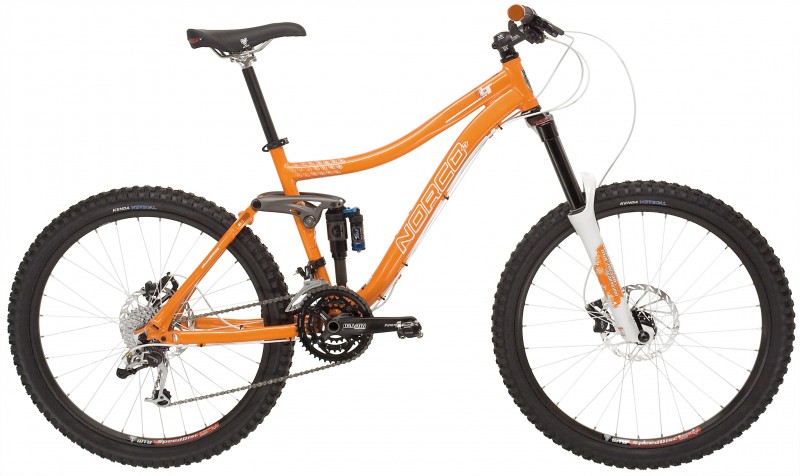

Norco Fluid LT 3

Specifications
Price $2550
Travel 152mm
Rear Shock Fox DHX-Air 3.0
Fork Marzocchi 55 R 160 mm travel, 20 mm axle, 1-1/8” alloy steer tube
Headset FSA TH-857, 1-1/8” threadless
Cassette Sram PG-950, 9 speed, 11-32T
Crankarms Truv ativ Fire X GXP, 44/32/22T
Bottom Bracket Truvativ Fire X GXP
Pedals Shimano PD M-505
Rear Derailleur Sram X-5, 9 speed, long cage
Chain KMC Z-9000, 9 speed
Front Derailleur Shimano Deore, 31.8mm
Shifter Pods Sram X-5 trigger, 9 speed front and rear
Handlebar Truvativ Stylo 30 mm rise, 31.8mm
Stem Truvativ XR alloy, 31.8mm, 5 deg
Grips Pro Palm lock on grip
Brakes Avid Juicy 3
Hubs KT , 20mm axle, sealed bearing, 135 x 10mm, 9 speed.
Spokes Stainless steel white
Rim WTB Speed disc
Tires Kenda Nevegal 26 x 2.35
Seat WTB Rocket V, synthetic leather
Seatpost Alloy double bolt 27.2
Compare to other XC/All-Mountain Bikes
Size: XS S M L XL
Frame Weight:
Bike Weight: 35 lbs 35 lbs 35 lbs 35 lbs 35 lbs
Headtube Angle: 67.55 ° 68 ° 68 ° 68 ° 68 °
Seattube Angle: 73.0 ° 73.0 ° 73.0 ° 72.5 ° 72.5 °
Headtube Length: 110 mm 110 mm 115 mm 130 mm 145 mm
Chainstay Length:
BB Height: 355 mm 355 mm 355 mm 355 mm 355 mm
BB Width:
Seat Post Diameter:
Front Derailleur Width:
HeadTube Diameter: 1.125 1.125 1.125 1.125 1.125
Top Tube Length: 550 mm 570 mm 590 mm 610 mm 625 mm
WheelBase: 1104 mm 1118 mm 1139 mm 1155 mm 1171 mm
Standover Height: 750 mm 739 mm 754 mm 774 mm 798 mm
Norco Fluid LT 3 (MSRP $2550) - * Same all mountain 152 mm / 6" travel frame as the LT1 and LT2 * Marzocchi 55 R 160 mm / 6.3" travel fork with QR20 dropouts * Fox DHX–Air 3.0 rear shock * Truvativ FireX GXP 2 pc crank * Sram X–5 gearing * Avid Juicy 3 hydraulic brakes * WTB rims * Kenda Nevagal tires * Truvativ bar, stem, and seatpost Complete bike weight: 35 lbs/15.9 kgs
