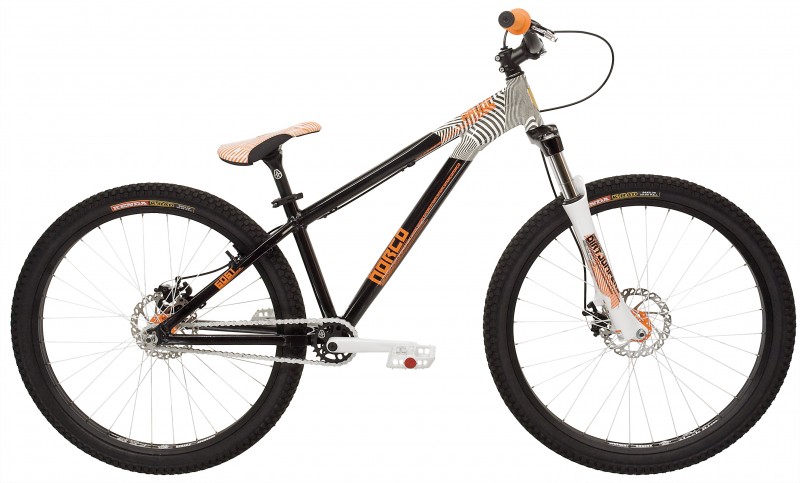

Norco Havoc

Specifications
Price $999
Fork Marzocchi Dirt Jumper 3, 100mm travel, 1-1/8” steer tube
Headset FSA Impact 8D integrated
Cassette Single 14T conversion sprocket with spacers
Crankarms CR-24C chromoly BMX crank, 28T 3 mm thick sprocket
Bottom Bracket 48 spline, 19 mm axle BMX BB for Euro BB
Pedals Oddessey Twisted pedal, white plastic
Chain KMC K-710 BMX white nano plated
Rear Derailleur Shimano Alivio, 8 speed
Shifter Pods Shimano Alivio, 8 speed rapid fire
Handlebar Alloy 31.8 mm , 670 mm width 50 mm rise bar, black
Stem AS-13 alloy stem 31.8 mm bar, 60 mm ext
Grips Alien Nation Mr. Hand rubber, orange
Brakes Hayes MX-4 mechanical
Hubs KT 135 x 10 nutted, 8 spd, 32 H, orange
Spokes Stainless White 2.0
Rim Alien Nation PBR 26”, 32 hole, black
Tires Kenda K-Rad 26 x 2.30
Seat Pivotal thin seat, custom Norco design cover, hollow bolt
Seatpost Pivotal forged alloy, 27.2
Compare to other DJ/Street/Park Bikes
Size: S M
Frame Weight:
Bike Weight: 32 lbs 32 lbs
Headtube Angle: 68.5 ° 68.5 °
Seattube Angle: 73 ° 73 °
Headtube Length: 115 mm 115 mm
Chainstay Length:
BB Height: 323 mm 323 mm
BB Width:
Seat Post Diameter:
Front Derailleur Width:
HeadTube Diameter: 1.125 1.125
Top Tube Length: 565 mm 578 mm
WheelBase: 1051 mm 1063 mm
Standover Height: 735 mm 731 mm
Norco Havoc (MSRP $999) - Aluminum low standover dirt jump / street / park frame with slotted dropout and micro gussets * Integrated headset and forged BB yoke * Marzocchi Dirt Jumper 3 fork with 100 mm / 3.9" travel * Chromoly 3 pc BMX crank with single speed compact 25T/12T gearing * Rear hub offers spacers for mod to gears * Hayes front and rear disc brakes * Pivotal seatpost with custom thin design saddle * White BMX chain and Odyssey Twisted pedals Complete bike weight: 32 lbs/14.5 kgs
