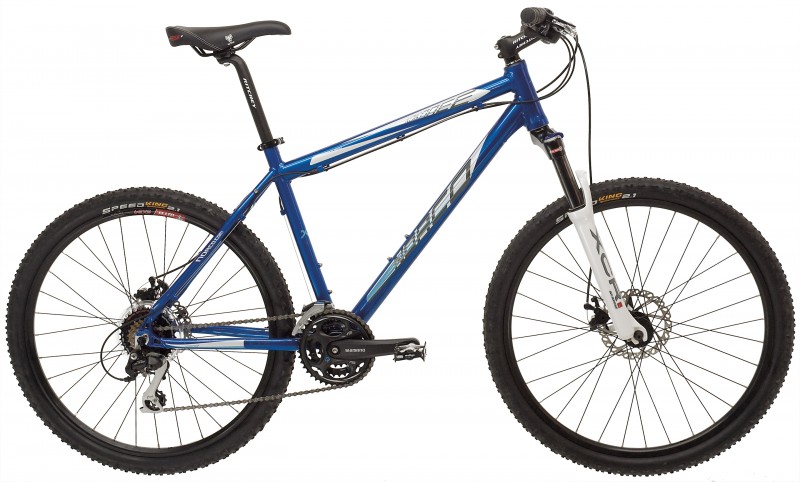

Norco Kokanee

Specifications
Price $575
Fork Suntour XCR-LO with lock-out, 100mm
Headset CH-918 semi integrated
Cassette Shimano CS-HG30, 8 speed, long cage
Crankarms Shimano Acera FC-M311, 42/32/22T
Bottom Bracket CH-52 cartidge
Pedals Wellgo MTB alloy / steel
Rear Derailleur Shimano Alivio RD-M410, 8 speed, 11-32T
Chain KMC Z-72
Front Derailleur Shimano Acera SL-M360 31.8
Shifter Pods Shimano Acera SL-M360, 8 speed rapidfire
Handlebar Ritchey Mtn Riser alloy, 20 mm rise
Stem Ritchey 4 bolt 6 degree, alloy, 31.8mm
Grips WTB DC Trail grip dual compound
Brakes Hayes MX-4 V6 mechanical disc brakes
Hubs Formula DC-20R QR alloy, DC-22R Front.
Spokes Stainless black 2.0
Rim DDM-1 disc double wall 32 hole
Tires Continental SpeedKing 26 x 2.10
Seat WTB Rocket V Comp.
Seatpost Ritchey alloy single bolt 27.2
Size: 12.5" 15" 17" 18.5" 20" 22"
Frame Weight:
Bike Weight: 30 lbs 30 lbs 30 lbs 30 lbs 30 lbs 30 lbs
Headtube Angle: 70.0 ° 70.5 ° 70.5 ° 70.5 ° 70.5 ° 70.5 °
Seattube Angle: 74 ° 73.5 ° 73.5 ° 73 ° 72.5 ° 72.0 °
Headtube Length: 120 mm 125 mm 125 mm 140 mm 155 mm 170 mm
Chainstay Length:
BB Height: 300 mm 305 mm 305 mm 300 mm 300 mm 310 mm
BB Width:
Seat Post Diameter:
Front Derailleur Width:
HeadTube Diameter: 1.125 1.125 1.125 1.125 1.125 1.125
Top Tube Length: 540 mm 555 mm 570 mm 585 mm 600 mm 615 mm
WheelBase: 1044 mm 1050 mm 1066 mm 1072 mm 1082 mm 1092 mm
Standover Height: 726 mm 747 mm 767 mm 773 mm 826 mm
Norco Kokanee (MSRP $575) - Lightweight aluminum XC frame * Suntour XCR 100 mm / 3.9" travel fork with lockout * Ritchey bar, stem and seatpost * Hayes mechanical disc brakes * Shimano 24 speed gearing with Alivio rear derailleur and Acera rapid fire shifters * Double wall rims with Continental Speed King tires and a WTB saddle and grips Complete bike weight: 30 lbs/13.6 kgs
