Specifications
|
|
Price
|
$2650
|
|
|
Fork |
Marzocchi 55 R, 160mm of travel, 20 mm axle, 1-1/8” alloy steer tube |
|
|
Headset |
FSA No. 20, sealed bearing |
|
|
Cassette |
Sram PG-950, 9 speed, 11-32T |
|
|
Crankarms |
Truvativ Hammerschmidt crank / BB / dual internal drive |
|
|
Bottom Bracket |
Truvativ Hammerschmidt |
|
|
Pedals |
Alloy flat pedal, sealed bearing, steel pins, custom colour |
|
|
Chain |
Sram PC-951 |
|
|
Rear Derailleur |
Sram X-7, 9 speed, medium cage |
|
|
Front Derailleur |
Truvativ Hammerschmidt |
|
|
Shifter Pods |
Sram X-9 trigger, 9 speed front and rear |
|
|
Handlebar |
Truvativ Hussefelt double butted, 38 mm rise, 31.8mm, grey |
|
|
Stem |
Truvativ Hussefelt alloy, 31.8mm, 50mm extension, grey |
|
|
Grips |
Pro Palm lock on grip |
|
|
Brakes |
Avid Juicy 5 |
|
|
Hubs |
Shimano M-475, 8/9 spd cassette, 20mm front. |
|
|
Spokes |
Stainless silver 2.0 |
|
|
Rim |
Sun MTX 29 double wall, 32 hole, grey colour |
|
|
Tires |
Kenda Nevegal 26 x 2.35, Stick E rubber |
|
|
Seat |
Norco Shore, short profile, custom cover |
|
|
Seatpost |
Truvativ XR double bolt, 30.9 |
|
|
Size:
|
XS |
S |
M |
L |
XL |
|
Frame Weight:
|
|
|
|
|
|
|
Bike Weight:
|
33 lbs |
33 lbs |
33 lbs |
33 lbs |
33 lbs |
|
Headtube Angle:
|
66.5 ° |
67 ° |
67 ° |
67 ° |
67 ° |
|
Seattube Angle:
|
71.0 ° |
71 ° |
71 ° |
71 ° |
71 ° |
|
Headtube Length:
|
120 mm |
120 mm |
125 mm |
135 mm |
150 mm |
|
Chainstay Length:
|
|
|
|
|
|
|
BB Height:
|
322 mm |
327 mm |
327 mm |
327 mm |
327 mm |
|
BB Width:
|
|
|
|
|
|
|
Seat Post Diameter:
|
|
|
|
|
|
|
Front Derailleur Width:
|
|
|
|
|
|
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
550 mm |
573 mm |
595 mm |
619 mm |
635 mm |
|
WheelBase:
|
1071 mm |
1090 mm |
1112 mm |
1137 mm |
1154 mm |
|
Standover Height:
|
773 mm |
779 mm |
789 mm |
805 mm |
834 mm |
|

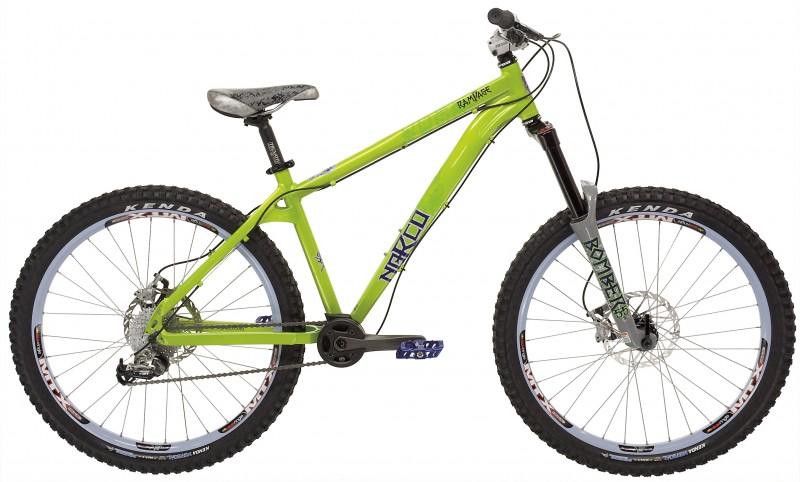

Norco Rampage (MSRP $2650) - * Norco low stand over shore hardtail design frame with durable aluminum hydraform downtube
* Short chainstays with a forged BB yoke for tire clearance
* Marzocchi 55R 160 mm / 6.3" travel fork with 20 mm dropouts
* Truvativ Hammerschmidt crank with internal 2 speed design eliminating a front derailleur and chainguide
* Sram X–7/X9 gearing
* Avid Juicy 5 hydraulic brakes
* Sun MTX rims
* Sealed bearing FSA headset
Complete bike weight: 33 lbs/15.0 kgs
