Specifications
|
|
Price
|
$1225
|
|
|
Fork |
Marzocchi Dirt Jumper 3, 100 mm of travel |
|
|
Headset |
FSA Impact 8D integrated |
|
|
Cassette |
Sram PG-830, 8 speed, 11-28T |
|
|
Crankarms |
Truvativ Ruktion, 34T |
|
|
Chainguide |
Black Spire NSX 1 guide, black guard |
|
|
Bottom Bracket |
Howitzer Spline BB |
|
|
Pedals |
Oddessey Twisted pedal black plastic |
|
|
Chain |
KMC Z-72 |
|
|
Rear Derailleur |
Sram X-5, 8 speed, medium cage |
|
|
Shifter Pods |
Sram X-5 trigger, 8 speed rear |
|
|
Handlebar |
Funn Full Bore 710 x 65 mm rise, 25.4 mm, black |
|
|
Stem |
Funn Rippa, 45 mm ext. black |
|
|
Grips |
Norco custom design, blue |
|
|
Brakes |
Hayes Mechanical |
|
|
Hubs |
KT 135 x 10 mm nutted, 8 spd 32h, blue ano |
|
|
Spokes |
Stainless black 2.0 |
|
|
Rim |
Alien Nation PBR 26” , 32 hole black |
|
|
Tires |
Kenda K-Rad 26 x 2.30 special colour dark blue |
|
|
Seat |
Pivotal thin seat, Norco custom design cover, hollow bolt |
|
|
Seatpost |
Pivotal Tron alloy post 25.4 |
|
|
Size:
|
S |
M |
|
Frame Weight:
|
|
|
|
Bike Weight:
|
34 lbs |
34 lbs |
|
Headtube Angle:
|
69.5 ° |
69.5 ° |
|
Seattube Angle:
|
72 ° |
72 ° |
|
Headtube Length:
|
110 mm |
110 mm |
|
Chainstay Length:
|
|
|
|
BB Height:
|
320 mm |
320 mm |
|
BB Width:
|
|
|
|
Seat Post Diameter:
|
|
|
|
Front Derailleur Width:
|
|
|
|
HeadTube Diameter:
|
1.125 |
1.125 |
|
Top Tube Length:
|
565 mm |
580 mm |
|
WheelBase:
|
1023 mm |
1038 mm |
|
Standover Height:
|
734 mm |
729 mm |
|

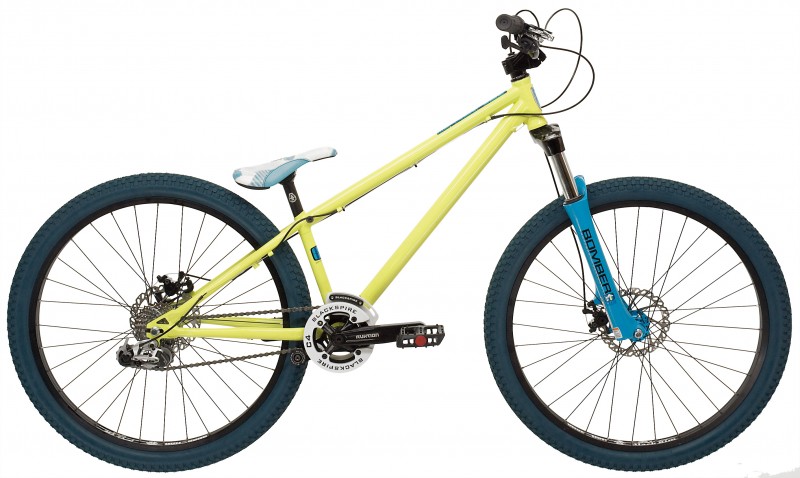

Norco Ryde (MSRP $1225) - * Chromoly butted frame with slotted compact dropouts, integrated seatpost clamp and integrated headset
* Super short chainstays and low standover with 2 frame length options
* Marzocchi Dirt Jumper 3 fork with 100 mm / 3.9" travel
* Custom Funn bar and stem
* Pivotal saddle and post with custom thin design Norco cover
* Sram X5 gearing
* Odyssey Twisted pedals
* Hayes disc brakes
* Alienation rims and custom colour K–Rad tires
Complete bike weight: 34 lbs/15.5 kgs
