Specifications
|
|
Price
|
$4589
|
|
|
Travel |
179mm |
|
|
Rear Shock |
Fox DHX-5 |
|
|
Fork |
Rockshox Totem Coil, 180mm of travel, 1.5” alloy steer tube |
|
|
Headset |
FSA Orbit Extreme Pro 1.5” alloy |
|
|
Cassette |
Sram PG-970 DH, 9 speed, 11-26T |
|
|
Crankarms |
Truvativ Hammerschmidt internal double, built in guard, bb |
|
|
Chainguide |
none |
|
|
Bottom Bracket |
Truvativ Hammerschmidt |
|
|
Pedals |
DMR Magnesium, steel pins, red |
|
|
Rear Derailleur |
Truvativ Hammerschmidt / Sram X-9, 9 speed, medium cage |
|
|
Chain |
KMC X-9 Gold Ti nitrate |
|
|
Front Derailleur |
Truvativ Hammerschmidt |
|
|
Shifter Pods |
Sram X-9 trigger, 9 speed front and rear |
|
|
Handlebar |
Funn Fatboy triple butted 50mm rise, 31.8mm, custom graphic |
|
|
Stem |
Truvativ Holzfeller 1.5 alloy, 31.8mm, 40mm / 50 mm extension |
|
|
Grips |
Pro Palm lock on grip |
|
|
Brakes |
Avid Elixer CR, 8” rotor |
|
|
Wheelset |
n/a |
|
|
Hubs |
Sun Jumping Flea, 150 x 12mm, 9 spd, sealed bearings |
|
|
Spokes |
DT Comp. stainless black 2.0 / 1.8 / 2.0 |
|
|
Rim |
Sun Equilizer welded 29 mm, 32 hole |
|
|
Tires |
Kenda Nevegal 26 x 2.5, Stick E rubber |
|
|
Seat |
WTB Rocket V Comp, chromoly rail |
|
|
Seatpost |
Truvativ XR double bolt, 30.9 |
|
|
Size:
|
S |
M |
L |
|
Frame Weight:
|
|
|
|
|
Bike Weight:
|
40.0 lbs |
40.0 lbs |
40.0 lbs |
|
Headtube Angle:
|
66.0 ° |
66.0 ° |
66.0 ° |
|
Seattube Angle:
|
71.3 ° |
71.3 ° |
71.3 ° |
|
Headtube Length:
|
125 mm |
130 mm |
135 mm |
|
Chainstay Length:
|
|
|
|
|
BB Height:
|
363 mm |
363 mm |
363 mm |
|
BB Width:
|
|
|
|
|
Seat Post Diameter:
|
30.9 " |
30.9 " |
30.9 " |
|
Front Derailleur Width:
|
|
|
|
|
HeadTube Diameter:
|
1.5 |
1.5 |
1.5 |
|
Top Tube Length:
|
519 mm |
541 mm |
569 mm |
|
WheelBase:
|
1124 mm |
1147 mm |
1172 mm |
|
Standover Height:
|
750 mm |
755 mm |
765 mm |
|

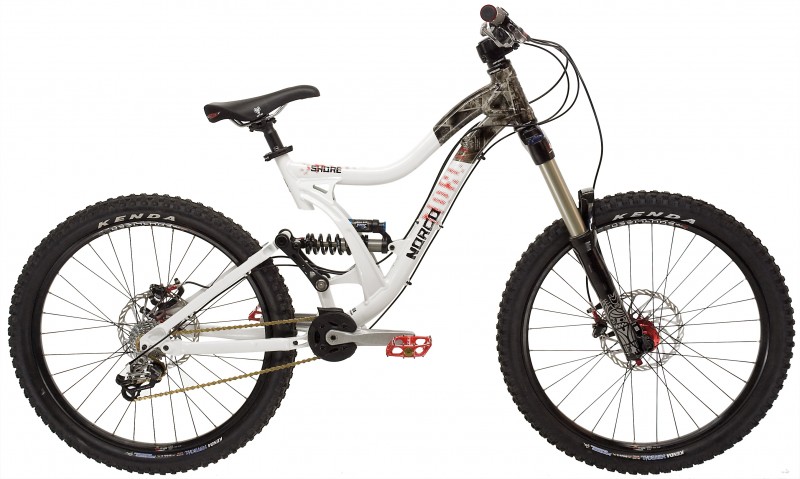

Norco Shore One (MSRP $4589) - Hardcore freeride 179 mm / 7" travel bike for big Shore style lines
* Available in 3 Sizes
* RockShox 7" Totem Coil fork with 1.5" forged headtube
* 150 x 12 Maxle through hole rear dropouts, forged yoke and link arms Hydraform main frame tubing for maximum standover and low center of gravity
* Truvativ Hammerschmidt crank eliminates the chainguides and front derailleurs
* Sram X9 Avid Elixir 8" rotor brakes and colour matched Sun Jumping Flea hubs
Complete bike weight: 34 lbs/15.5 kgs
