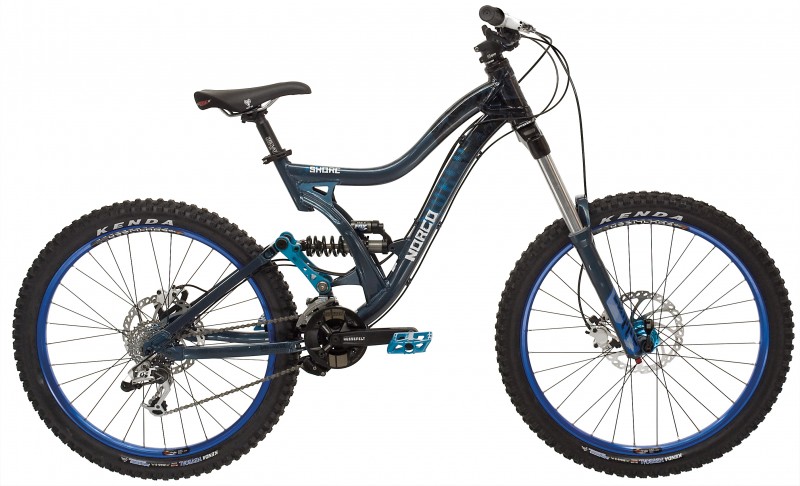

Norco Shore Three

Specifications
Price $1785
Travel 179mm
Rear Shock Fox Van R Coil
Fork Rockshox Domain 302 Coil, 180mm of travel, 1.5” alloy steer tube
Headset FSA 1.5” Big Fat Pig, chromoly
Cassette Sram PG-830, 8 speed, 11-32T
Crankarms Truvativ Hussefelt, 22/32T 170/175 mm
Chainguide E-13 DRS Spec 2
Bottom Bracket Howitzer Spline BB
Pedals Alloy flat pedal, Orange
Rear Derailleur Shimano Alivio FDM-412 31.8 / Sram X-5, 8 speed, medium cage
Chain KMC Z-72 8 speed
Front Derailleur Shimano Alivio FDM-412 31.8
Shifter Pods Sram X-5 trigger, 8 speed front and rear
Handlebar Funn Fatboy, 710x50mm rise, 31.8, custom graphic
Stem Truvativ XR, alloy, 31.8mm, 60mm ext.
Grips Norco custom clear rubber
Brakes Hayes Stroker Trail, 8” rotor
Wheelset n/a
Hubs KT Q-Lite, 150 x 12mm, 9 spd, sealed bearing, blue
Spokes Stainless steel black 2.0
Rim Sun Equilizer 29, 32 hole, blue
Tires Kenda Nevegal 26 x 2.5, Stick E rubber, CAP casing
Seat WTB Rocket V Comp, Chromoly rails
Seatpost Truvativ XR double bolt, 30.9
Compare to other XC/All-Mountain Bikes
Size: S M L
Frame Weight:
Bike Weight: 41.0 lbs 41.0 lbs 41.0 lbs
Headtube Angle: 66.0 ° 66.0 ° 66.0 °
Seattube Angle: 71.3 ° 71.3 ° 71.3 °
Headtube Length: 125 mm 130 mm 135 mm
Chainstay Length:
BB Height: 363 mm 363 mm 363 mm
BB Width:
Seat Post Diameter: 30.9 " 30.9 " 30.9 "
Front Derailleur Width: 31.8 mm 31.8 mm 31.8 mm
HeadTube Diameter: 1.5 1.5 1.5
Top Tube Length: 519 mm 541 mm 569 mm
WheelBase: 1124 mm 1147 mm 1172 mm
Standover Height: 750 mm 755 mm 765 mm
Norco Shore Three (MSRP $1785) - Same 179 mm / 7" travel frame as the Shore 1 also in three frame sizes * Rockshox Domain 1.5" fork and a Fox Van R coil rear shock * Funn bar with FSA stem and headset * Truvativ Hussefelt dual ring with E–13 DRS dual ring guide * Sram X–5 * Hayes Stroker trail with 8" rotors * Colour matched pedals and Sun Equalizer rims
