Specifications
|
|
Price
|
$2650
|
|
|
Travel |
161mm |
|
|
Rear Shock |
Fox Van R Coil shock |
|
|
Fork |
Marzocchi 55 R, 160mm of travel, 1-1/8” steel steer tube |
|
|
Headset |
FSA TH-855 1-1/8” |
|
|
Cassette |
Sram PG-850, 8 speed, 11-32T |
|
|
Crankarms |
FSA Moto X, 22/32T |
|
|
Bottom Bracket |
FSA BB-7000 |
|
|
Pedals |
Alloy flat pedal, Orange |
|
|
Rear Derailleur |
Sram X-5, 9 speed, medium cage |
|
|
Chain |
KMC Z72 8 speed |
|
|
Front Derailleur |
Shimano Alivio 31.8 |
|
|
Shifter Pods |
SRAM X-5, trigger, 9 speed |
|
|
Handlebar |
Funn Fatboy, 710x50mm rise, 31.8, custom graphic |
|
|
Stem |
Truvativ XR, alloy, 31.8mm, 60mm ext. |
|
|
Grips |
Norco clear grip |
|
|
Brakes |
Avid Juicy 3 |
|
|
Hubs |
KT 20 mm axle , sealed bearing hub |
|
|
Spokes |
White Powder coat spokes, Chung Nan |
|
|
Rim |
Alex TD-24 , 32 hole , double wall |
|
|
Tires |
Kenda Nevegal, 2.35 |
|
|
Seat |
WTB Rocket V, kevlar corners |
|
|
Seatpost |
Truvativ XR, double bolt, 30.9 |
|
|
Size:
|
S |
M |
L |
|
Frame Weight:
|
|
|
|
|
Bike Weight:
|
38 lbs |
38 lbs |
38 lbs |
|
Headtube Angle:
|
66.9 ° |
66.9 ° |
66.9 ° |
|
Seattube Angle:
|
72.1 ° |
72.1 ° |
72.1 ° |
|
Headtube Length:
|
125 mm |
130 mm |
135 mm |
|
Chainstay Length:
|
|
|
|
|
BB Height:
|
354 mm |
354 mm |
354 mm |
|
BB Width:
|
|
|
|
|
Seat Post Diameter:
|
|
|
|
|
Front Derailleur Width:
|
|
|
|
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
568 mm |
547 mm |
615 mm |
|
WheelBase:
|
1117 mm |
1140 mm |
1165 mm |
|
Standover Height:
|
738 mm |
744 mm |
755 mm |
|

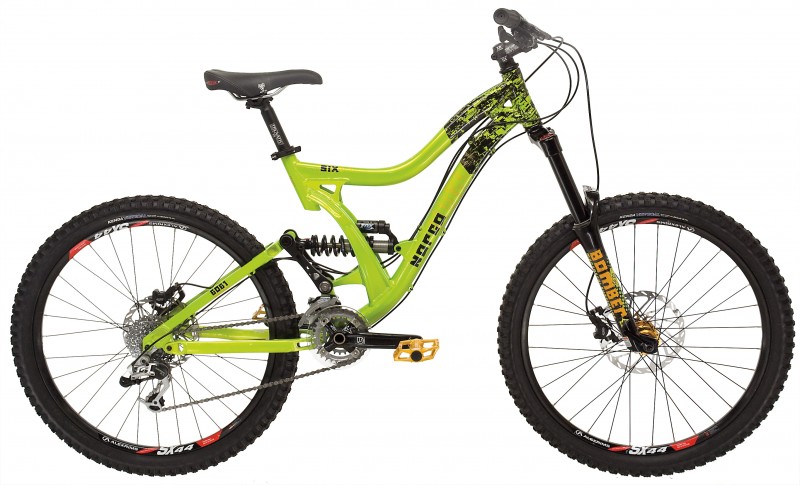

Norco Six Three (MSRP $2650) - * Same frame as the Six 1 and 2 with 135 x 12 Maxle dropouts
* ISCG mounts and a new forged headtube for 2009
* Marzocchi 55 R 160 mm travel fork
* Fox Van R rear shock
* FSA Moto X Exo crank
* Sram X5
* Avid Juicy 3 brakes and Kenda Nevagal tires
* Funn custom bar and Truvativ stem
Complete bike weight: 38 lbs/17.3 kgs
