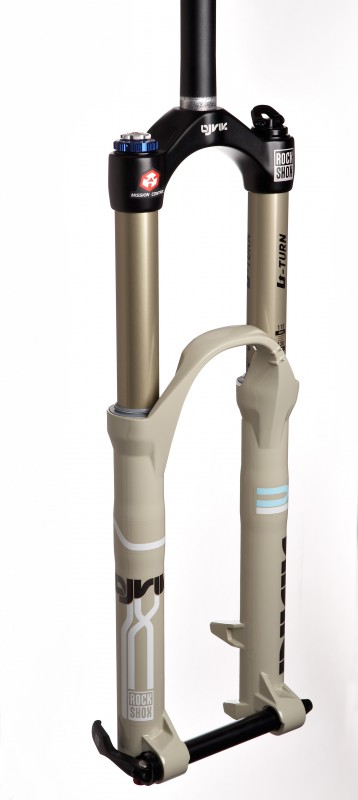

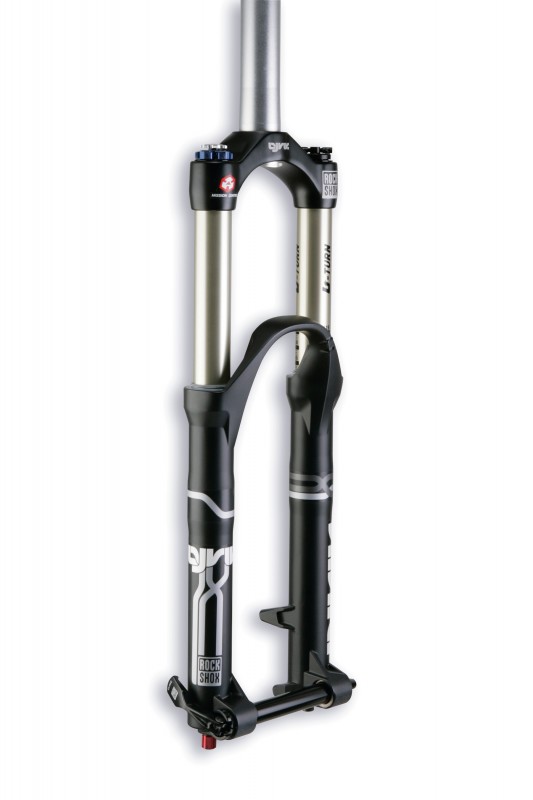

RockShox Lyrik DFR U-Turn
RockShox Lyrik DFR U-Turn
(MSRP $970)
—
We awoke Sunday morning to blue skies, yellow leaves and cool fall weather. What more could you ask for from a late October day? Our crew was eager to get to the parking lot and suit up so that they could show us the trails that they love to rip on all summer long.
Specifications Compare to other Forks
| Release Date | 2009 | |
|---|---|---|
| Price | $970 | |
| Weight | 2499.29 g | |
| Color Options | Black, Diffusion Black, Diffusion Silver, White | |
| Travel | 115-160 mm |
Travel - refers to the distance the wheel can move in respect to the frame. Typically measured in millimeters, most forks range from 80 to 203 mm of travel
|
| Spring | Coil | |
| Crown | Single | |
| Body Type | Magnesium, Maxle 360 20mm axle, post disc mount | |
| Rebound | External Rebound |
Rebound - is how quick your fork returns to a fully extended position after being compressed. Almost all after-market forks feature external rebound adjustment for easy fine tuning.
|
| Stanchion material | 35mm, 7000 series striaght wall Aluminum, low friction anodized | |
| Steer Tube | 1.125 | |
| Damping | DFR (Dual Flow Rebound) |
Damping - The process of absorbing the energy of impacts transmitted through the forks or rear shock during the compression stroke, and absorbing the energy of the spring during the rebound stroke.
|
| DropOut Options | Maxle | |
| Compression | no adjustment |
Compression - This is the damping circuit that absorbs the compression energy force on the damper. Compression damping is used to adjust how quickly a fork or rear shock compresses when hitting a bump, and is adjustable on some products. When compression damping is too soft, this condition allows most of the available travel to be used without attaining control of the wheel. When it's adjusted too firmly, the wheel will jump or "dance" about when hitting small bumps, again failing to gain control of the wheel.
|
