Specifications
|
|
Price
|
$2200
|
|
|
Travel |
190mm |
|
|
Rear Shock |
Fox Van R coil piggy back, 8.5x2.5", rebound adj., S:400, M:450, L:500 |
|
|
Fork |
RockShox Domain 302, 180mm travel, coil spring, external rebound adj., 20mm thru-axle w/ Maxle 360, 1-1/8" to 1.5" tapered alloy steerer tube |
|
|
Headset |
1-1/8" to 1.5" Threadless, alloy, cartridge bearing |
|
|
Cassette |
Shimano HG50, 9-speed, 11-34t |
|
|
Crankarms |
Truvativ Hussefelt, 170mm |
|
|
Chainguide |
SBC chain guide |
|
|
Bottom Bracket |
Truvativ Howitzer XR, oversize sealed outboard cartridge bearing, 73mm shell |
|
|
Pedals |
Specialized Lo-Pro alloy |
|
|
Chain |
SRAM PC-971, 9-speed w/Power Link |
|
|
Rear Derailleur |
SRAM X-9, 9-speed, short cage |
|
|
Shifter Pods |
SRAM X-5, trigger, 9-speed |
|
|
Handlebar |
Specialized Big Hit rise bar, 31.8mm, 6 degree up, 9 degree backsweep, 680mm wide |
|
|
Stem |
Specialized Aggro stem, 35mm extension, OS 31.8, 4-bolt, forged |
|
|
Grips |
Specialized thin lock on grip, alloy bar ends |
|
|
Brakes |
Avid Juicy 4R, full hydraulic, tool-less reach adjust, metallic pads |
|
|
Hubs |
Specialized Hi-Lo disc, 20mm thru-axle, 36h. Rear: Specialized disc, 135mm, machined flange, sealed cartridge bearing, bolt on, 36h |
|
|
Spokes |
2.0mm stainless, black, brass nipples |
|
|
Rim |
Specialized P-Disc, 32mm, 36h |
|
|
Tires |
Specialized Clutch SX 26x2.3", 60 TPI, aramid bead, cap ply, soft dual compound |
|
|
Seat |
Specialized Enduro, 8mm hollow Cr-Mo rails, SL foam |
|
|
Seatpost |
6061 butted alloy, two-bolt, 0 offset, 30.9x300mm |
|
|
Size:
|
S |
M |
L |
|
Frame Weight:
|
|
|
|
|
Bike Weight:
|
39.66 lbs |
39.66 lbs |
39.66 lbs |
|
Headtube Angle:
|
65.5 ° |
65.5 ° |
65.5 ° |
|
Seattube Angle:
|
71 ° |
71 ° |
71 ° |
|
Headtube Length:
|
120 mm |
120 mm |
120 mm |
|
Chainstay Length:
|
426 mm |
426 mm |
426 mm |
|
BB Height:
|
365 mm |
365 mm |
365 mm |
|
BB Width:
|
73 mm |
73 mm |
73 mm |
|
Seat Post Diameter:
|
30.9 " |
30.9 " |
30.9 " |
|
Front Derailleur Width:
|
|
|
|
|
HeadTube Diameter:
|
1.125 - 1.5 |
1.125 - 1.5 |
1.125 - 1.5 |
|
Top Tube Length:
|
535 mm |
554 mm |
576 mm |
|
WheelBase:
|
1162 mm |
1185 mm |
1207 mm |
|
Standover Height:
|
758 mm |
763 mm |
750 mm |
|

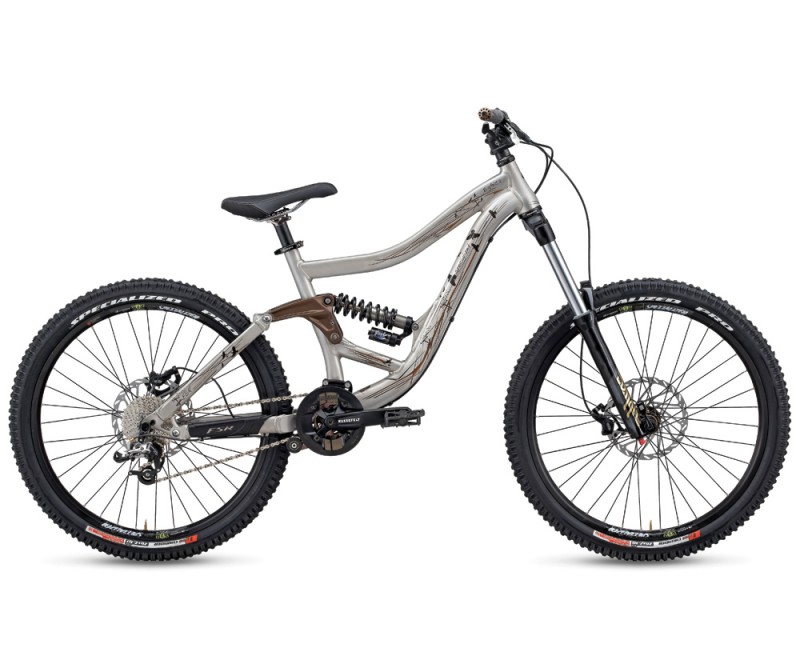

Specialized BigHit FSR II (MSRP $2200) - A TOP-DOLLAR RIDE AT AN ENTRY-LEVEL PRICE. Borrowing generously from our Demo technology, the new Big Hit lives up to its name on punishing terrain with a stout frame and 6.75 to 7.5 inches of travel. The new design with lower standover and more seatpost adjustment makes this bomb-proof ride even more accessible to a larger range of riders.
Specialized Aggro stem features an oversized diameter and four-bolt clamp for extra durability.
Avid Juicy 4R hydraulic brakes feature 203mm rotors for added stopping power. Metallic pads work dependably in any situation and have superior durability. Juicy 4R levers are ergonomic for added comfort and feature a tool-free reach adjustment
A Fox Vanilla R coil shock custom-tuned for the BigHit's FSR telemetry. External rebound adjust prevents bucking after big hits and large oil volume guarantees consistent performance even on long runs.
Rock Shox Domain 302 fork features 180mm of coil-sprung travel for buttery bump absorption. 20mm Maxle thru-axle boosts steering precision and allows tool-free removal.
SRAM X-9 rear derailleur guarantees precise shifting with minimum effort. 6061 Aluminum construction improves stiffness for quicker shifts.
Angles are based on LOW BB setting.
