Specifications
|
|
Price
|
$3700 |
|
|
Travel |
208mm |
|
|
Rear Shock |
Fox DHX 4.0 coil 8.75x2.75", ProPedal and rebound adj., bottom out control and IFP pressure, S:450, M:500, L:550 |
|
|
Fork |
RockShox Boxxer Race, 203mm travel, motion control damper, alloy steerer, external compression and rebound adj., 20mm maxle DH thru-axle |
|
|
Headset |
1-1/8" Threadless, 13mm insertion alloy cups with OS lower cartridge and bearing |
|
|
Cassette |
SRAM PG-970, 12-26t |
|
|
Crankarms |
Truvativ Hussefelt, 170mm |
|
|
Chainguide |
Gamut P-30 chain guide |
|
|
Bottom Bracket |
Truvativ Howitzer XR, oversize sealed outboard cartridge bearing, 73mm shell |
|
|
Pedals |
Specialized Lo-Pro alloy |
|
|
Chain |
SRAM PC-971, 9-speed w/Power Link |
|
|
Rear Derailleur |
SRAM X-9, 9-speed, short cage |
|
|
Shifter Pods |
SRAM X-7, trigger, 9-speed |
|
|
Handlebar |
Specialized Demo rise bar, 6066 alloy, 31.8mm, 6 degree up, 9 degree backsweep, 680mm wide |
|
|
Stem |
Specialized Aggro stem, 35mm extension, OS 31.8, 4-bolt, forged |
|
|
Grips |
Specialized lock on grip, alloy bar ends |
|
|
Brakes |
Custom Avid Elixir R hydraulic disc, reach adjust, metallic pads |
|
|
Hubs |
Specialized Hi-Lo disc, 20mm thru-axle, 32h. Rear: Specialized thru axle 135mm, hollow 10mm Cr-Mo axle w/ RD guard |
|
|
Spokes |
DT Swiss Champion 2.0mm stainless, brass nipples |
|
|
Rim |
Custom DT Swiss F550, 30mm, 32h |
|
|
Tires |
Specialized Chunder SX 26x2.3", 60 TPI, aramid bead, cap ply, soft dual compound |
|
|
Seat |
Specialized Enduro, 8mm hollow Cr-Mo rails, SL foam |
|
|
Seatpost |
6061 butted alloy, two bolt setback, 30.9x300mm |
|
|
Size:
|
S |
M |
L |
|
Frame Weight:
|
|
|
|
|
Bike Weight:
|
40.76 lbs |
40.76 lbs |
40.76 lbs |
|
Headtube Angle:
|
64 ° |
64 ° |
64 ° |
|
Seattube Angle:
|
75 ° |
75 ° |
75 ° |
|
Headtube Length:
|
120 mm |
120 mm |
120 mm |
|
Chainstay Length:
|
421 mm |
421 mm |
421 mm |
|
BB Height:
|
368 mm |
368 mm |
368 mm |
|
BB Width:
|
73 mm |
73 mm |
73 mm |
|
Seat Post Diameter:
|
30.9 " |
30.9 " |
30.9 " |
|
Front Derailleur Width:
|
|
|
|
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
520 mm |
540 mm |
554 mm |
|
WheelBase:
|
1168 mm |
1196 mm |
1213 mm |
|
Standover Height:
|
754 mm |
759 mm |
769 mm |
|

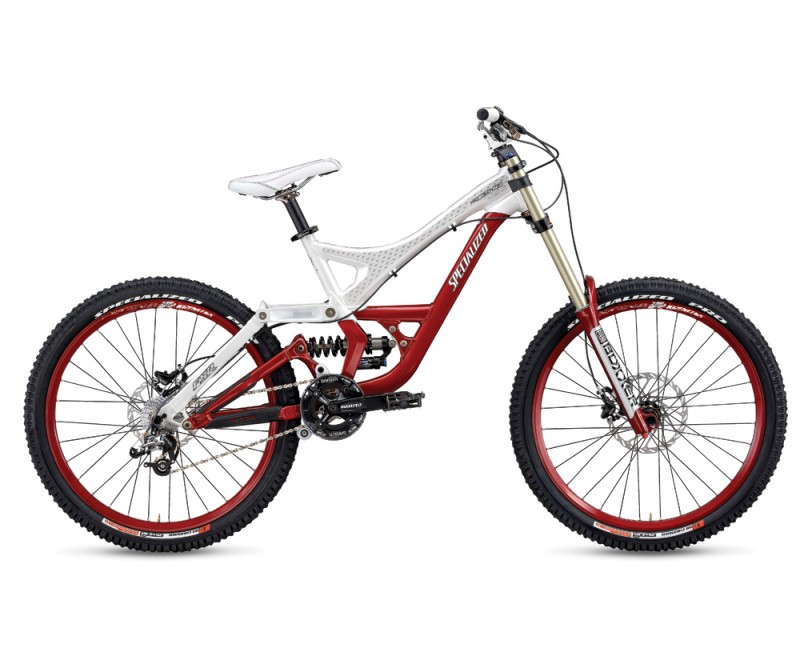

Specialized Demo 8 (MSRP $3700) - BUILT FOR STEEP TRAILS AND BIG AIR, our Demo laughs in the face of ruthless terrain with 7 and 8 inches of generous travel. Its top-of-the line Fox components, stable geometry with low central mass and insanely strong double ORE down tubes are competition-proven to withstand the most extreme abuse.
Custom Avid Elixir R brakes feature full hydraulic calipers, metallic pads and a big 203mm rotor in front and 185mm in back for awesome control in fast and steep situations. Elixir R levers have a tool-free reach adjustment feature for enhanced comfort.
8.2-inch travel M5 manipulated alloy frame features a cold-forged head tube, seat tube, bottom bracket shell, linkage points and center rib cage for off-the-charts durability. Adjustable geometry for situation-specific tuning.
32-hole DT Swiss F550 rims are custom for Specialized. 32mm width, eyelets and a sleeved joint bump up durability. DT Swisss Champion stainless spokes provide a true build and long-haul durability.
Specialized Hi-Lo hub features variable sized flanges for a perfectly tensioned, ultra durable wheel. A 20mm thru-axle on the front improves stiffness and steering precision, while the 10mm chromoly axle in back increases durability.
World-beating Boxxer Race fork with 203mm of plush, coil-sprung travel. Motion Control damping and external compression and rebound adjust help riders dial in performance for any course.
Angles are based on Low BB Setting.
