Specialized SX Trail Frame

8 Reviews for SX Trail Frame

  • + 1
flag
 oooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooo
[Reply]
  • + 1
flag
 It's awesome frame, mine is set up with SXTrail wheelset, Shimano SLX drive train.
I've been taking this bike to go uphills and doing some light downhills as well..... it always keeps me amazed with its capability.
Definately want to buy another one if mine has come to replace.
[Reply]
  • + 1
flag
 I love mine, they arent that heavy meaning they can't go up hill, but the travel feels endless and plush on the way back down the hill. Just a pity about the old one having stupid length shocks on.
[Reply]
  • + 1
flag
 Strong Frame, Easy to throw around. SUPER fast and fun at the bike park. Bike has perfect geo, so you can still throw some trick in.
[Reply]
  • + 1
flag Plus
 My 2008 SX2 frame done 2500 mile over 2 years and only needed 2 cartridge bearings replaced. Only sold due to XL size being HUGE!. Suit people 6ft 6 up to 7ft!.
[Reply]
  • + 1
flag
 Sick do everything frame. Climbs up and kills it on the way down. Pretty pedal friendly for having 170mm of travel. Can also be built up nice and light.
[Reply]
  • + 1
flag
 i loved the 2008 frame and colours, not to keen on the frame shape until i see one for real, but im sure its an insane frame, love the colour to !!!!!!!!!!!!!!!1
[Reply]
  • + 1
flag
 the old one is nicer, more "big bike" feeling.
but awesome frame!
[Reply]
Login or Sign Up to write a review.
You must login to Pinkbike.
Don't have an account? Sign up

Join Pinkbike  Login
Avg: 5 (8 votes)
Write a Review

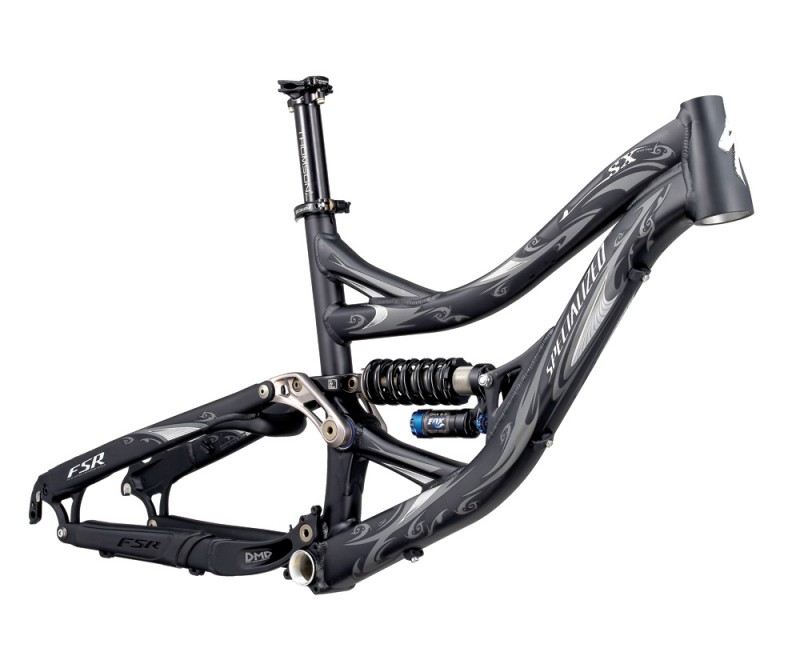

Specialized SX Trail Frame (MSRP $1850) — If the trail ride turns into a freeride, the new for '09 SX Trail with 170mm of FSR travel shows no mercy when it comes to triple overhead drops and backcountry stunts.

Claw knows it: The SX Trail M5 Premium Aluminum frame delivers. ORE top/down tube, forged head tube and full cartridge bearings. Integrated ISCG mount. 170mm travel. Not for the meek.

The standard in coils: Fox DHX 5.0 rear shock with full adjustability - rebound, ProPedal and bottom-out control.

Specifications Compare to other DH/Freeride Bikes

Price $1,850
Travel 170mm
Rear Shock Fox DHX 5.0 rear shock with full adjustability - rebound, ProPedal and bottom-out control.
Seatpost Thomson Elite Straight w/ 12 degree clamp, 367mm

Dimensions

Size S M L
Frame Weight 10.16 lbs 10.16 lbs 10.16 lbs
Bike Weight
Headtube Angle 66 ° 66 ° 66 °
Seattube Angle 70.5 ° 70.5 ° 70.5 °
Headtube Length 120 mm 120 mm 120 mm
Chainstay Length 419 mm 419 mm 419 mm
BB Height 356 mm 356 mm 356 mm
BB Width
Seat Post Diameter
Front Derailleur Width
HeadTube Diameter 1.125 - 1.5 1.125 - 1.5 1.125 - 1.5
Top Tube Length 532 mm 553 mm 581 mm
WheelBase 1149 mm 1167 mm 1190 mm
Standover Height 700 mm 699 mm 735 mm
