Specifications
|
|
Price
|
$3300 |
|
|
Travel |
170mm |
|
|
Rear Shock |
Fox DHX 4.0 coil 7.875x2.25", rebound adj. and ProPedal, S; 500, M: 550, L: 600 springs |
|
|
Fork |
RockShox Domain 318 coil spring. 160mm, adj comp and reb, 1 1/8 to 1.5" tapered alloy steerer |
|
|
Headset |
1-1/8" to 1.5" Threadless, alloy, cartridge bearing |
|
|
Cassette |
Shimano HG61, 9-speed, 11-34t |
|
|
Crankarms |
Truvativ Stylo, 170mm, |
|
|
Chainguide |
Gamut Shift chain guide |
|
|
Bottom Bracket |
Truvativ Stylo, outboard bearing |
|
|
Pedals |
Specialized Lo-Pro alloy |
|
|
Chain |
SRAM PC-971, 9-speed w/Power Link |
|
|
Rear Derailleur |
SRAM X-9, 9-speed, mid cage |
|
|
Front Derailleur |
Shimano M660 SLX, DMD, top swing, dual pull |
|
|
Shifter Pods |
SRAM X-5, trigger, 9-speed |
|
|
Handlebar |
Specialized Enduro mid rise bar, 6066 alloy, 31.8mm, 6 degree up, 9 degree backsweep, 660mm wide |
|
|
Stem |
Specialized Aggro stem, 35mm extension, OS 31.8, 4-bolt, forged |
|
|
Grips |
Specialized thin lock on grip, alloy bar ends |
|
|
Brakes |
Custom Avid Elixir R, hydraulic disc, reach adjust, metallic pads |
|
|
Hubs |
Specialized Hi-Lo disc, 20mm thru axle, 32h. Rear: Specialized bolt on, 135mm, hollow 10mm Cr-Mo axle w/ RD guard |
|
|
Spokes |
DT Swiss Champion 2.0mm stainless, black, brass nipples |
|
|
Rim |
Custom DT Swiss F550, 30mm, 32h |
|
|
Tires |
Specialized Clutch SX 26x2.3", 60 TPI, aramid bead, cap ply, soft dual compound |
|
|
Seat |
Specialized Enduro, 8mm Cr-Mo rails, SL foam |
|
|
Seatpost |
6061 alloy, black, 30.9 x 300mm |
|
|
Size:
|
S |
M |
L |
|
Frame Weight:
|
|
|
|
|
Bike Weight:
|
37.68 lbs |
37.68 lbs |
37.68 lbs |
|
Headtube Angle:
|
66 ° |
66 ° |
66 ° |
|
Seattube Angle:
|
70.5 ° |
70.5 ° |
70.5 ° |
|
Headtube Length:
|
120 mm |
120 mm |
120 mm |
|
Chainstay Length:
|
419 mm |
419 mm |
419 mm |
|
BB Height:
|
356 mm |
356 mm |
356 mm |
|
BB Width:
|
|
|
|
|
Seat Post Diameter:
|
30.9 " |
30.9 " |
30.9 " |
|
Front Derailleur Width:
|
|
|
|
|
HeadTube Diameter:
|
1.125 - 1.5 |
1.125 - 1.5 |
1.125 - 1.5 |
|
Top Tube Length:
|
532 mm |
553 mm |
581 mm |
|
WheelBase:
|
1149 mm |
1167 mm |
1190 mm |
|
Standover Height:
|
700 mm |
699 mm |
735 mm |
|

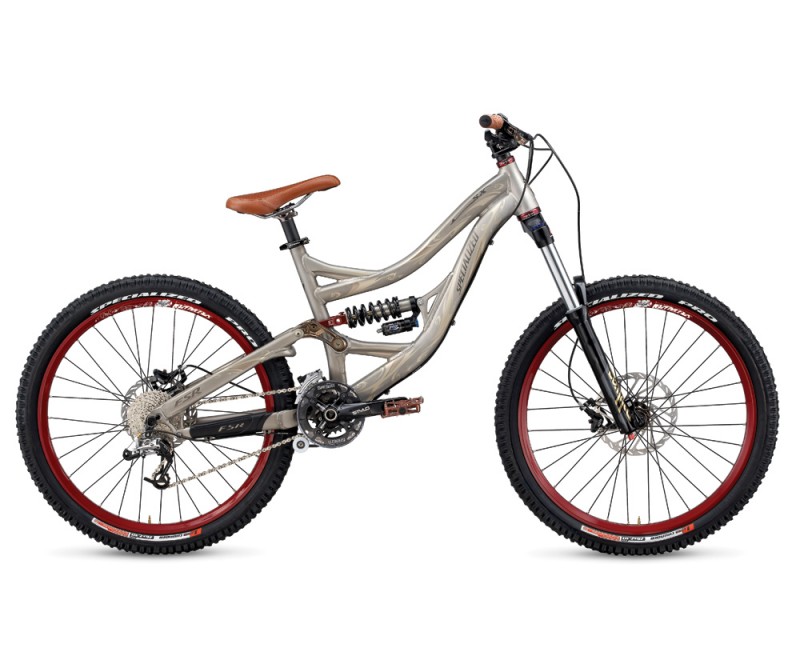

Specialized SX Trail I (MSRP $3300) - If the trail ride turns into a freeride, the new for '09 SX Trail with 170mm of FSR travel shows no mercy when it comes to triple overhead drops and backcountry stunts.
Claw knows it: The SX Trail M5 Premium Aluminum frame delivers. ORE top/down tube, forged head tube and full cartridge bearings. Integrated ISCG mount. 170mm travel. Not for the meek.
New, custom-tuned Avid Elixir hydraulic discs and SL levers with reach adjust, metallic pads and 200mm/185mm rotors for the control you need at high speeds.
Specialized Clutch SX tread offers a tough cap-ply construction and soft dual compound for confidence in the corners and the loose stuff.
Stiff Truvativ Stylo crankset surrounded by Gamut Shift chain guide. At least your chain is under control, heh?
Stout, maybe death-proof, the custom DT Swiss F550 rims span a wide 30mm for strength and improved tire contact.
