Specifications
|
|
Price
|
$4800 |
|
|
Travel |
170mm |
|
|
Rear Shock |
Fox DHX 5.0 coil 7.875x2.25", rebound adj., ProPedal, and bottom out control, S; 500, M: 550, L: 600 springs |
|
|
Fork |
Fox 36 Van RC2, 160mm travel, low/high speed compression and rebound adj., 20mm thru-axle, alloy steerer |
|
|
Headset |
1-1/8" to 1.5" Threadless, alloy, cartridge bearing |
|
|
Cassette |
Shimano HG61, 9-speed, 11-34t |
|
|
Crankarms |
Truvativ Stylo, 170mm |
|
|
Chainguide |
Gamut Shift chain guide |
|
|
Bottom Bracket |
Truvativ Stylo, outboard bearing |
|
|
Pedals |
Specialized Lo-Pro Mag, magnesium platform, 9/16" oversized heat treated Cr-Mo axle, sealed cartridge bearing, removable allen bolt pins |
|
|
Chain |
SRAM PC-971, 9-speed w/Power Link |
|
|
Rear Derailleur |
SRAM X-0, 9-speed, mid cage |
|
|
Front Derailleur |
Shimano M660 SLX, DMD, top swing, dual pull |
|
|
Shifter Pods |
SRAM X-9, trigger |
|
|
Handlebar |
Specialized Enduro mid rise bar, 2014 alloy, 31.8mm, 6 degree up, 9 degree backsweep, 660mm wide |
|
|
Stem |
Specialized Aggro stem, 35mm extension, OS 31.8, 4-bolt, forged |
|
|
Grips |
Specialized thin lock on grip, alloy bar ends |
|
|
Brakes |
Custom Avid Elixir R Carbon, hydraulic disc, carbon lever blade, reach adjust, metallic pads |
|
|
Hubs |
Specialized Hi-Lo disc, 20mm thru axle, 32h. Rear: Specialized bolt on, 135mm, hollow 10mm Cr-Mo axle w/ RD guard |
|
|
Spokes |
DT Swiss Competition 2.0/1.8/2.0mm stainless, black, alloy nipples |
|
|
Rim |
Custom DT Swiss F550, 30mm, 32h |
|
|
Tires |
Specialized Clutch SX 26x2.3", 60 TPI, aramid bead, cap ply, soft dual compound |
|
|
Seat |
Specialized Enduro, 8mm Cr-Mo rails, SL foam |
|
|
Seatpost |
Thomson Elite Straight w/ 12 degree clamp, 367mm |
|
|
Size:
|
S |
M |
L |
|
Frame Weight:
|
|
|
|
|
Bike Weight:
|
36.48 lbs |
36.48 lbs |
36.48 lbs |
|
Headtube Angle:
|
66 ° |
66 ° |
66 ° |
|
Seattube Angle:
|
70.5 ° |
70.5 ° |
70.5 ° |
|
Headtube Length:
|
120 mm |
120 mm |
120 mm |
|
Chainstay Length:
|
419 mm |
419 mm |
419 mm |
|
BB Height:
|
356 mm |
356 mm |
356 mm |
|
BB Width:
|
|
|
|
|
Seat Post Diameter:
|
|
|
|
|
Front Derailleur Width:
|
|
|
|
|
HeadTube Diameter:
|
1.125 - 1.5 |
1.125 - 1.5 |
1.125 - 1.5 |
|
Top Tube Length:
|
532 mm |
553 mm |
581 mm |
|
WheelBase:
|
1149 mm |
1167 mm |
1190 mm |
|
Standover Height:
|
700 mm |
699 mm |
735 mm |
|

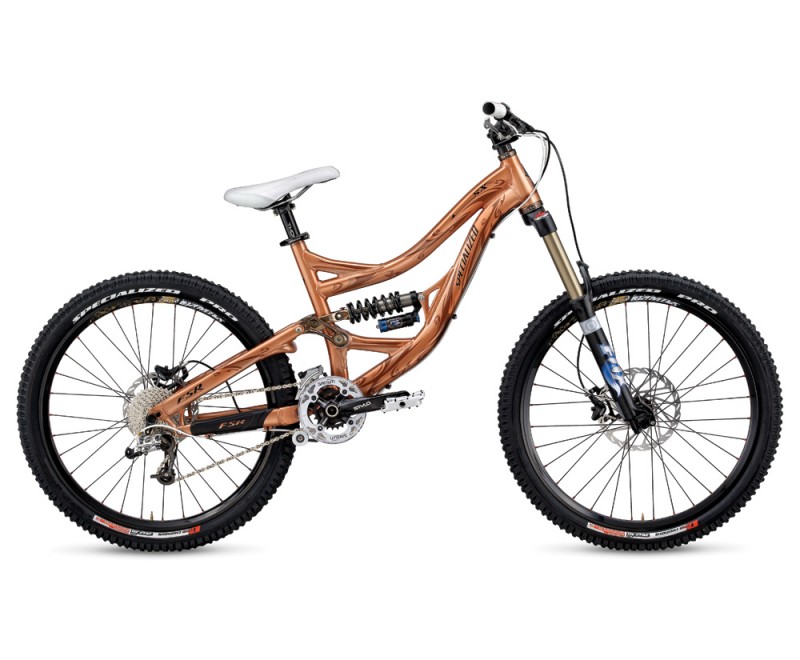

Specialized SX Trail II (MSRP $4800) - If the trail ride turns into a freeride, the new for '09 SX Trail with 170mm of FSR travel shows no mercy when it comes to triple overhead drops and back country stunts.
Claw knows it: The SX Trail M5 Premium Aluminum frame delivers. ORE top/down tube, forged head tube and full cartridge bearings. Integrated ISCG mount. 170mm travel. Not for the meek.
Fox 36 Vanilla RC2 moves through 160mm of travel any way you want: low/high compression, rebound adjust and lockout. A 20mm thru axle keeps it straight, and an alloy steerer keeps it light.
Lightweight, tough and grippy Specialized Lo-Pro Mag pedals spin on oversized, heat-treated Cr-Mo axles with sealed bearings and removable pins. Win friendly, not shin friendly.
New, custom-tuned Avid Elixir hydraulic discs and SL carbon levers with reach adjust, metallic pads and 203mm rotors for high-speed control.
Specialized Clutch SX tread offers a tough cap-ply construction and soft dual compound for confidence in the corners and the loose stuff.
Stiff Truvativ Stylo crankset surrounded by Gamut Shift chain guide. At least your chain is under control, heh?
Stout, maybe death-proof, the custom DT Swiss F550 rims span a wide 30mm wide for strength and improved tire contact. Laced with DT Swiss Competition black spokes to Specialized Hi-Lo disc sealed bearing hubs: 20mm front, bolt-on rear.
The standard in coils: Fox DHX 5.0 rear shock with full adjustability - rebound, ProPedal and bottom-out control.
