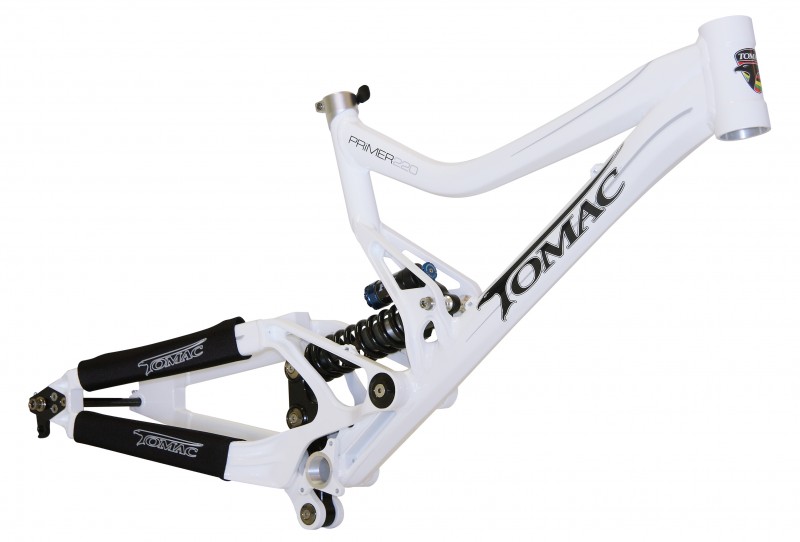

Tomac Primer 220 Frame

Specifications
Release Date 2009
Price $2349
Travel 220mm
Rear Shock Fox DHX 5.0 coil, 9.5 x 3
Compare to other DH/Freeride Bikes
Size: S M L
Frame Weight: 11.5 lbs 11.5 lbs 11.5 lbs
Bike Weight:
Headtube Angle: 64 ° 64 ° 64 °
Seattube Angle: 62 ° 62 ° 62 °
Headtube Length: 119.88 mm 119.88 mm 119.88 mm
Chainstay Length: 439.92 mm 439.92 mm 439.92 mm
BB Height: 376.93 mm 376.93 mm 376.93 mm
BB Width: 83 mm 83 mm 83 mm
Seat Post Diameter:
Front Derailleur Width:
HeadTube Diameter: 1.5 1.5 1.5
Top Tube Length: 579.88 mm 599.94 mm 619.76 mm
WheelBase: 1151.12 mm 1170.94 mm 1192.78 mm
Standover Height: 796 mm 796 mm 796 mm
Tomac Primer 220 Frame (MSRP $2349) - 220mm rear travel, designed for a 203mm travel fork * 11.5 pound (5215g) frame weight for medium size * 7050 aluminum front triangle and rear end with CNC aluminum links and dropouts * Single pivot linkage design with oversized 83mm bottom bracket shell * Custom hex axle (included with frame) * Low leverage 9.5 x 3 inch stroke rear shock * Oversized bearings * Low stand over height * Available in small, medium and large
