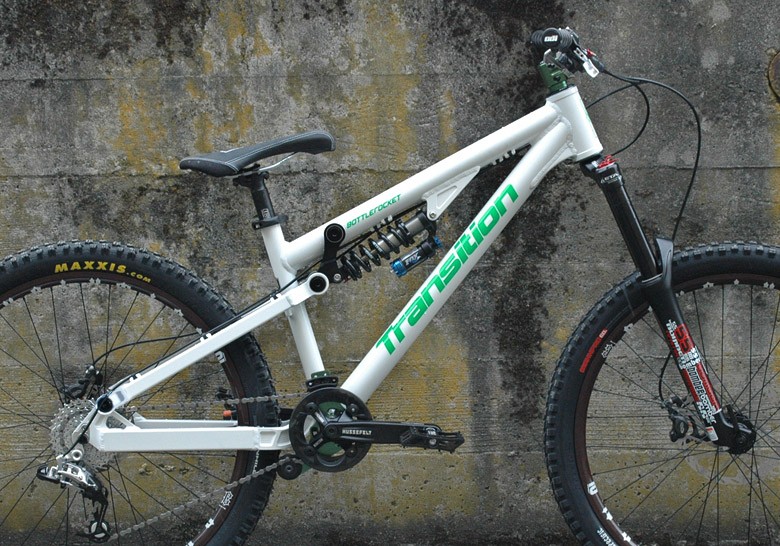

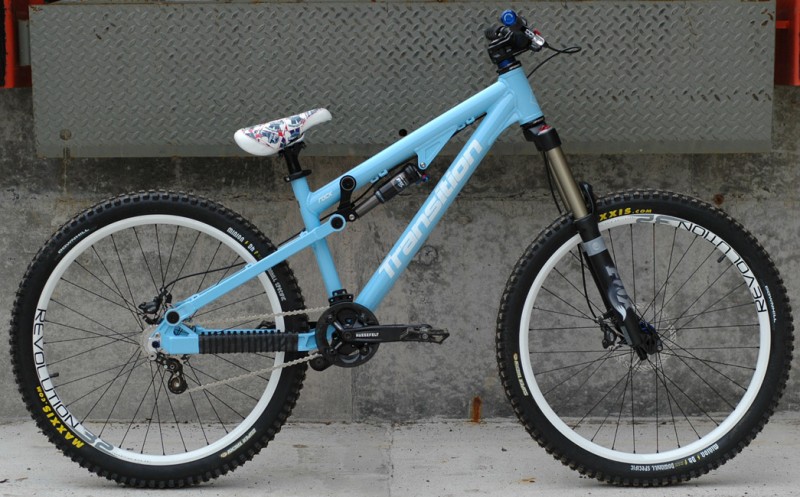

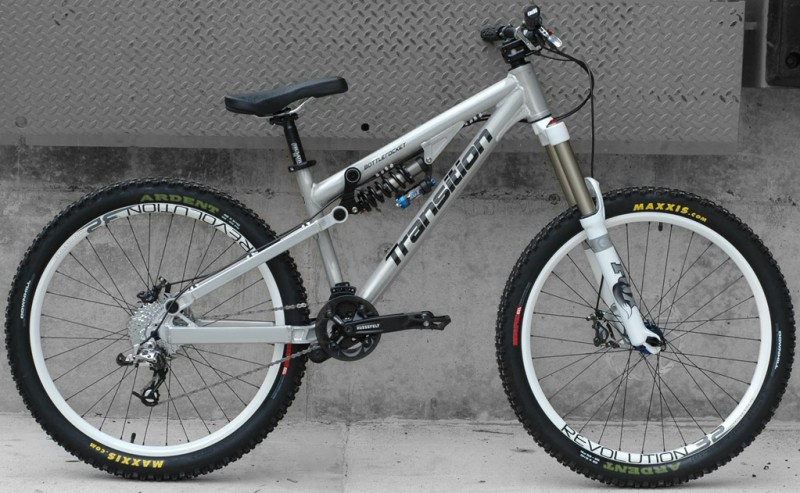

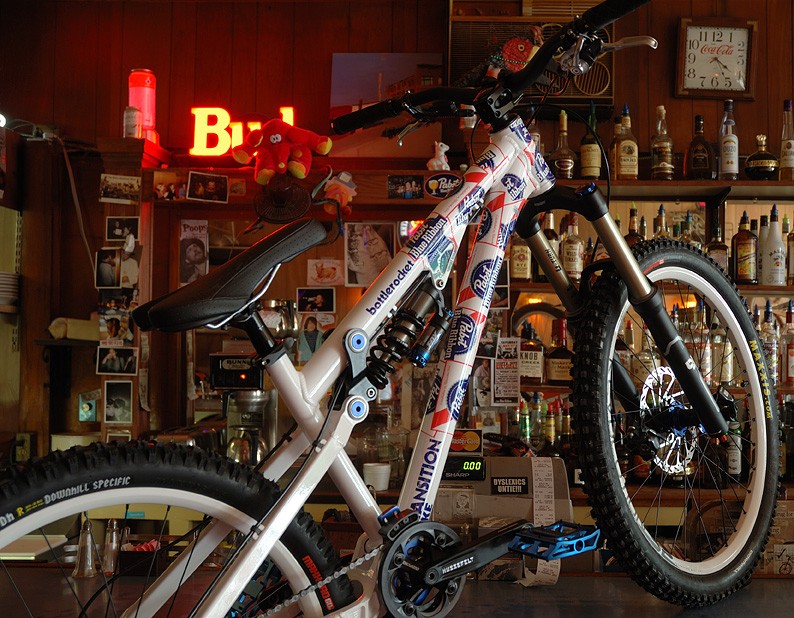

Transition BottleRocket

Specifications
Price $3722
Travel 140mm (5.55")
Rear Shock Fox DHX 5.0 Coil or DHX 5.0 Air
Fork Fox 36 Float RC2
Headset FSA Orbit Xtreme Pro or Z1.5R
Cassette SRAM PG 950 11 - 32
Crankarms Truvativ Hussefelt 170mm
Chainguide TBC Single Ring Guide
Bottom Bracket Truvativ GigaPipe Team
Pedals TBC Stepdown
Chain KMC Z9000
Rear Derailleur SRAM X9
Shifter Pods SRAM X9
Handlebar Truvativ Hussefelt 30mm rise
Stem Truvativ Holzfeller 40mm
Grips ODI Cross Trainer X Lock-on
Brakes Avid Juicy 7
Wheelset TBC Revolution 32
Tires Maxxis Minion DH 2.5 60a
Seat TBC Park n Ride FR
Seatpost Truvativ XR Dual clamp

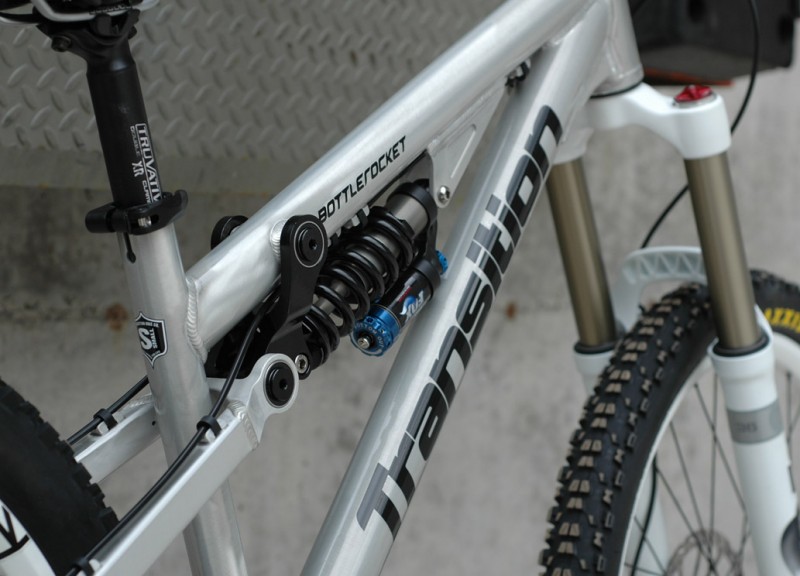

Transition BottleRocket (MSRP $3722) - The BottleRocket was designed as an answer to a new progression in trail building and freeriding. Trails are starting to look more like big mountain slopestyle parks with big gap doubles, wall rides and berms that emphasize style and flow. The mid travel of 5.5" is just enough for the big stuff without slowing you down and the frame is extremely tough to handle the abuse of bike parks like Whistler. The geometry is designed with a low bottom bracket, short chain stays and super sloped top tube to make this bike extremely agile and easy to throw around for tricks. The BottleRocket also features a one-piece CNC'd rocker that makes the rear end incredibly laterally stiff for cornering and pedaling hard. If you need a bike that can truly ride it all, the BottleRocket is the answer. FRAME FEATURES: 140mm (5.55") Rear Wheel Travel Fox DHX 5.0 Coil 7.875" x 2.25" or DHX 5.0 Air 7.875" x 2.25" 6000 Series Heat Treated Aluminum Sizes: Small (15"), Medium (15"), Large (15") Colors: Baby Blue, White, Raw Decals: Decal kit with 4 sets of decals in Black, White, Green and Red Frame Weight: 8.1 lbs (without rear shock) Complete Bike Weight Range: 38-43 lbs (Depending on Rear Shock and Fork) 1.5" headtube Compatible with up to 8" dual crown forks 73mm bottom bracket spacing Accepts up to 8" Rear Disc Brake Rotors Fits up to 2.5" rear tire 1 year defect warranty, Lifetime crash replacement BUILD SPECS: Shock Specs: 7.875 eye-to-eye x 2.25" stroke, Rear Pin 22.2mm x 8mm, Forward Pin 22.2mm x 8mm Bottom Bracket: Euro 73mm shell x 51mm chainline Headset: 1.5" (deep cup compatible) Seatpost: 30.0mm Seat Clamp: 34.9mm Front Derailleur: 34.9mm Clamp, Top-pull, (Top Swing Shimano or Low Mount SRAM) Rear Dropout Spacing: 135mm x 10mm Disc Brake Mount: International Standard Chain Guide Mounting: Standard ISCG Various build options available. Pricing for Freeride Single Ring spec with Fox DHX 5.0 Coil and Fox 36 Float RC2
