Products > Hubs > Transition Hubs > Revolution 20mm

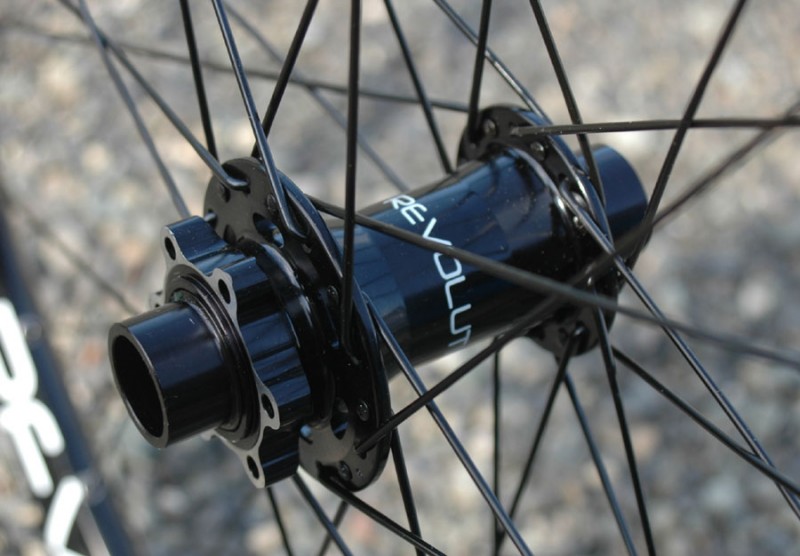

Transition Revolution 20mm

Specifications
Price $58
Color Options Black
Hub Bearings Sealed
Spacing 20mm x 110mm Spacing - most forks use a 20mm thru-axle (QR20), quick release/QR (9mm), or now, a 15mm hub. It is important to know which hub your fork needs as standard quick release hubs cannot be converted to use with a 20mm compatible fork. However, there are reducers for some hubs that can go from 20mm to standard QR. Rear hubs typically come in two sizes. The first is 150x12 and the second is 135x10. However, some bikes do use a 165mm hub and 135x12. It is important to know which rear hub is required on your bike so it will be compatible.
Front or Rear Front
Diameter 58mm
Compare to other Hubs
Transition Revolution 20mm (MSRP $58) - Our Revolution hubs are built with precision and simplicity. Large sealed bearings ensure the hubs roll smoothly and are easy to work on. Available in three configurations, 10 x 135mm 32 hole, 10 x 135mm 36 hole and 12 x 150mm 36 hole. Hub Features: 6061 Alloy CNC'd body All hubs come with Axle (10 x 135 Solid Axle with QR)(12 x 150mm hub comes with solid axle nutted) Disc compatible Sealed Bearings 3 Pawl system with 22 engagement points Colors: Black Flange Diameter: 58mm for all hubs 135mm Hub Center to Flange Right: 20.6mm, Left: 34.6mm 150mm Hub Center to Flange Right: 28mm, Left: 42mm 20mm Front Hub Center to Flange Right: 34mm, Left: 23mm
Resources
Stars Recommend This Product
