Products > DH/Freeride Bikes > Yeti DH/Freeride Bikes > 303R DH

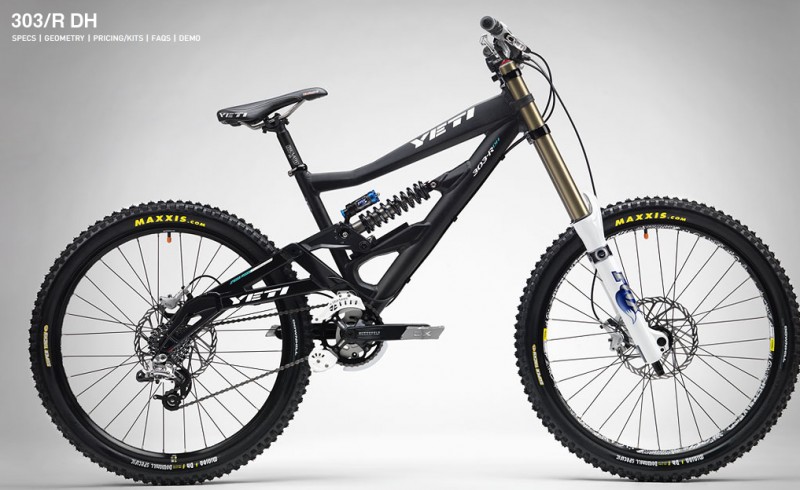

Yeti 303R DH

Specifications
Release Date 2009
Price $2570
Travel 203mm
Rear Shock Fox DHX 5.0
Fork Fox 40 RC2
Headset Cane Creek S-3
Cassette SRAM PG-970, 11-26
Crankarms Truvativ Hussefelt 38 teeth
Chainguide E Thirteen SRS
Chain SRAM
Rear Derailleur SRAM x-7
Shifter Pods SRAM x-7
Handlebar Truvativ Hussefelt
Stem Truvativ Hussefelt Stem 40mm
Grips ODI Hard Core
Brakes Avid Elixir 203mm
Wheelset Mavic Dee Tracks
Tires 2.5 Maxxis Minion DHF
Seat Yeti SDG
Seatpost Truvativ XR Double Clamp
Compare to other DH/Freeride Bikes
Size: SM MD LG
Frame Weight: 10.5 lbs 10.5 lbs 10.5 lbs
Bike Weight:
Headtube Angle: 65 ° 65 ° 65 °
Seattube Angle: 66 ° 66 ° 66 °
Headtube Length: 114.3 mm 114.3 mm 114.3 mm
Chainstay Length: 438.15 mm 438.15 mm 438.15 mm
BB Height: 363.22 mm 363.22 mm 363.22 mm
BB Width: 83 mm 83 mm 83 mm
Seat Post Diameter: 30.9 " 30.9 " 30.9 "
Front Derailleur Width:
HeadTube Diameter:
Top Tube Length: 571.5 mm 596.9 mm 622.3 mm
WheelBase: 1 130.3 mm 1 155.7 mm 1 181.1 mm
Standover Height: 762 mm 762 mm 762 mm
Yeti 303R DH (MSRP $2570) - The single linear rail controls the shock rate in a way that can't be done with links only. On the 3034-DH the linear rail coupled with a single pivot and rate links optimizes the shock rate, lateral stiffness of the frame and keeps the suspension linkage low and within the confines of the frame. This also nearly eliminates shock rotation which translates to longer shock life and increased suspension efficiency. In addition, the rail and link design offers the unique property in that the suspension is independent of the adjustable geometry. This means there will be no change in travel or shock rate as the head tube angle and bottom bracket height are adjusted. Price is frame only.
